Home >> Infiniti >> 2008 >> G37 Coupe V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals

Turn Signals

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

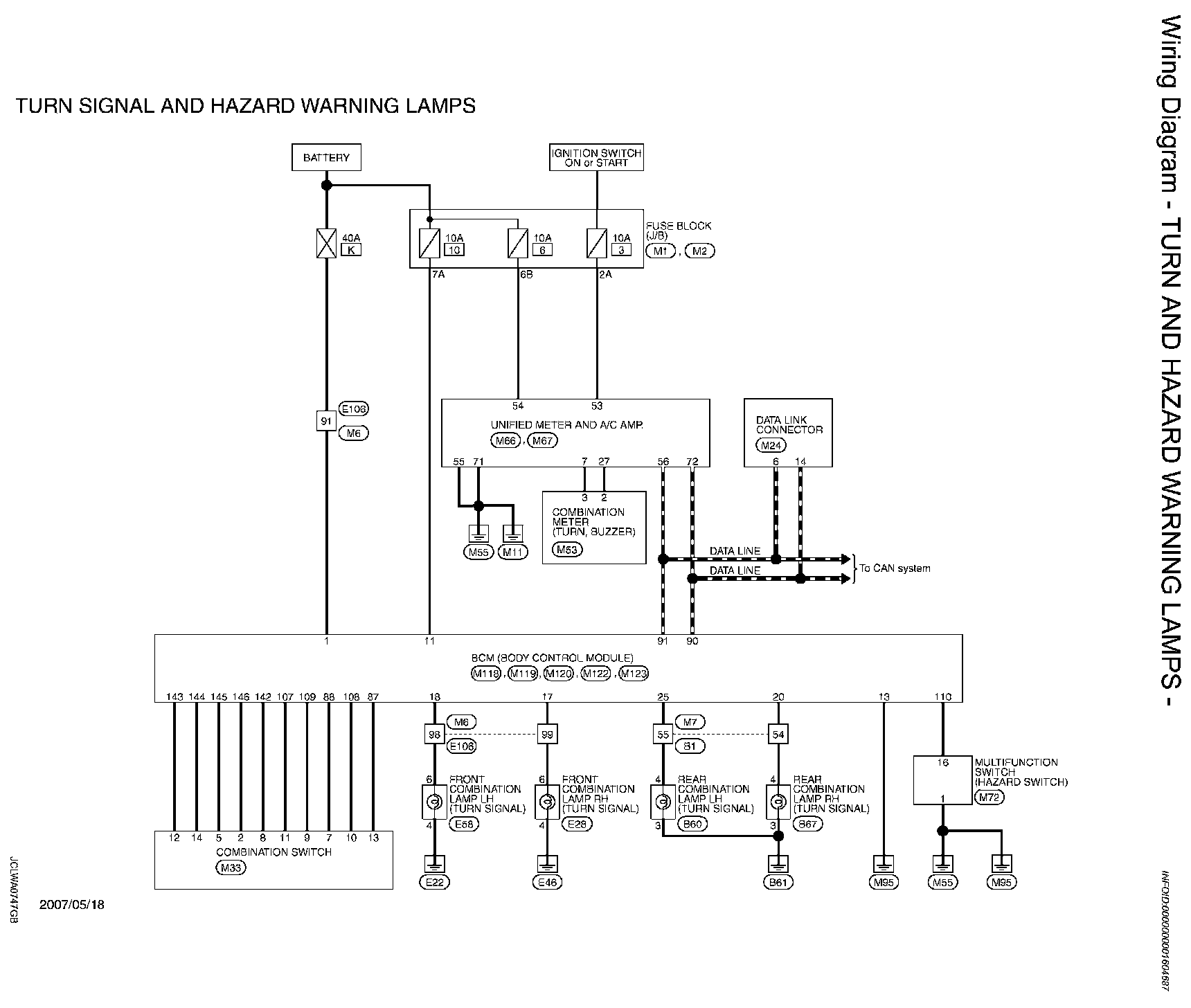

Wiring Diagram - TURN AND HAZARD WARNING LAMPS -

Wiring Diagram - Turn Signal Hazard Warning Lamps - Part 1:




Wiring Diagram - Turn Signal Hazard Warning Lamps - Part 2:




Wiring Diagram - Turn Signal Hazard Warning Lamps - Part 3:




Wiring Diagram - Turn Signal Hazard Warning Lamps - Part 4:
