Tilt and Telescopic Control System

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Wiring Diagram - TILT AND TELESCOPIC CONTROL SYSTEM -

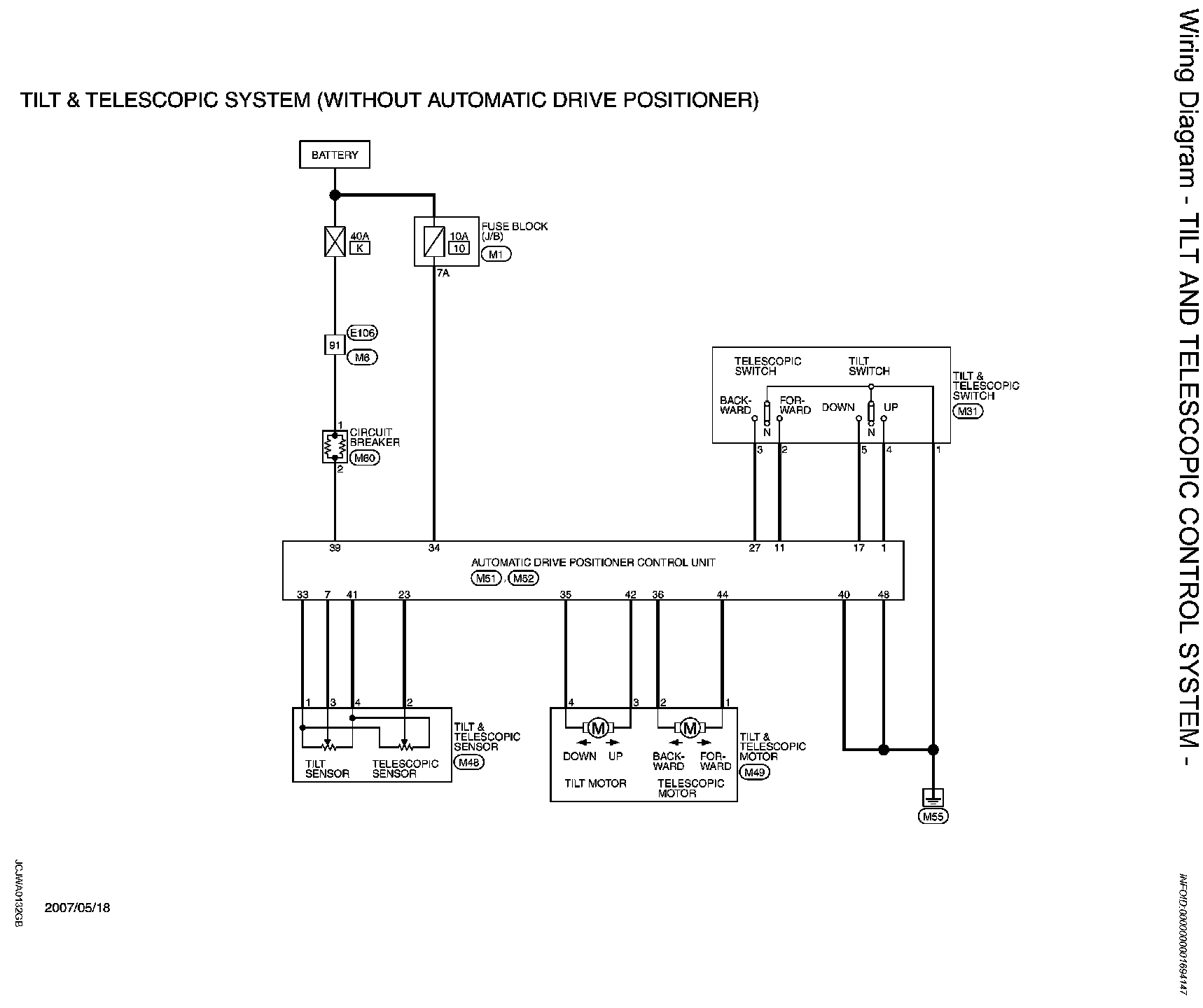

Wiring Diagram - Tilt And Telescopic Control System - Part 1:

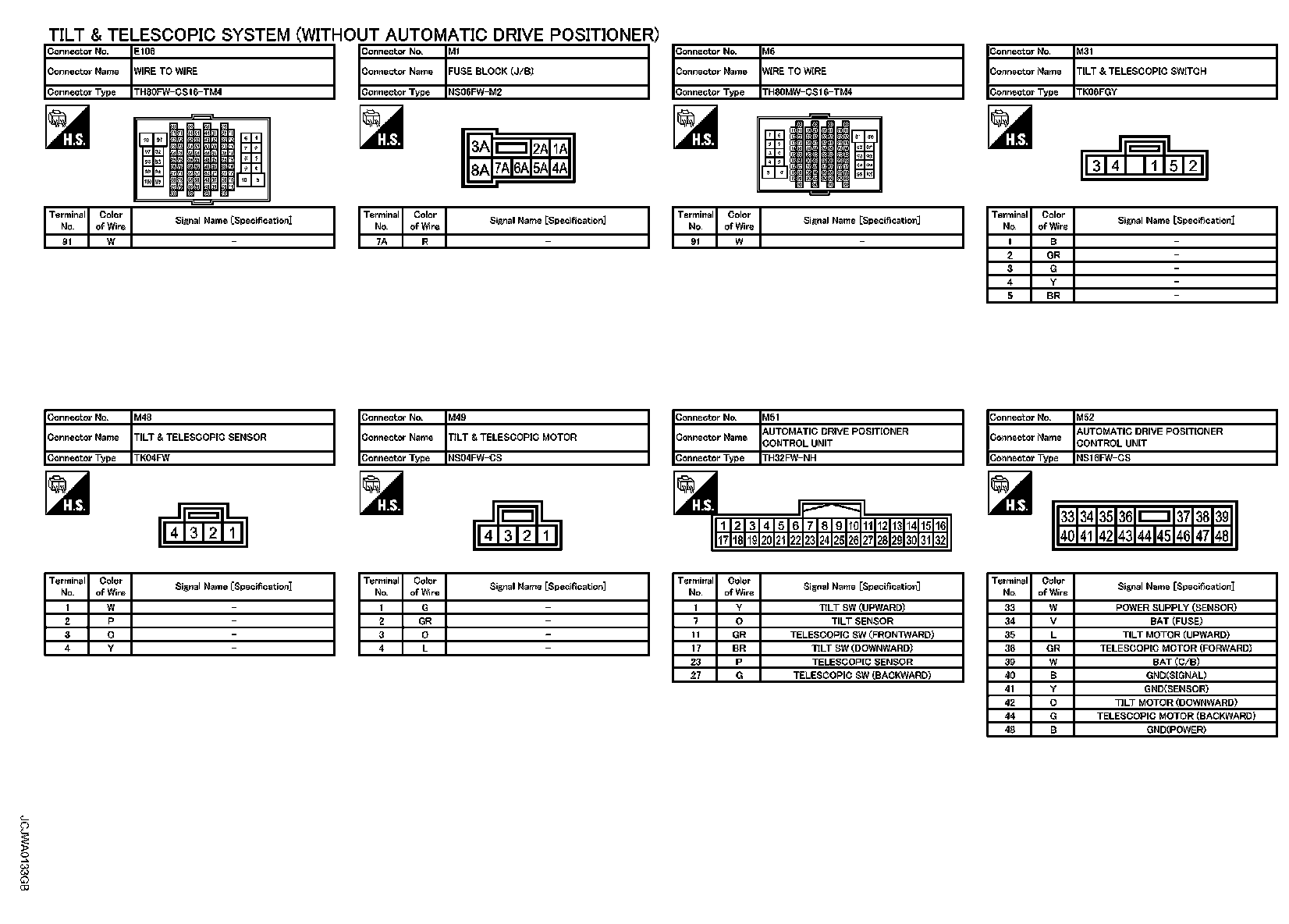

Wiring Diagram - Tilt And Telescopic Control System - Part 2:

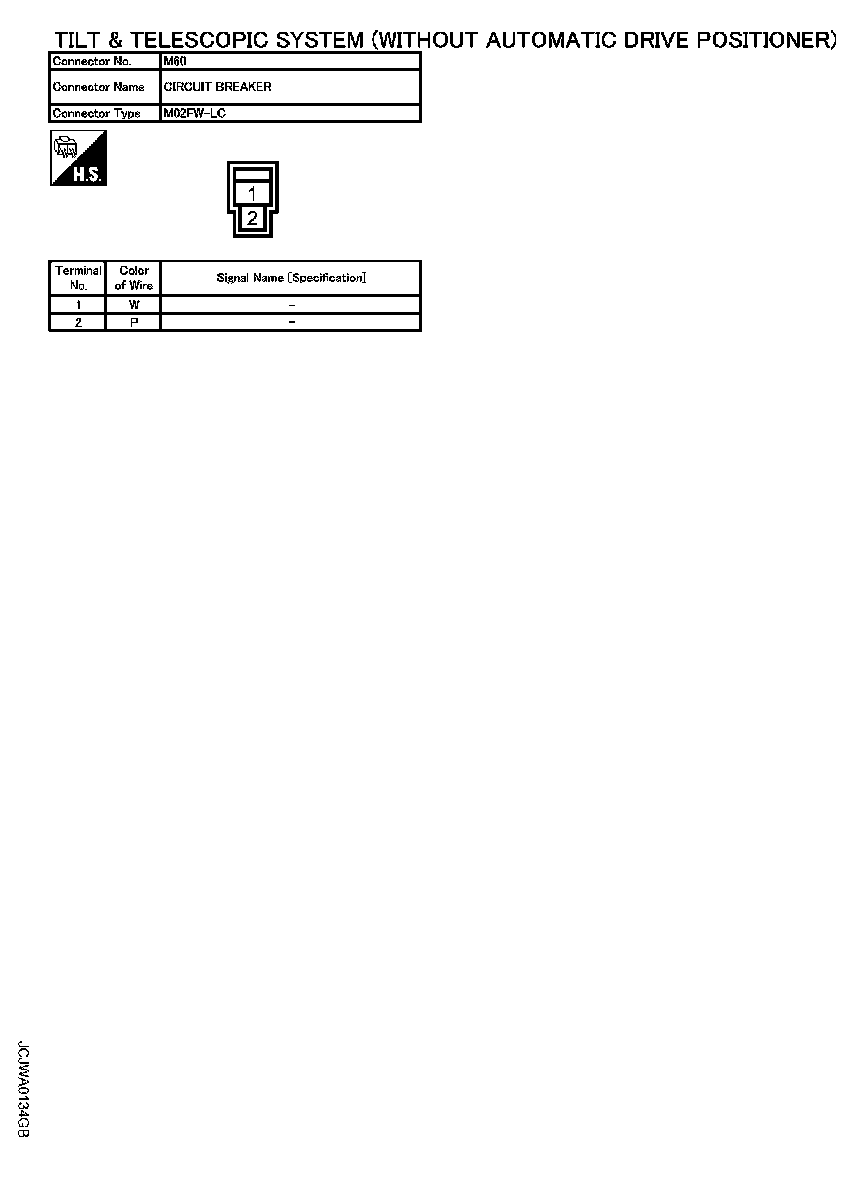

Wiring Diagram - Tilt And Telescopic Control System - Part 3:
