Without 4WAS

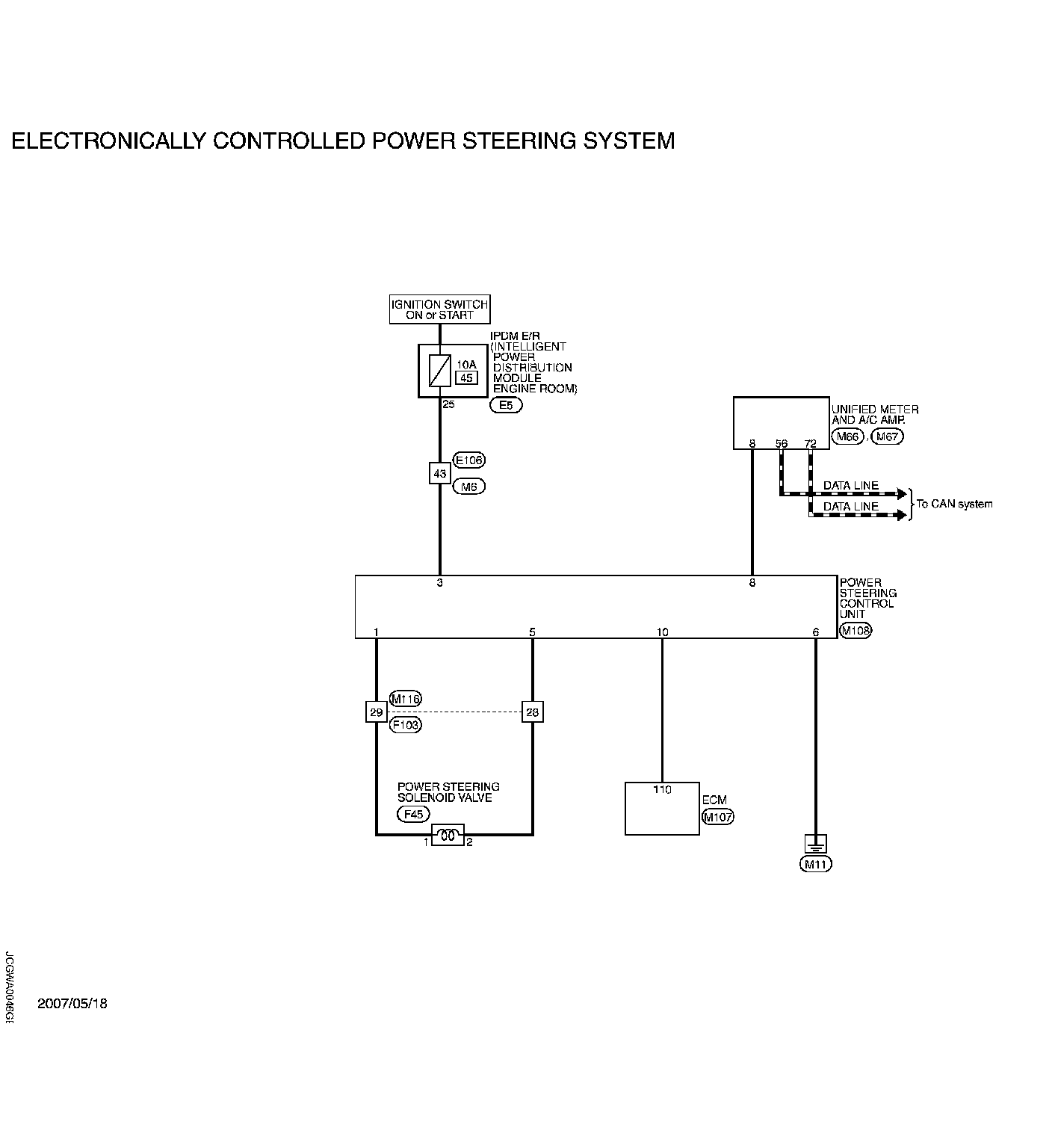

Wiring Diagram - Electronically Controlled Power Steering System - Part 1:

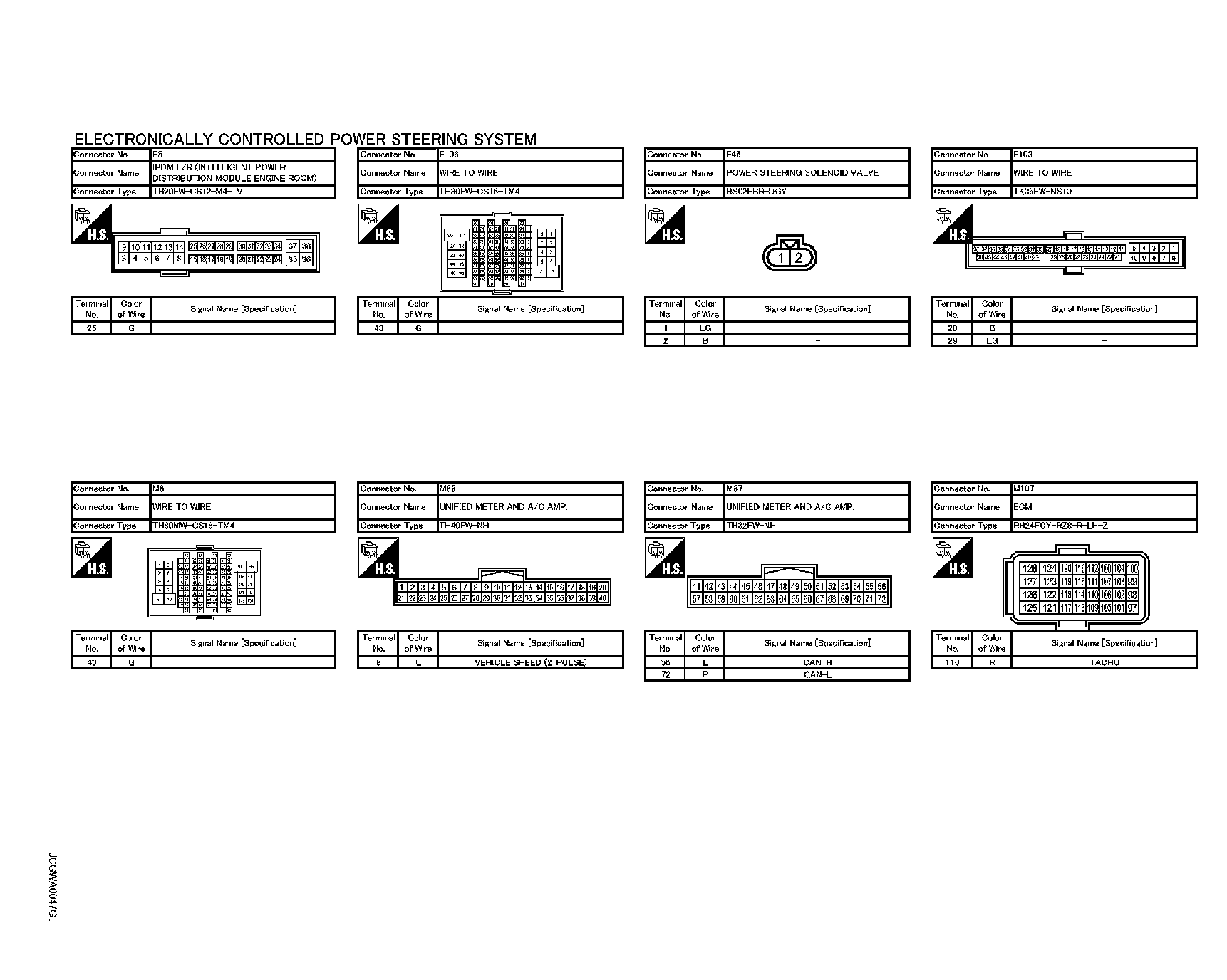

Wiring Diagram - Electronically Controlled Power Steering System - Part 2:



Wiring Diagram - Electronically Controlled Power Steering System - Part 3:
