Home >> Infiniti >> 2008 >> G37 Coupe V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tire Monitoring System >> TPMS

TPMS

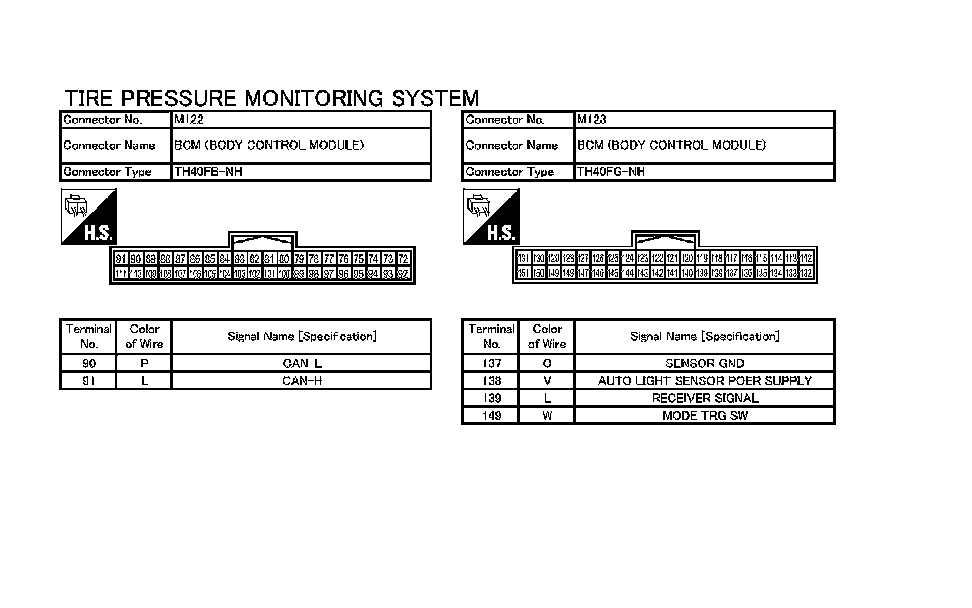

Wiring Diagram - Tire Pressure Monitoring System - Part 1:

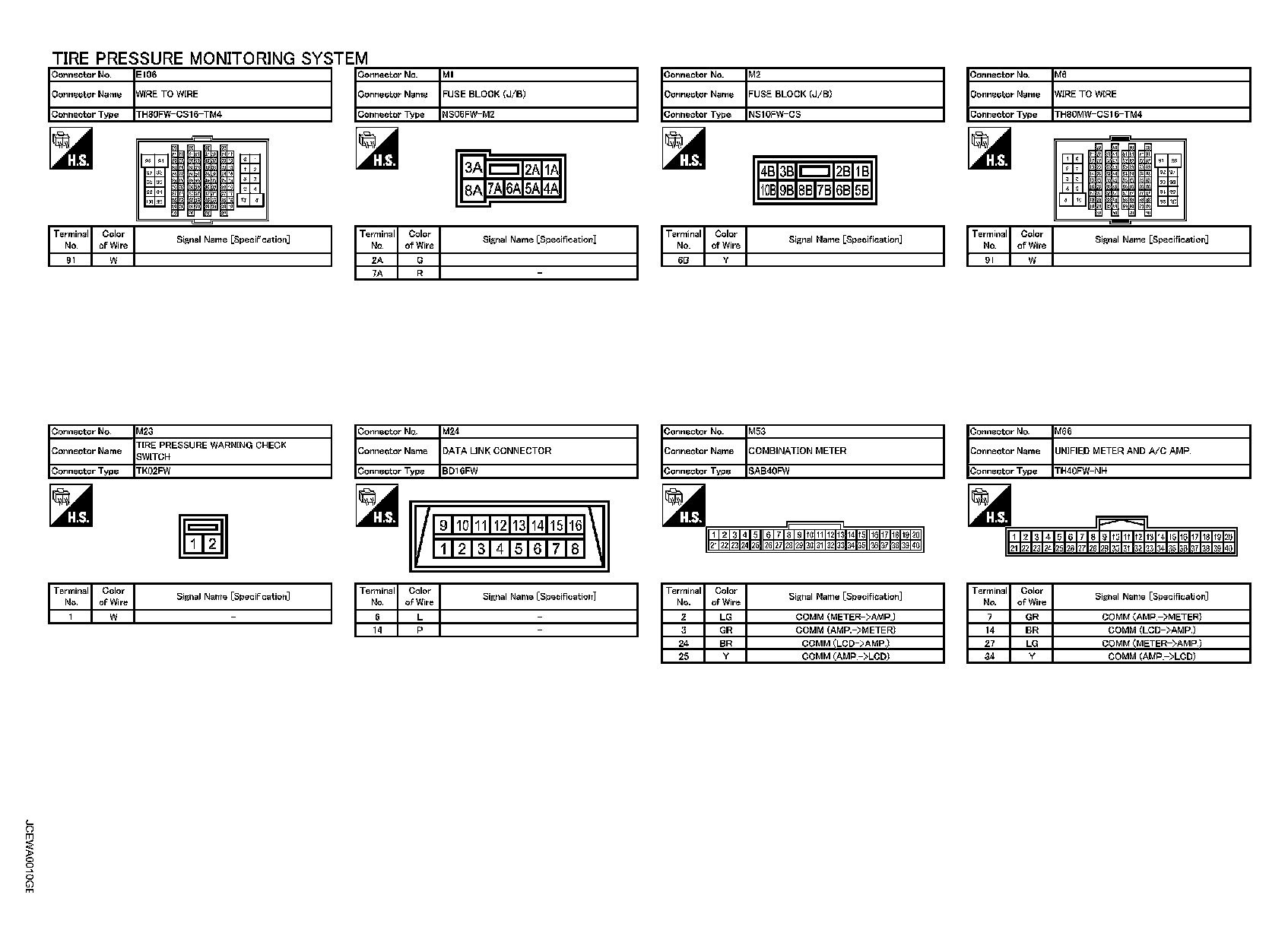

Wiring Diagram - Tire Pressure Monitoring System - Part 2:



Wiring Diagram - Tire Pressure Monitoring System - Part 3:



Wiring Diagram - Tire Pressure Monitoring System - Part 4:
