Wiring Diagram - BCM -

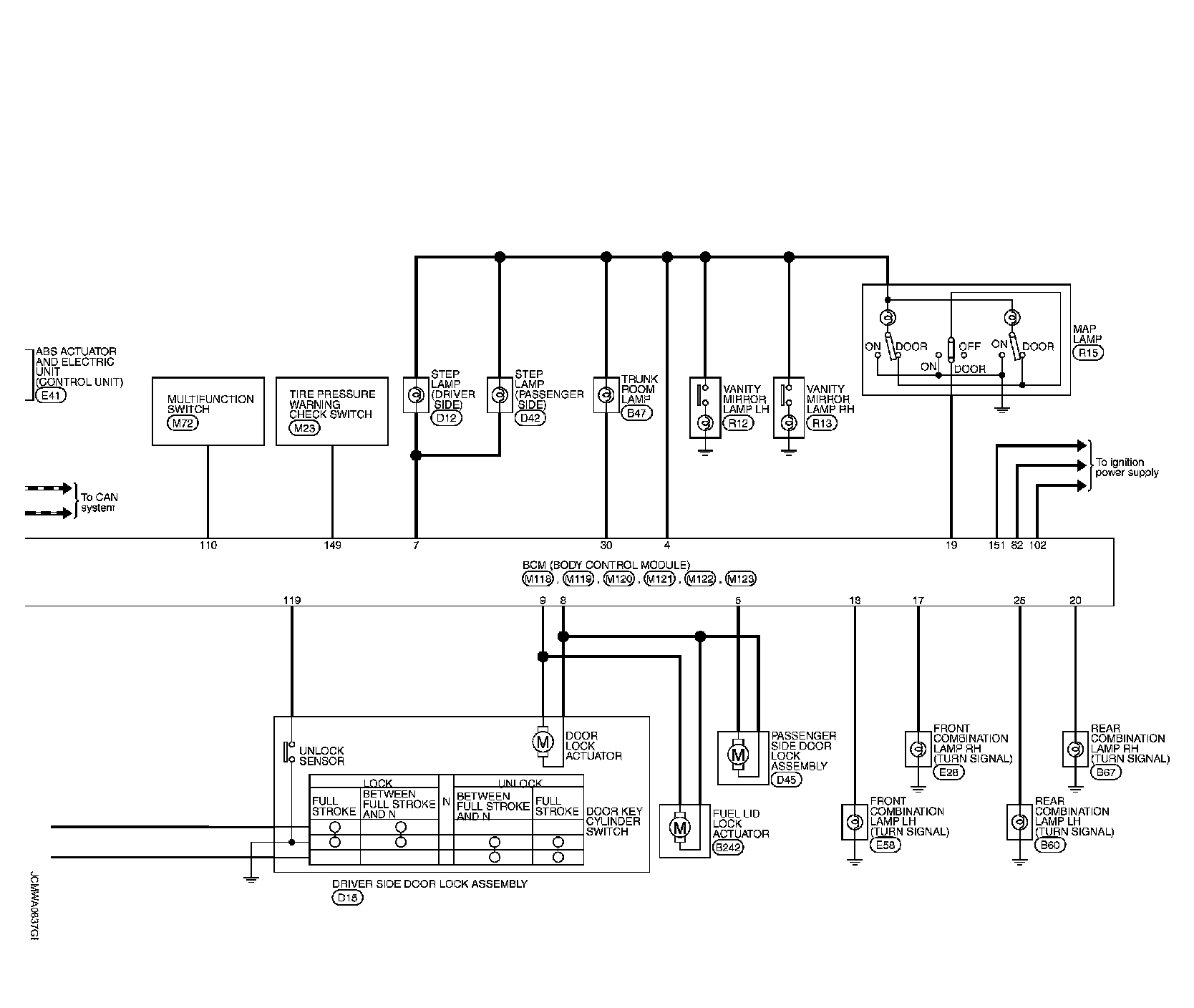

Wiring Diagram - BCM - Part 1:

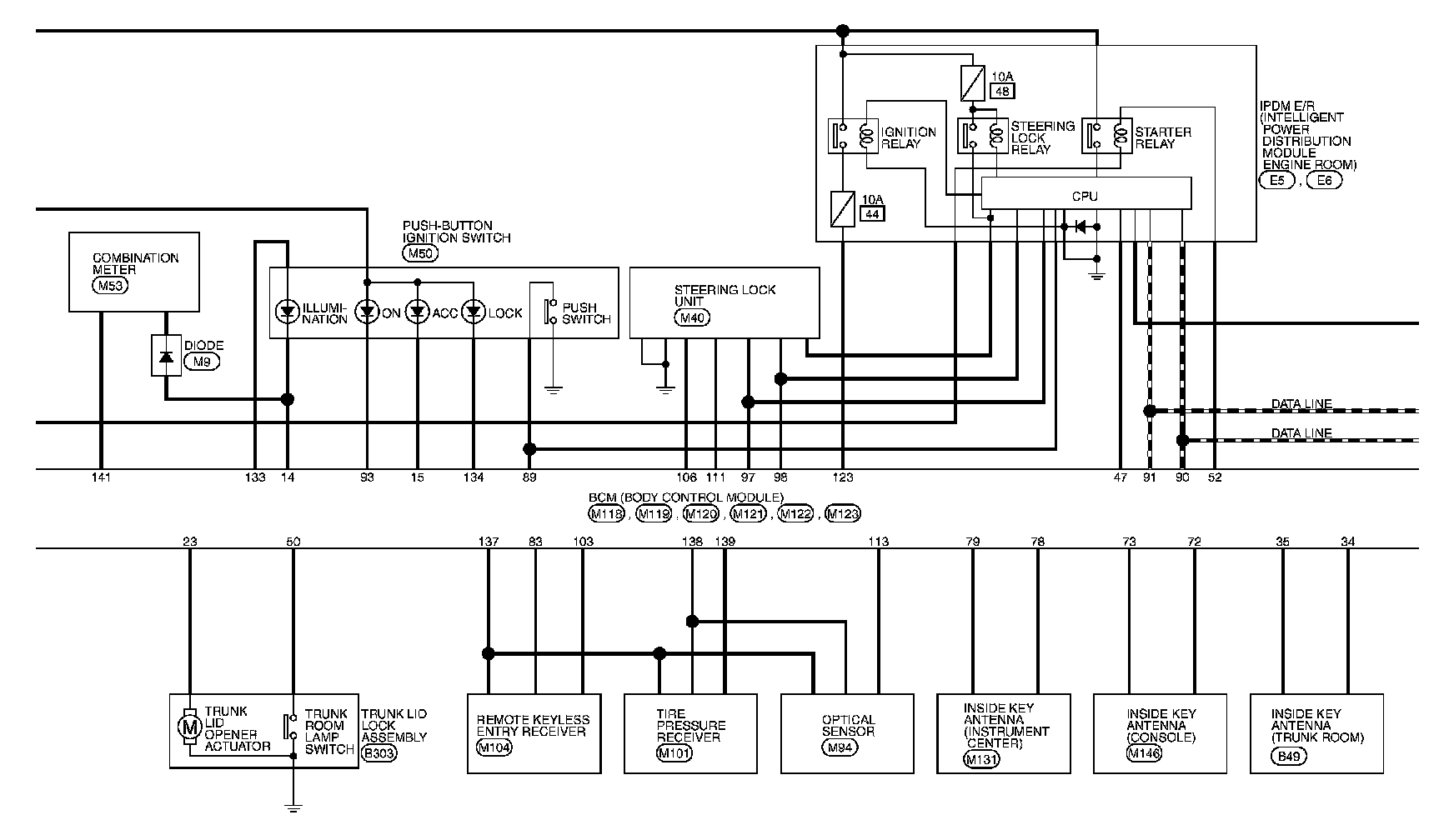

Wiring Diagram - BCM - Part 2:

Wiring Diagram - BCM - Part 3:

Wiring Diagram - BCM - Part 4:

Wiring Diagram - BCM - Part 5:

Wiring Diagram - BCM - Part 6:
