VDC/TCS/ABS

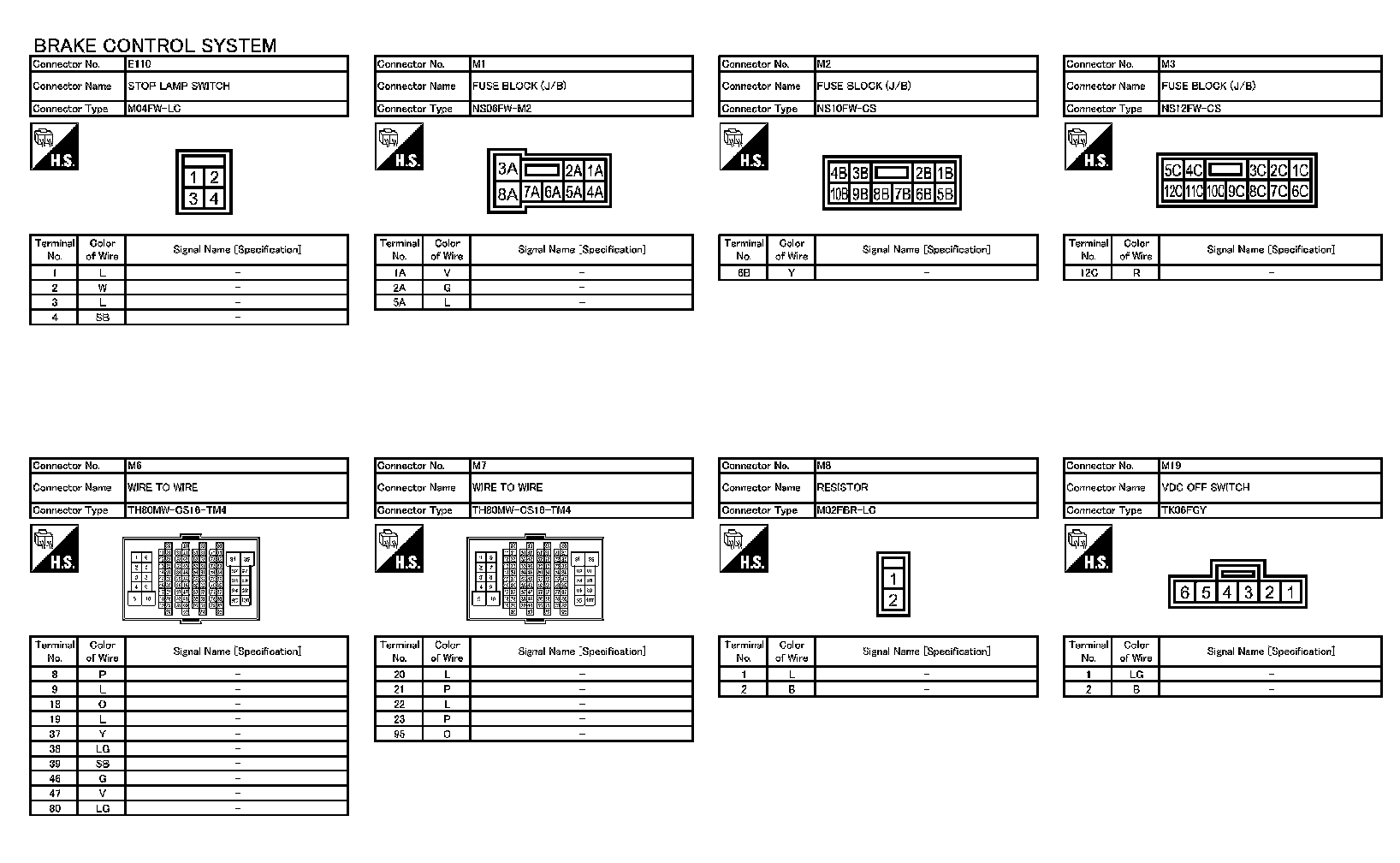

Wiring Diagram - BRAKE CONTROL SYSTEM - Part 1:

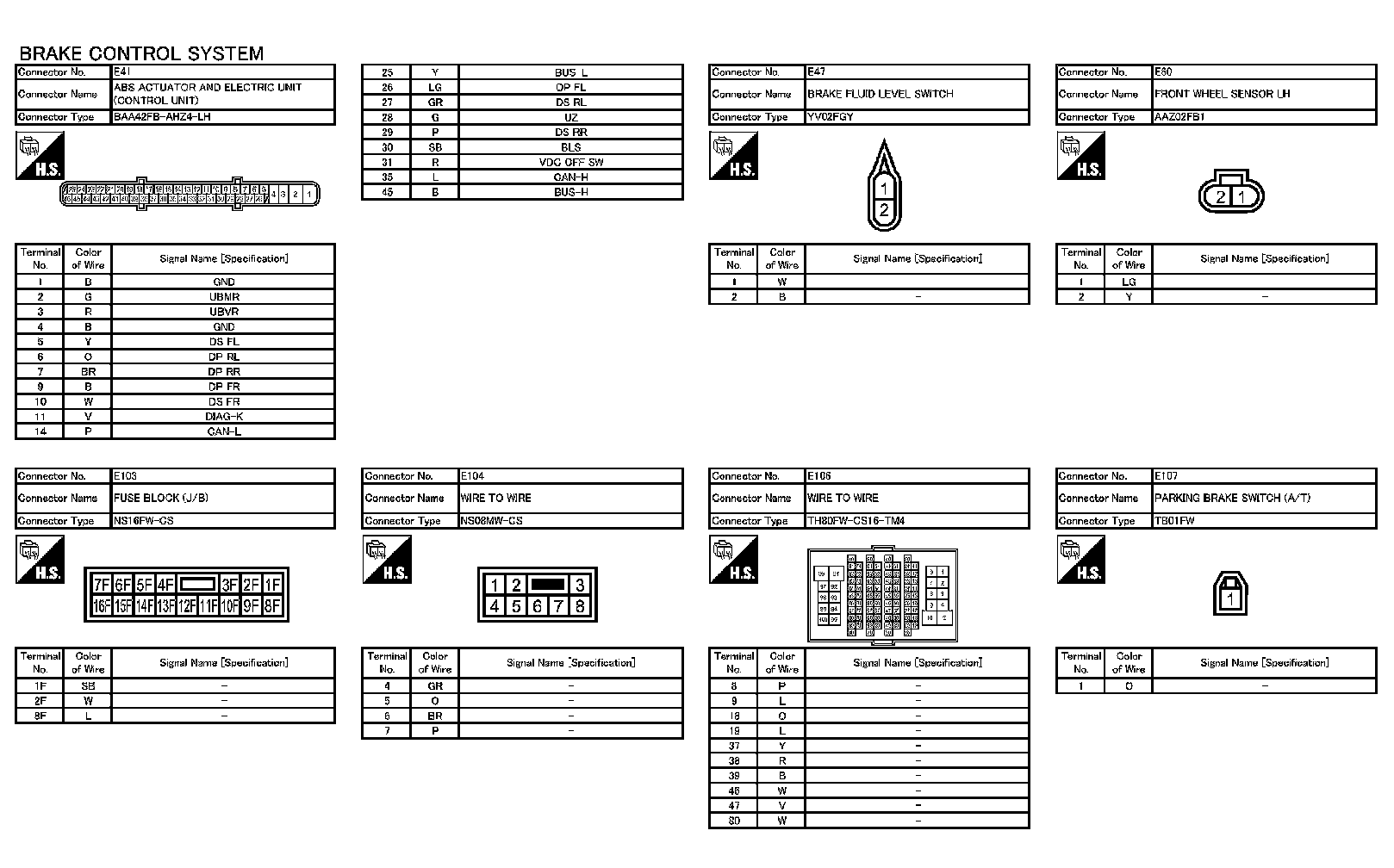

Wiring Diagram - BRAKE CONTROL SYSTEM - Part 2:

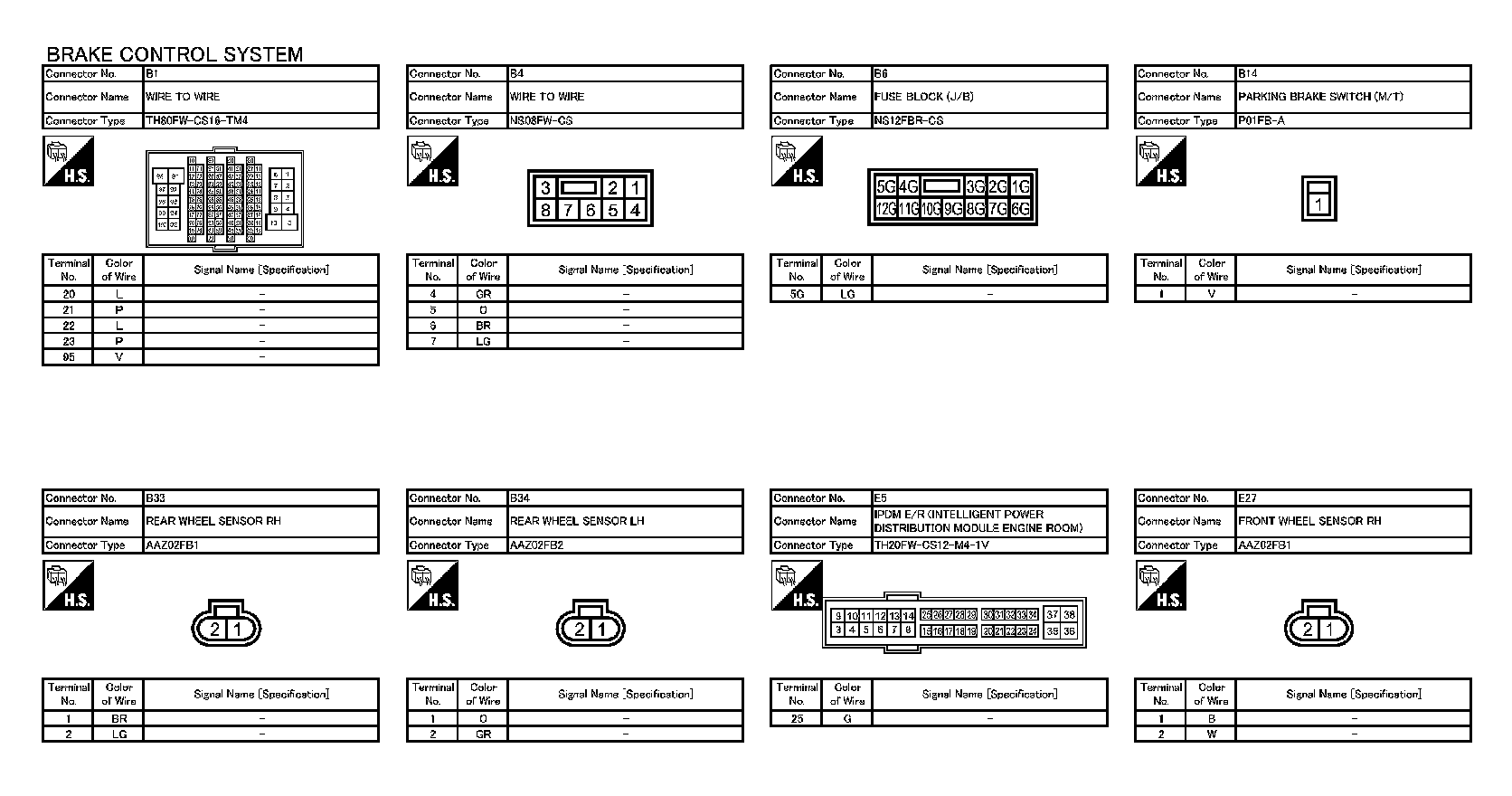

Wiring Diagram - BRAKE CONTROL SYSTEM - Part 3:

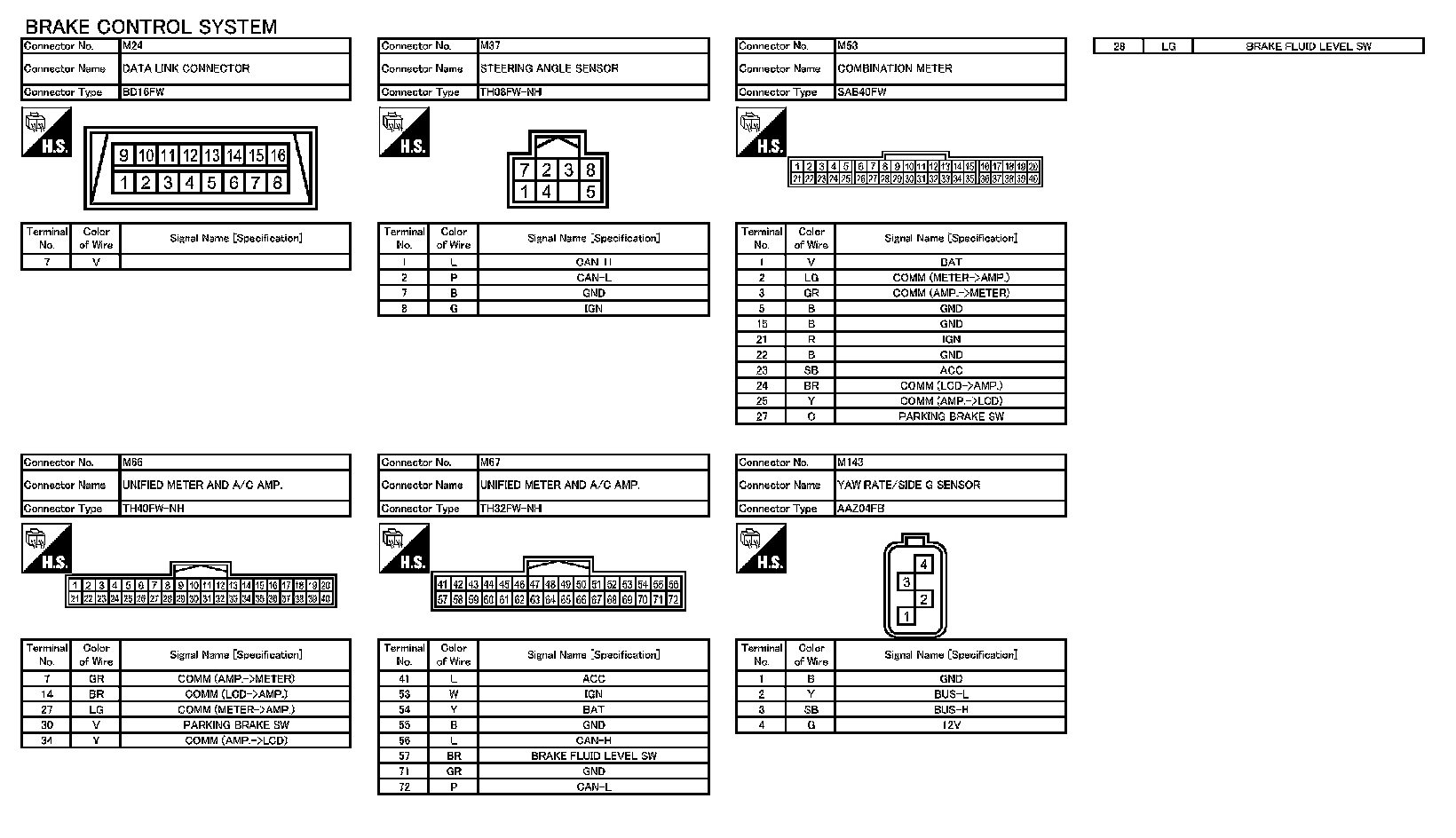

Wiring Diagram - BRAKE CONTROL SYSTEM - Part 4:

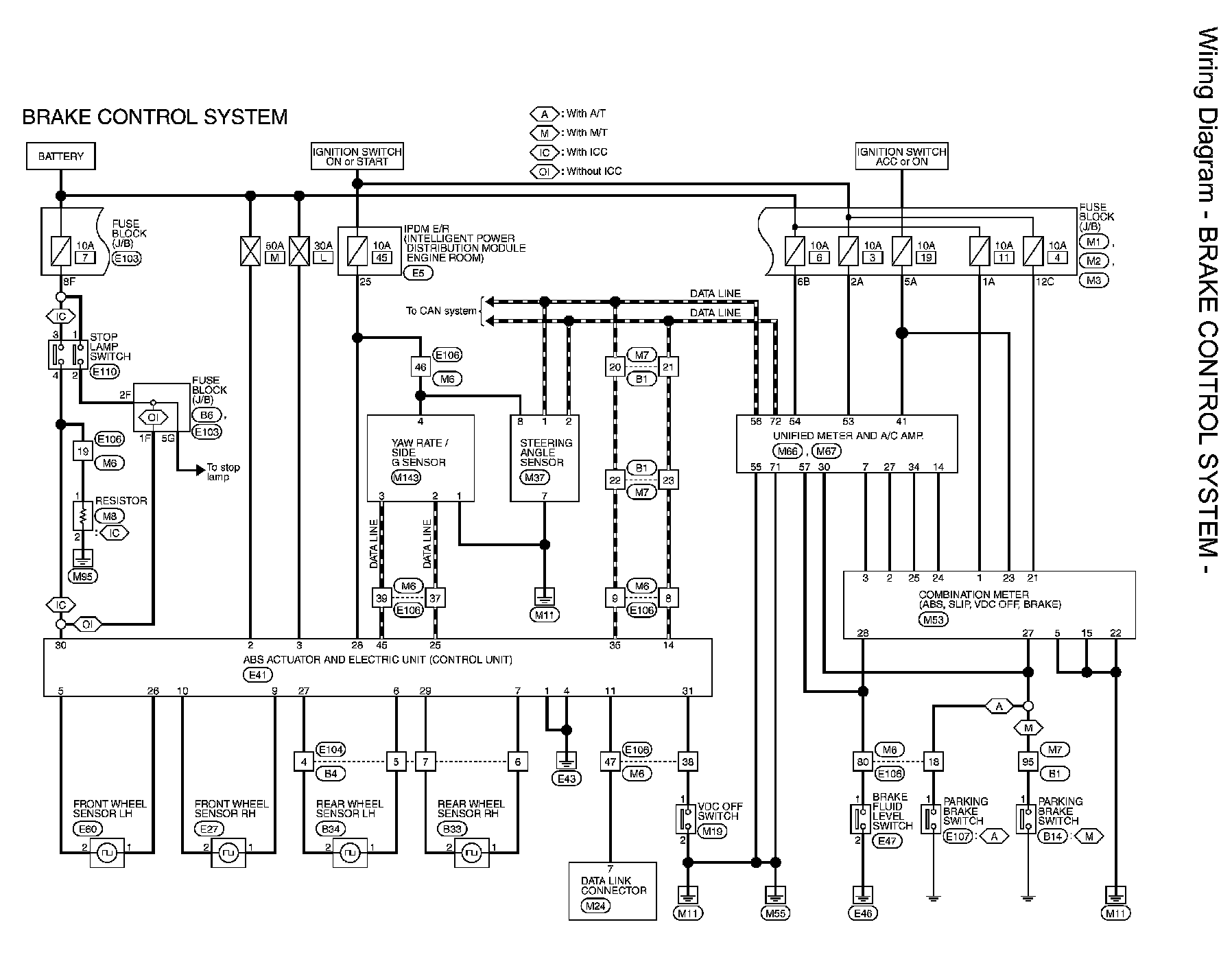

Wiring Diagram - BRAKE CONTROL SYSTEM - Part 5:
