Front Wiper and Washer System

FRONT WIPER AND WASHER SYSTEM

Wiring Diagram - FRONT WIPER AND WASHER SYSTEM -

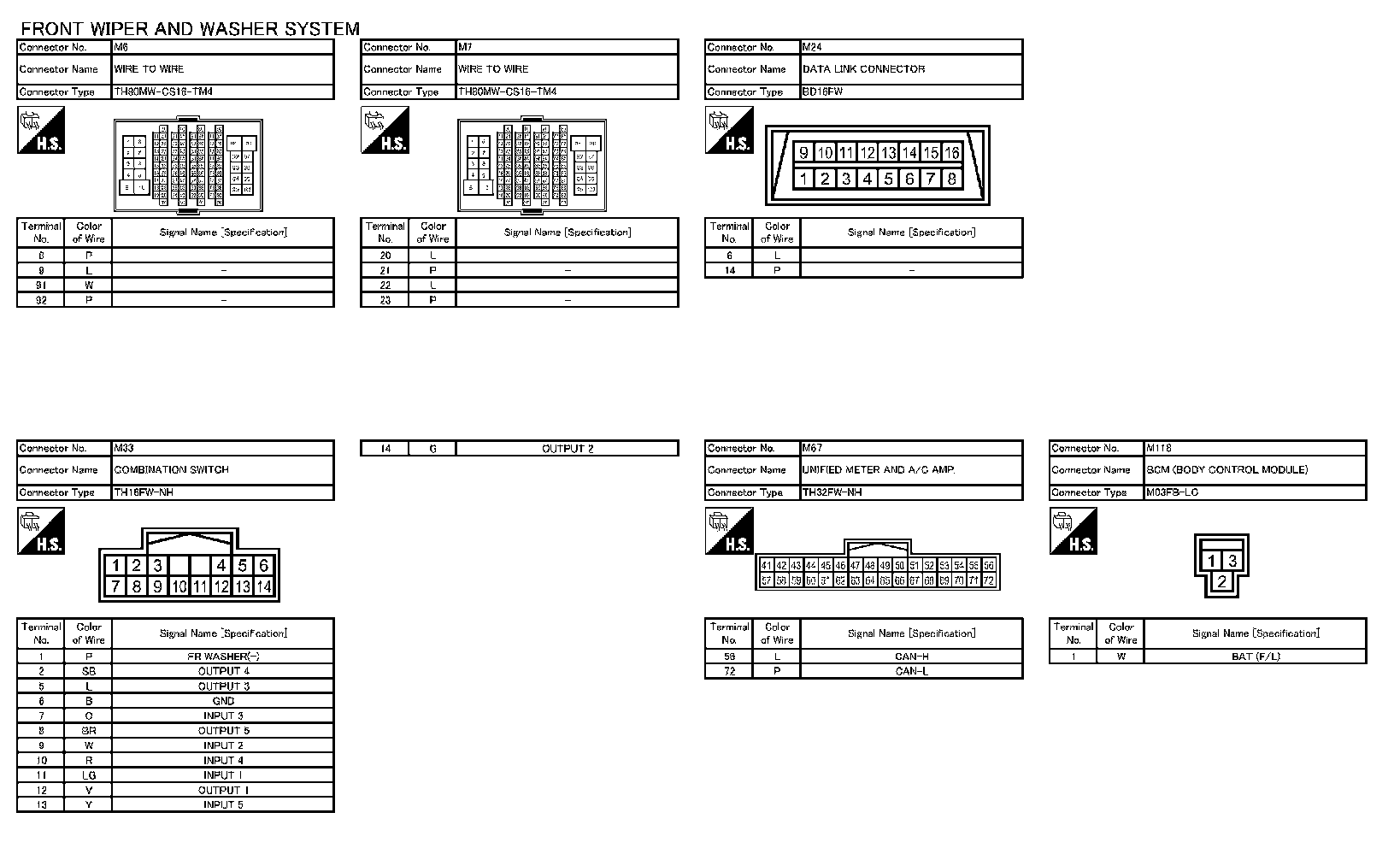

Wiring Diagram - Front Wiper And Washer System - Part 1:

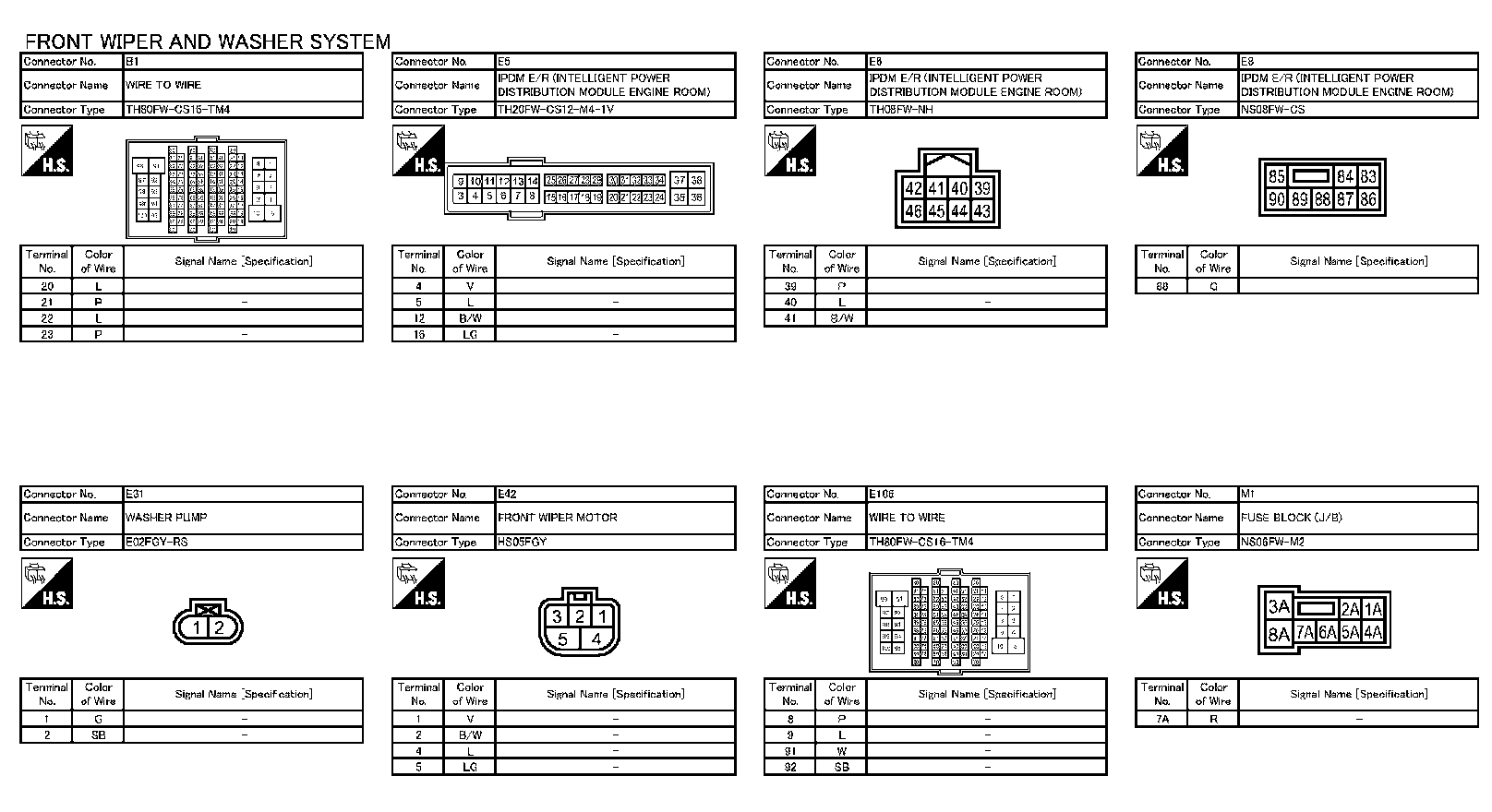

Wiring Diagram - Front Wiper And Washer System - Part 2:

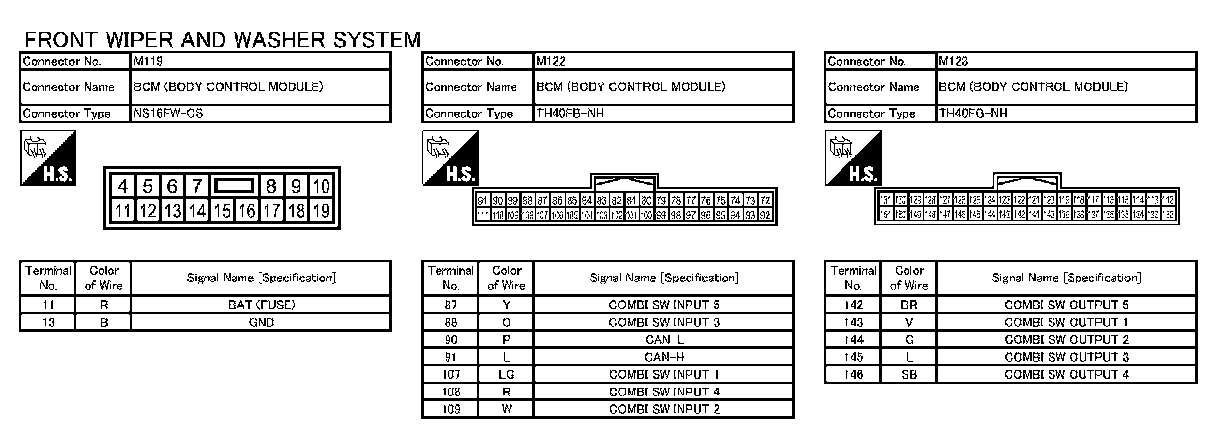

Wiring Diagram - Front Wiper And Washer System - Part 3:




Wiring Diagram - Front Wiper And Washer System - Part 4:
