Automatic Transmission/Transaxle
>>
Exploded View
Exploded View

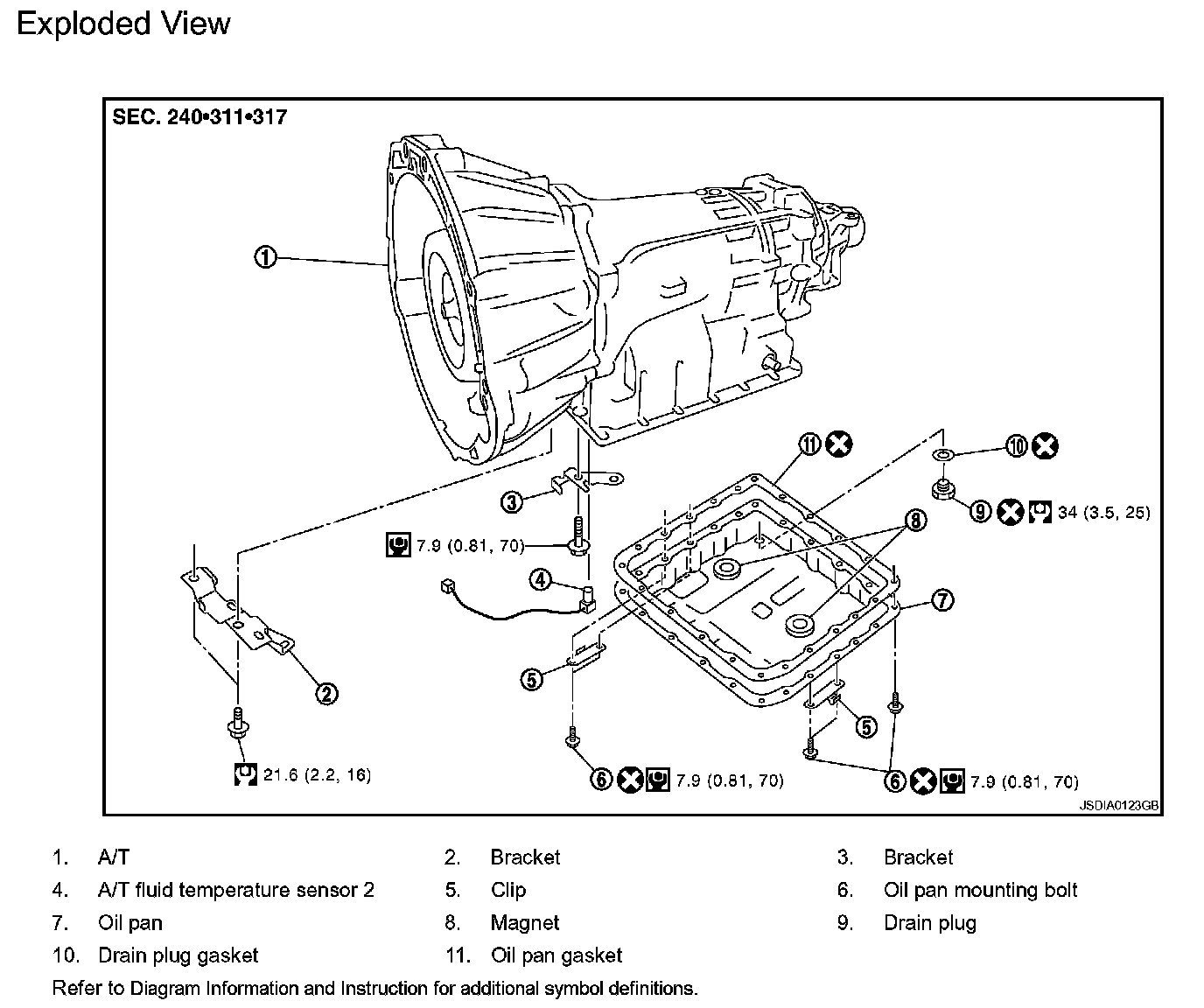

TM-232 Exploded View:

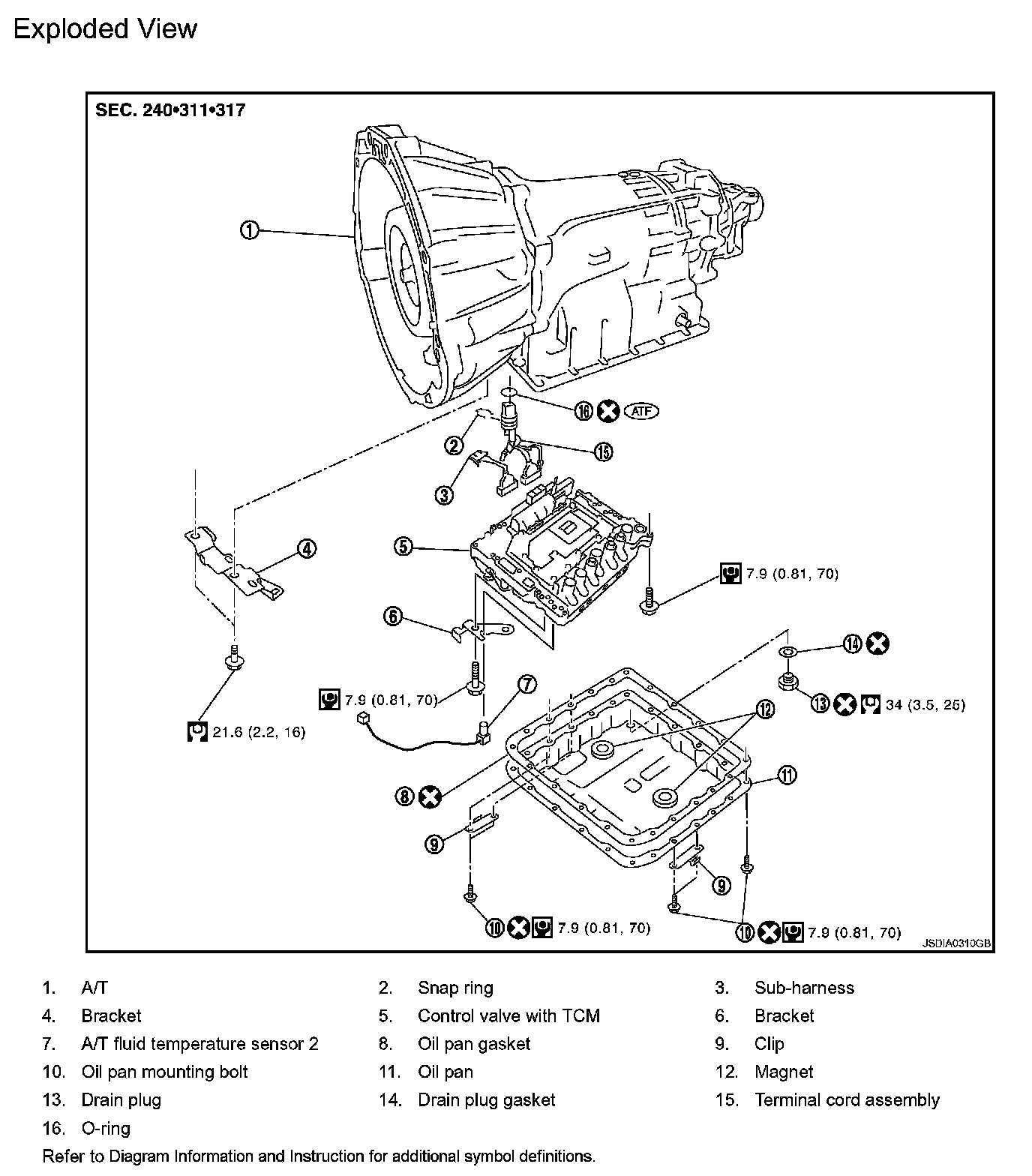

TM-241 Exploded View:
