Exploded View
Exploded View

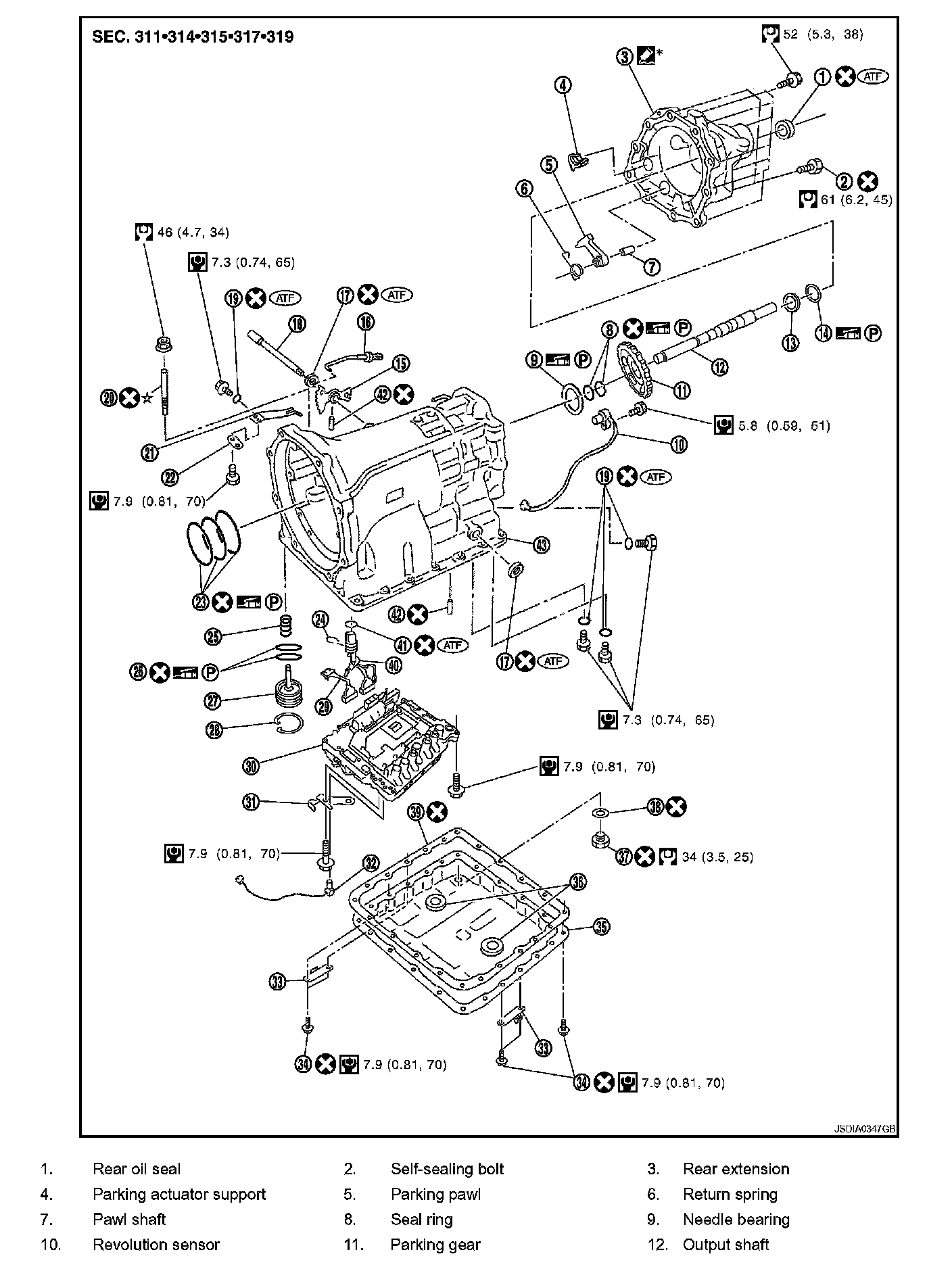

TM-266 Exploded View (Part 1):
TM-266 Exploded View (Part 2):

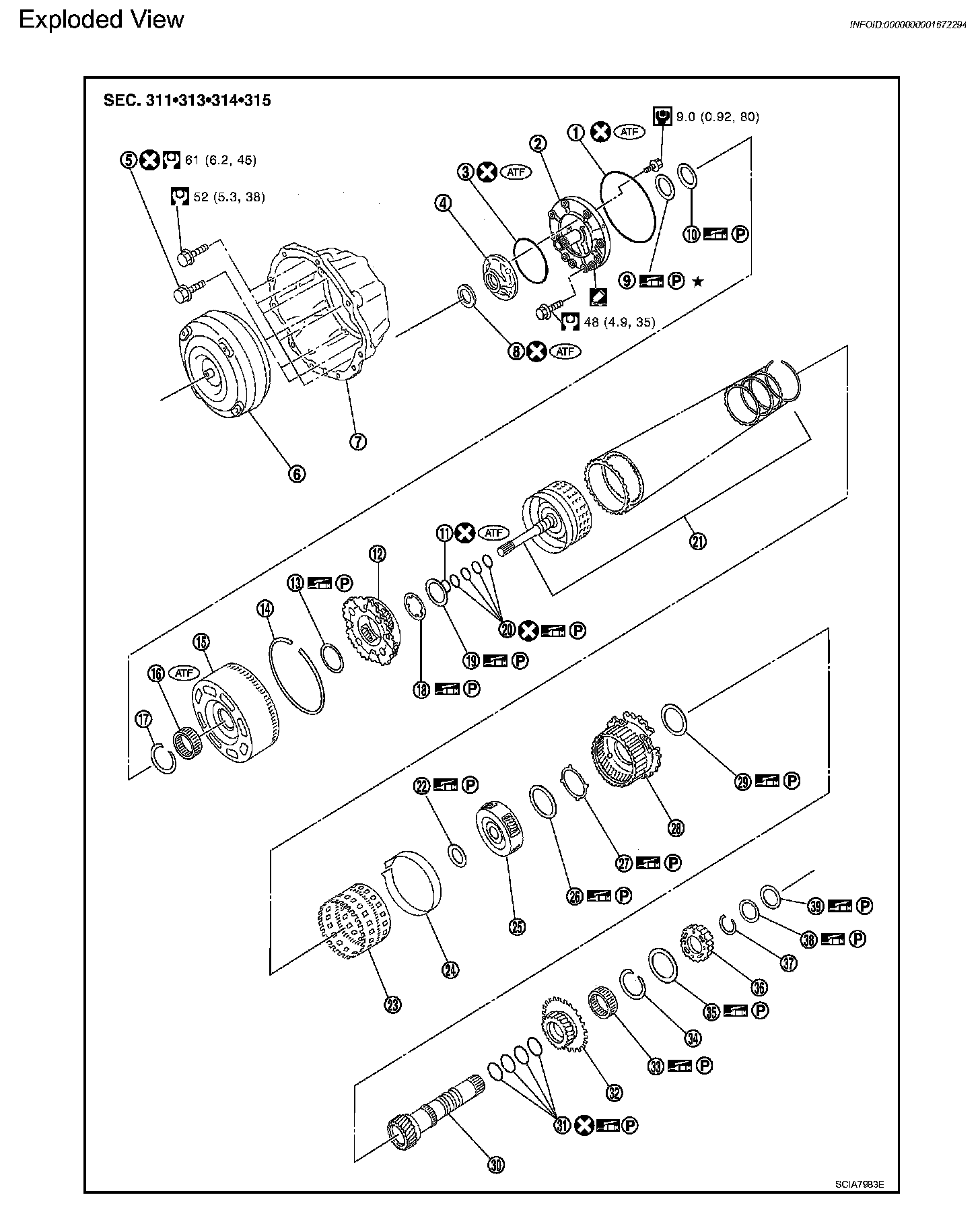

TM-268 Exploded View:
TM-269 Exploded View (Part 1):
TM-269 Exploded View (Part 2):
