Timing Components: Specifications

EM-48 Exploded View (Part 1):

EM-48 Exploded View (Part 2):

Timing Chain Tensioner

Crankshaft Pulley
Tighten crankshaft pulley bolt.
Torque 44.1 Nm (4.5 kg-m, 33 ft-lb)





Tighten the bolt 90° (one mark) (b).
Place a matching mark (A) on crankshaft pulley (2) aligning with the matching (C) of crankshaft pulley bolt (1).
Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns smoothly.

Timing Cover

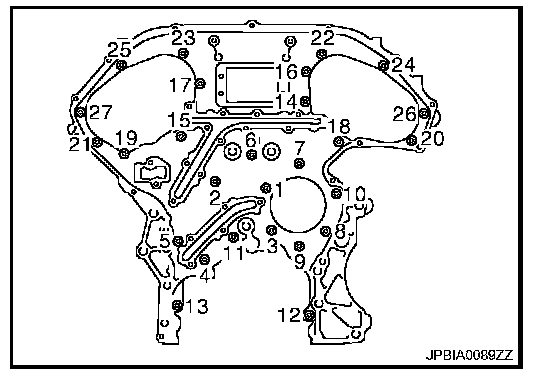

Tighten mounting bolts in numerical order as shown in the figure.
There are three types of mounting bolts. Refer to the following for locating bolts.
Bolt length: Bolt position
20 mm (0.79 in) 1, 2, 3, 6, 7, 8, 9, 10
16 mm (0.63 in) 4, 5, 11, 12, 13
Torque 12.7 Nm (1.3 kg-m, 9 ft-lb)
16 mm (0.63 in) Except the above
Torque 15.0 Nm (1.5 kg-m, 11 ft-lb)
After all bolts are tightened, retighten them to the specified torque in numerical order shown in the figure.
