Air Duct: Service and Repair
DUCT AND GRILLECENTER VENTILATOR GRILLE

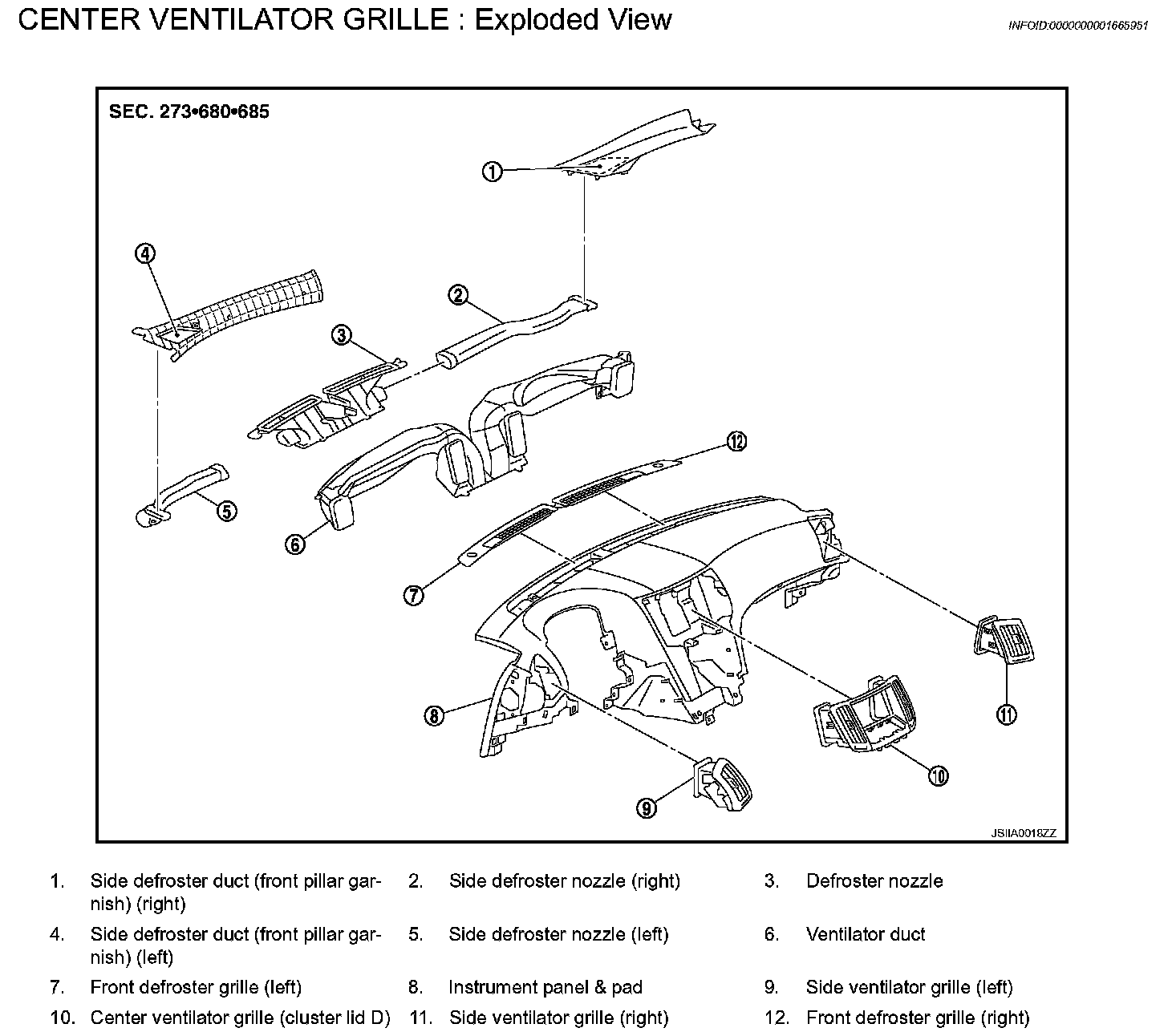

CENTER VENTILATOR GRILLE : Exploded View
VTL-44 Exploded View:
CENTER VENTILATOR GRILLE : Removal and Installation
REMOVAL
Remove cluster lid D.
INSTALLATION
Installation is basically the reverse order of removal.
SIDE VENTILATOR GRILLE

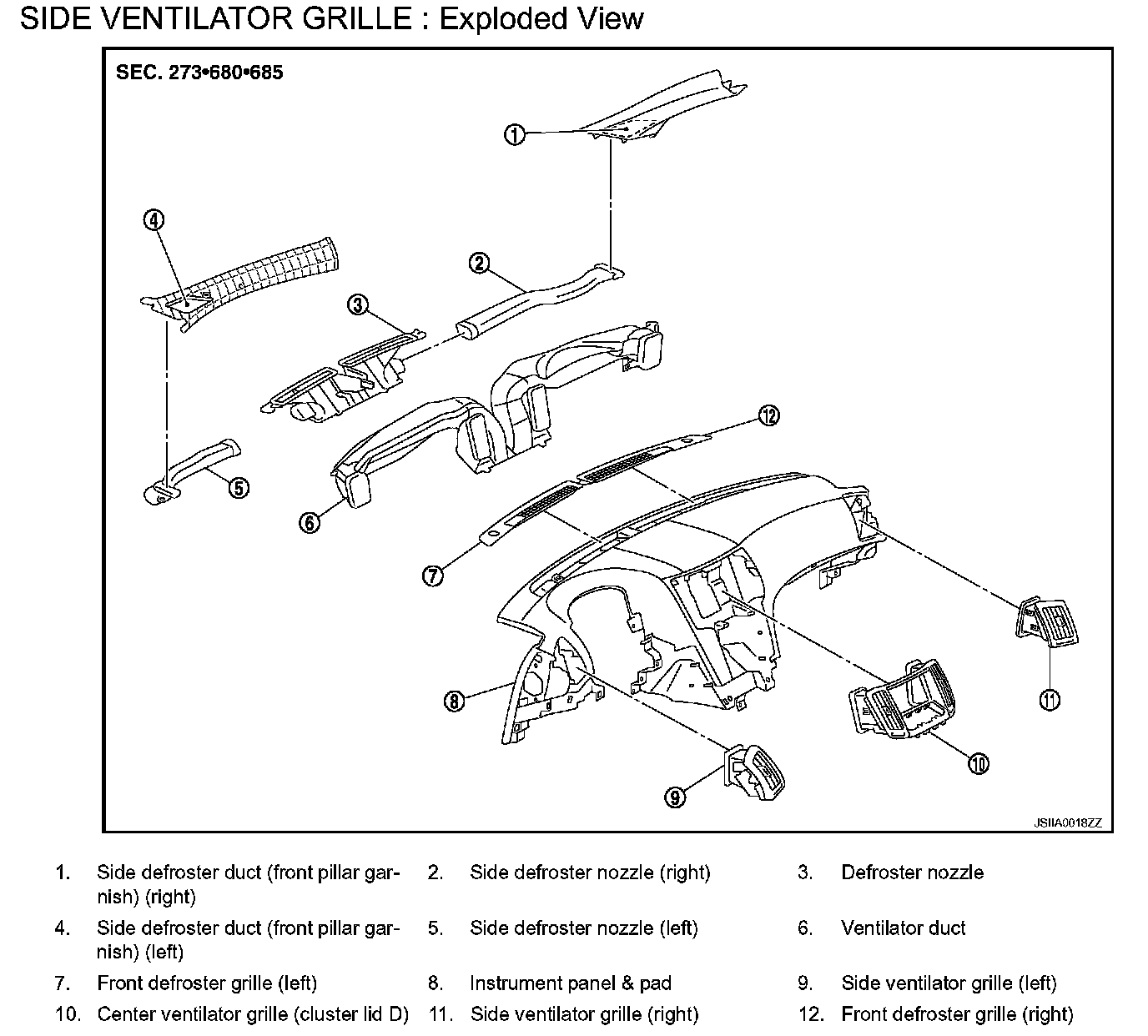

SIDE VENTILATOR GRILLE : Exploded View
VTL-45 Exploded View:
SIDE VENTILATOR GRILLE : Removal and Installation
REMOVAL
Remove side ventilator assembly.
INSTALLATION
Installation is basically the reverse order of removal.
FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLE AND VENTILATOR DUCT

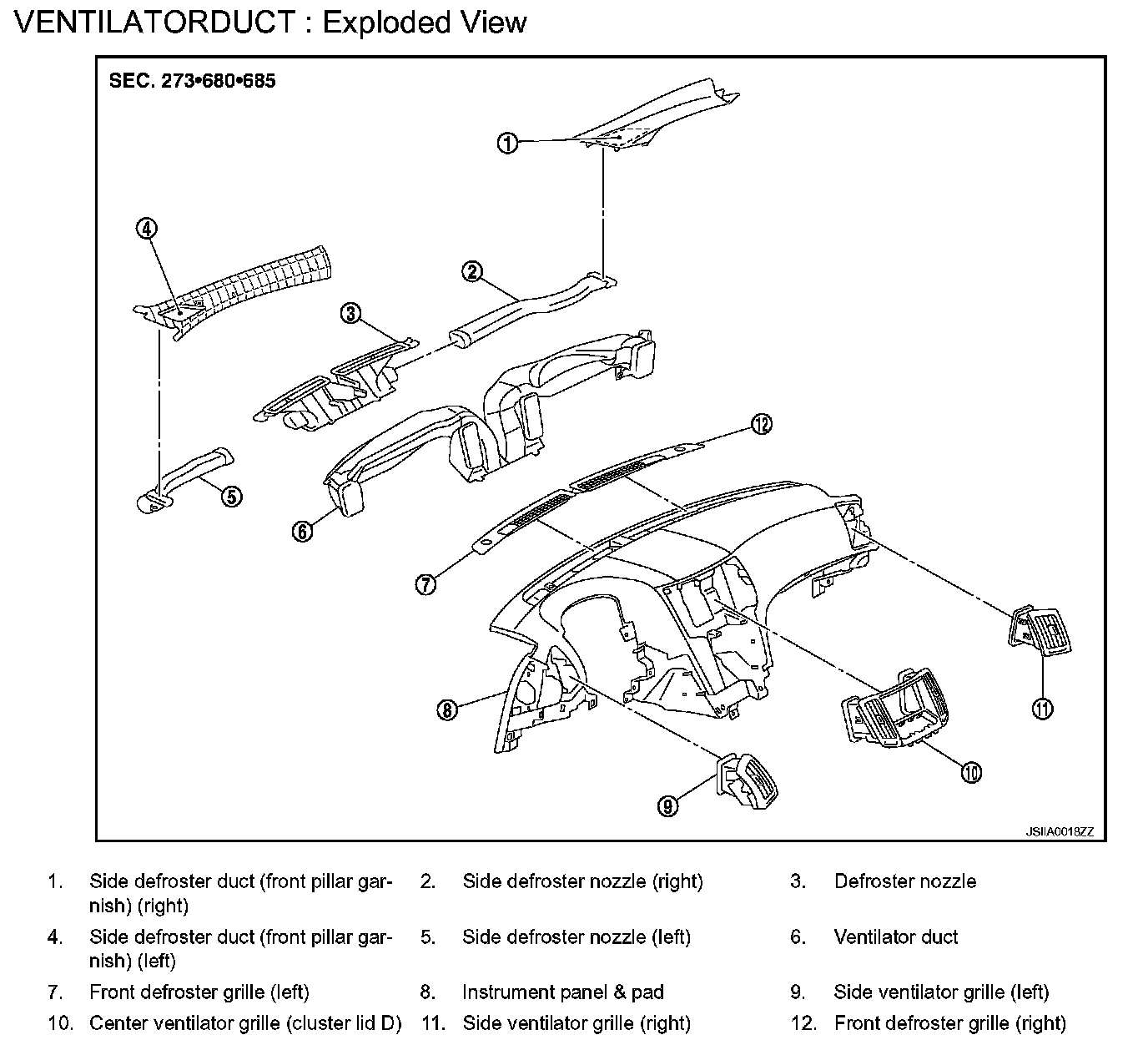

FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLE AND VENTILATOR DUCT : Exploded View
VTL-46 Exploded View:
FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLE AND VENTILATOR DUCT : Removal and Installation
REMOVAL

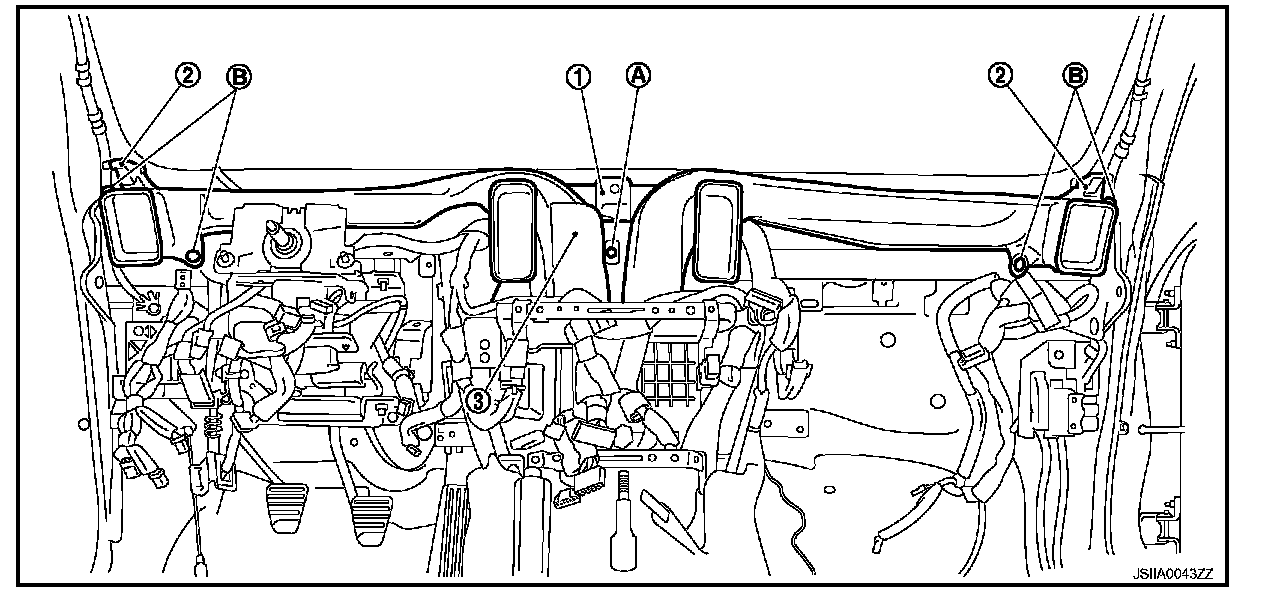

1. Remove instrument panel & pad.
2. Remove mounting screw (A).
3. Remove clips (B), and then remove defroster nozzle (1), side defroster nozzle (2) and ventilator duct (3).
INSTALLATION
Installation is basically the reverse order of removal.
SIDE DEFROSTER DUCT

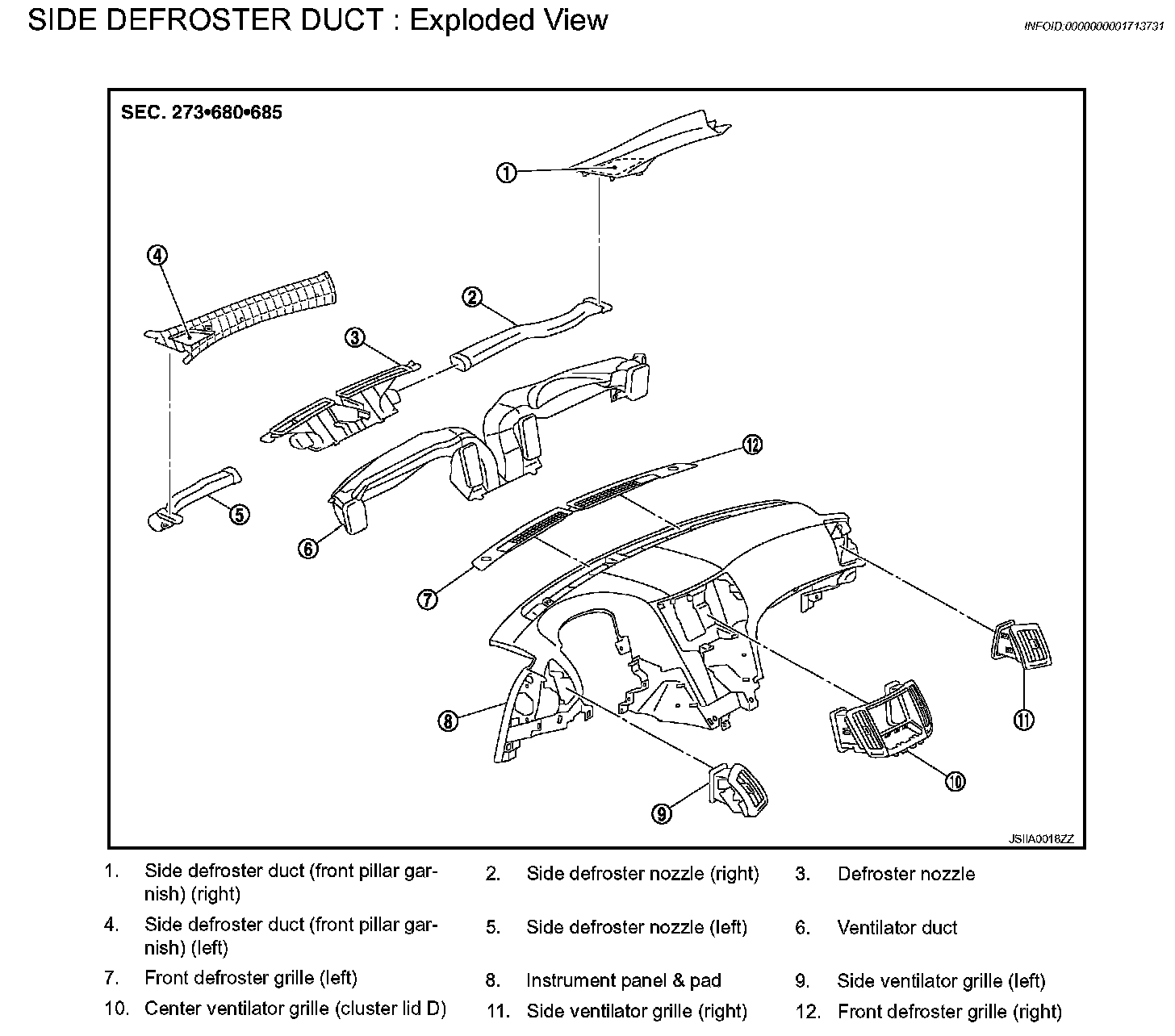

SIDE DEFROSTER DUCT : Exploded View
VTL-47 Exploded View:
SIDE DEFROSTER DUCT : Removal and Installation
REMOVAL
Remove front pillar garnishes.
INSTALLATION
Installation is basically the reverse order of removal.
FOOT GRILLE
FOOT GRILLE : Exploded View
VTL-48 Exploded View:
FOOT GRILLE : Removal and Installation
REMOVAL

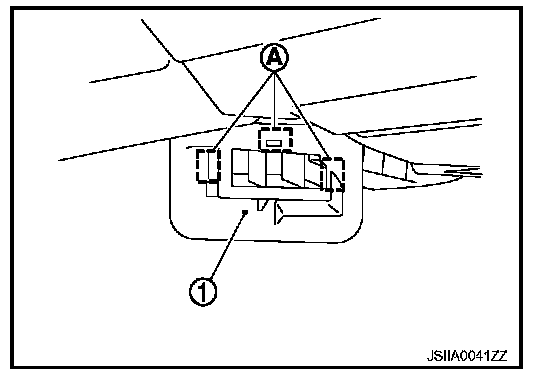

1. Remove mounting clips (A), and then remove foot grille (left) (1).
2. Remove mounting clips (A), and then remove foot grille (right) (1).
INSTALLATION
Installation is basically the reverse order of removal.
FOOT DUCT

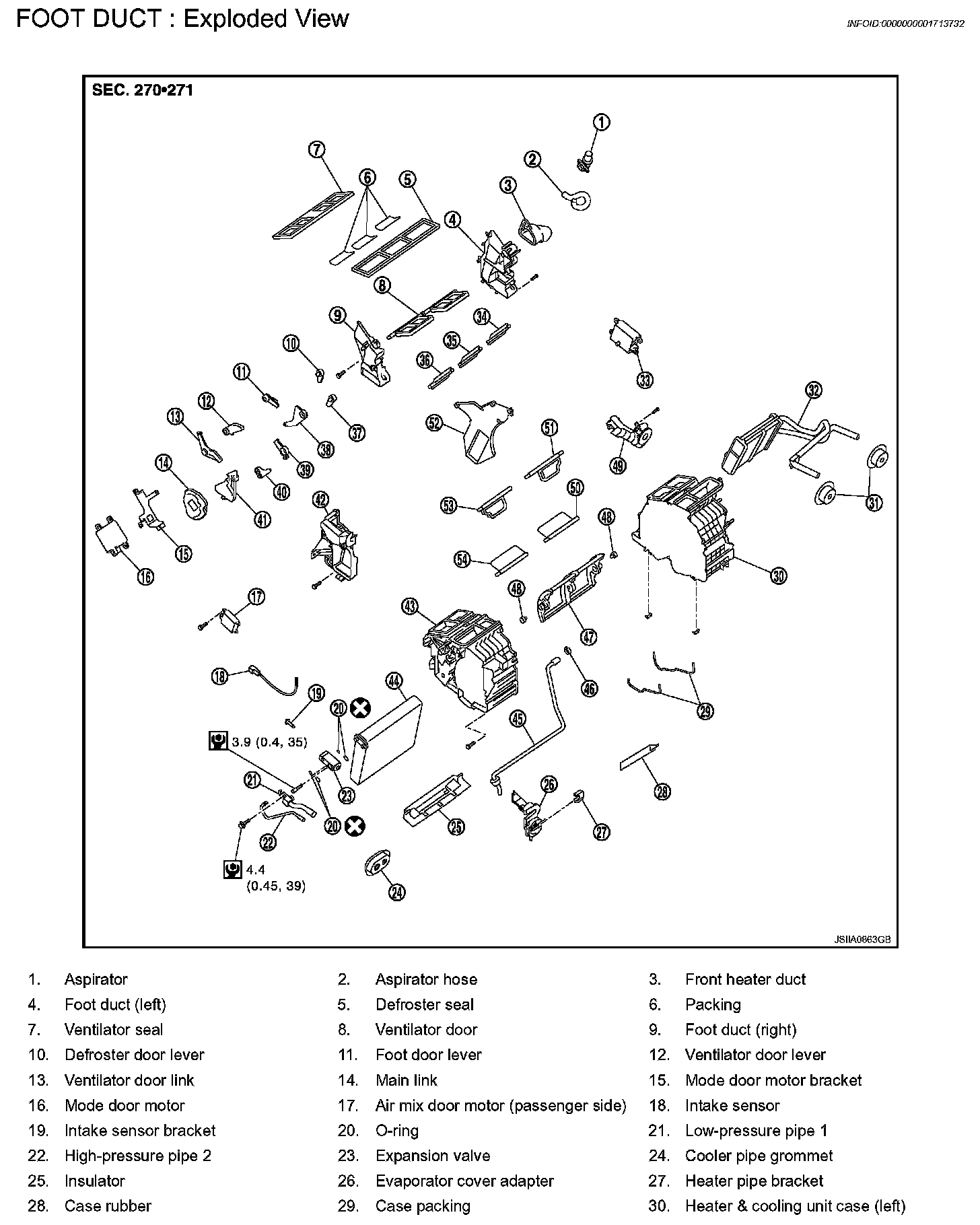

FOOT DUCT : Exploded View
VTL-49 Exploded View (Part 1):

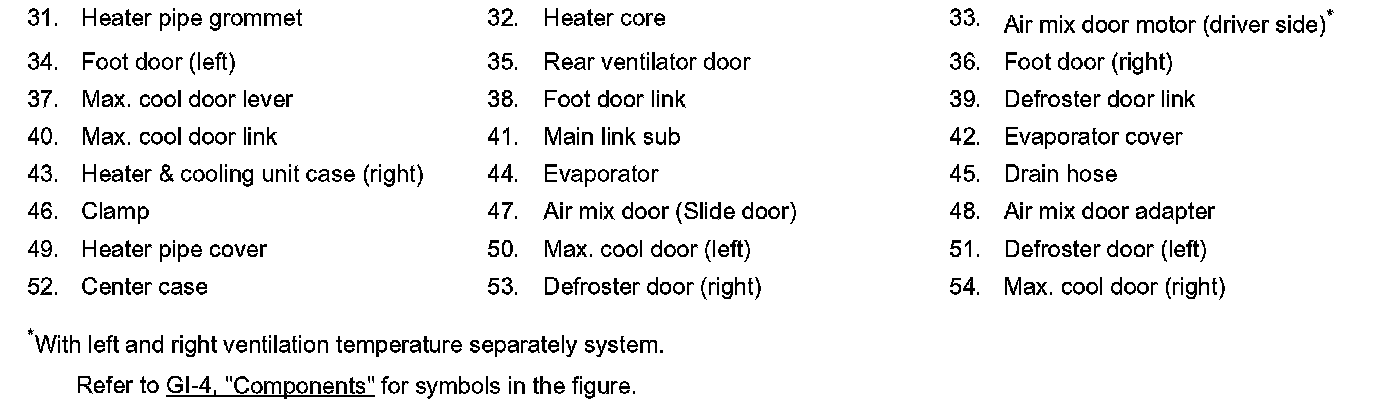

VTL-49 Exploded View (Part 2):
FOOT DUCT : Removal and Installation
REMOVAL

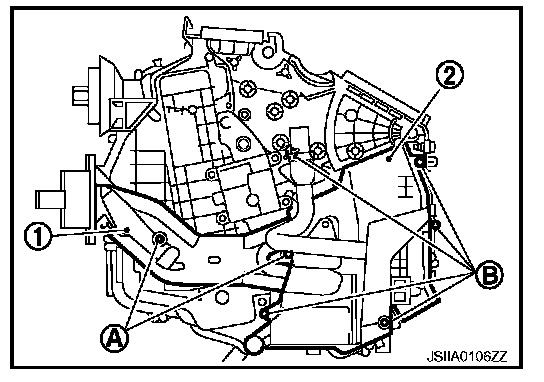

1. Remove heater & cooling unit assembly.

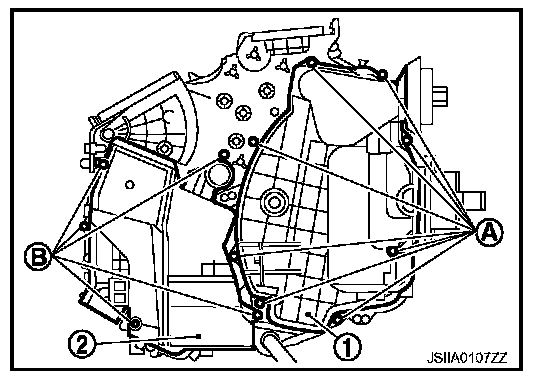

2. Remove mounting screws (A), and then remove heater pipe cover (1).
3. Remove mounting screws (B), and then remove foot duct (left) (2).
4. Remove air mix door motor (passenger side).
5. Remove mode door motor.
6. Remove mounting screws (A), and then remove evaporator cover (1).
7. Remove mounting screws (B), and then remove foot duct (right) (2).
INSTALLATION
Installation is basically the reverse order of removal.
REAR FLOOR DUCT 1
REAR FLOOR DUCT 1 : Exploded View
VTL-51 Exploded View:
REAR FLOOR DUCT 1 : Removal and Installation
REMOVAL
1. Remove center console.
2. Remove Instrument side panel (RH).
3. Remove AV control unit.
4. Remove mounting clip (A).
5. Remove mounting clips (B), and then peel back floor carpet to a point where rear floor duct 1 is visible.
6. Remove rear floor duct 1 to rightward.
INSTALLATION
Installation is basically the reverse order of removal.
