ECM

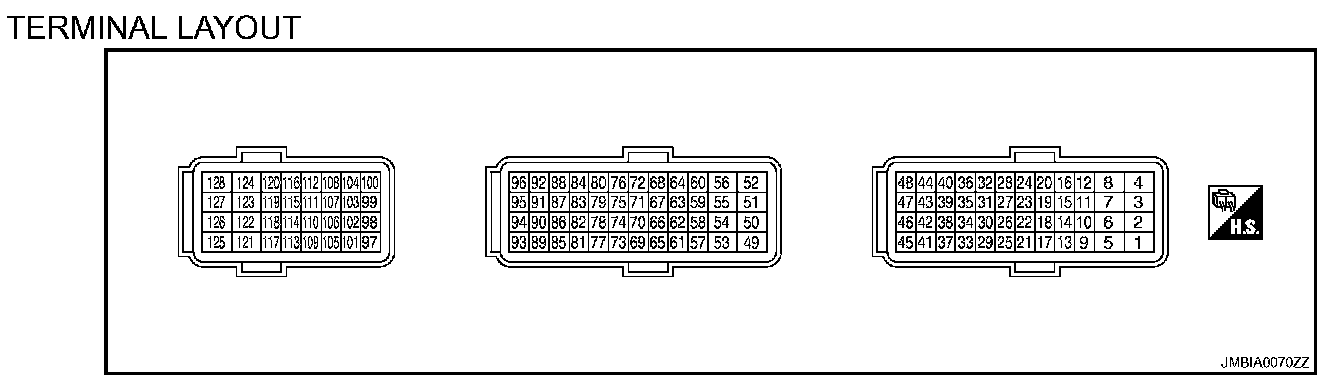

TERMINAL LAYOUT






PHYSICAL VALUES

NOTE:
- ECM is located behind the instrument assist lower panel. For this inspection, remove passenger side instrument lower panel.
- Specification data are reference values and are measured between each terminal and ground.
- Pulse signal is measured by CONSULT-III.

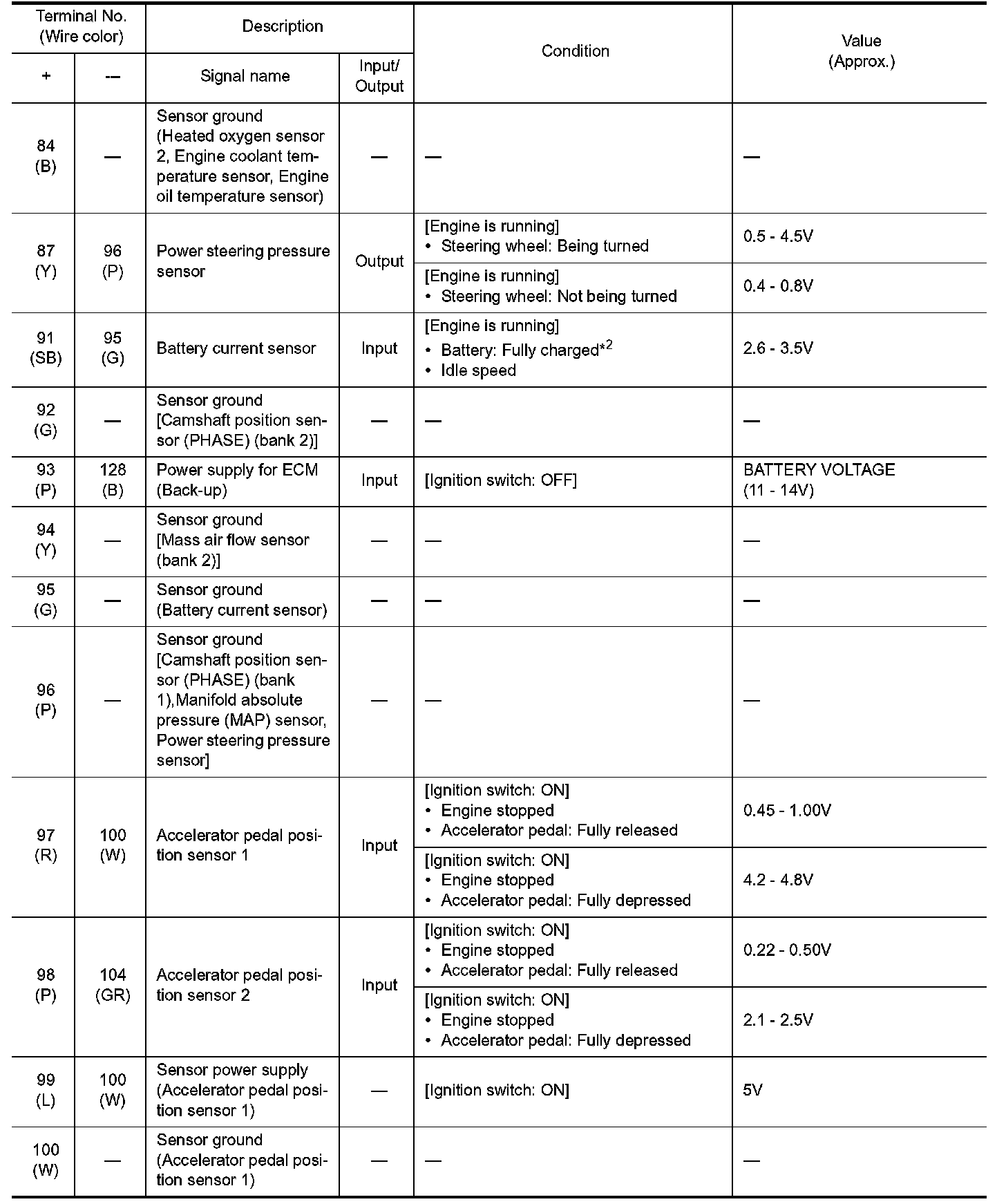

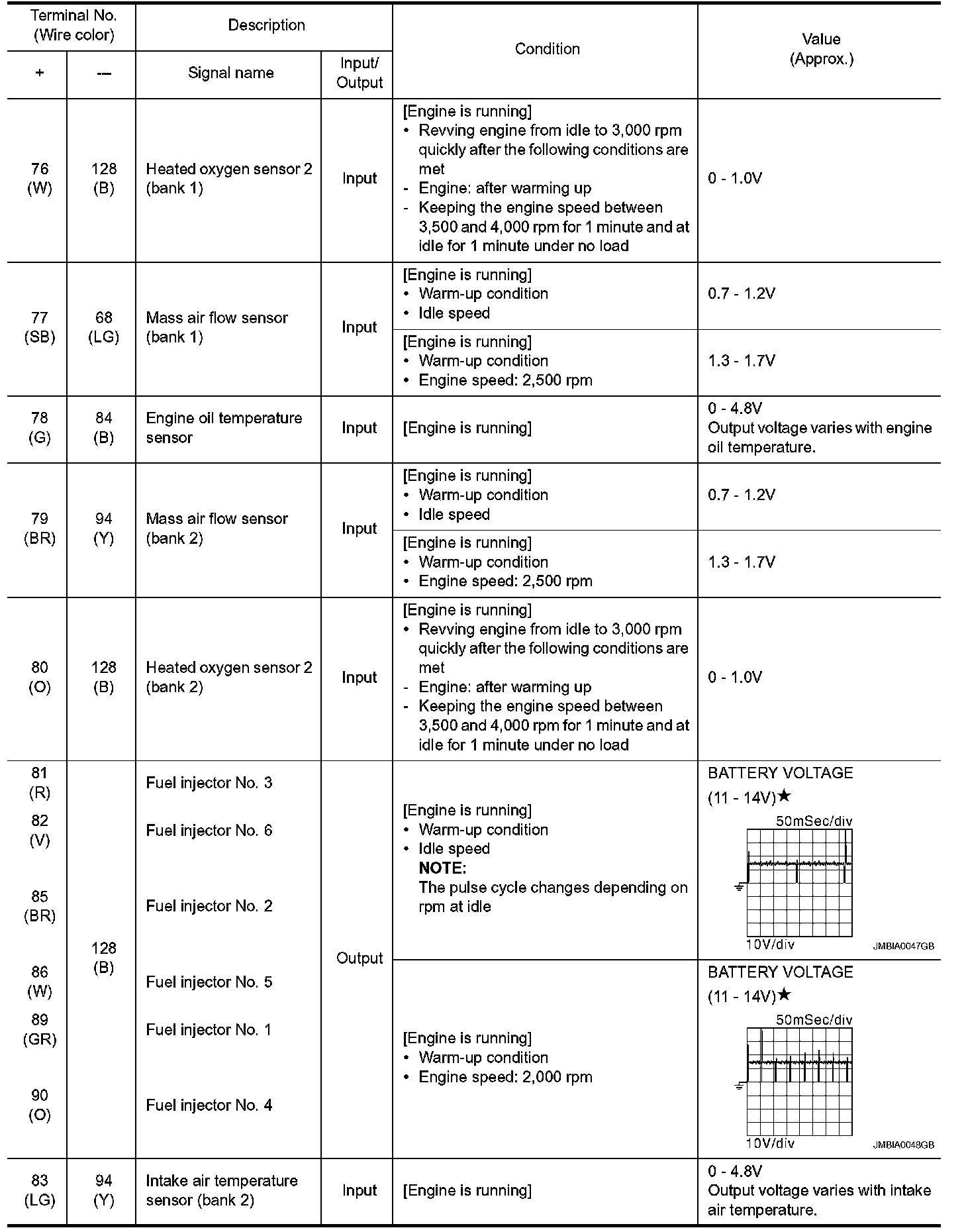

Terminal And Reference Values (Part 1):

Terminal And Reference Values (Part 2):

Terminal And Reference Values (Part 3):

Terminal And Reference Values (Part 4):

Terminal And Reference Values (Part 5):

Terminal And Reference Values (Part 6):

Terminal And Reference Values (Part 7):

Terminal And Reference Values (Part 8):

Terminal And Reference Values (Part 9):

Terminal And Reference Values (Part 10):

Terminal And Reference Values (Part 11):
