Without Left and Right Ventilation Temperature Separately Control System
DIAGNOSIS SYSTEM (AUTO AMP.)WITHOUT LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM
WITHOUT LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : Diagnosis Description
SELF-DIAGNOSIS SYSTEM
The self-diagnosis system is built into the unified meter and A/C amp. to quickly locate the cause of malfunctions.
SELF-DIAGNOSIS FUNCTION

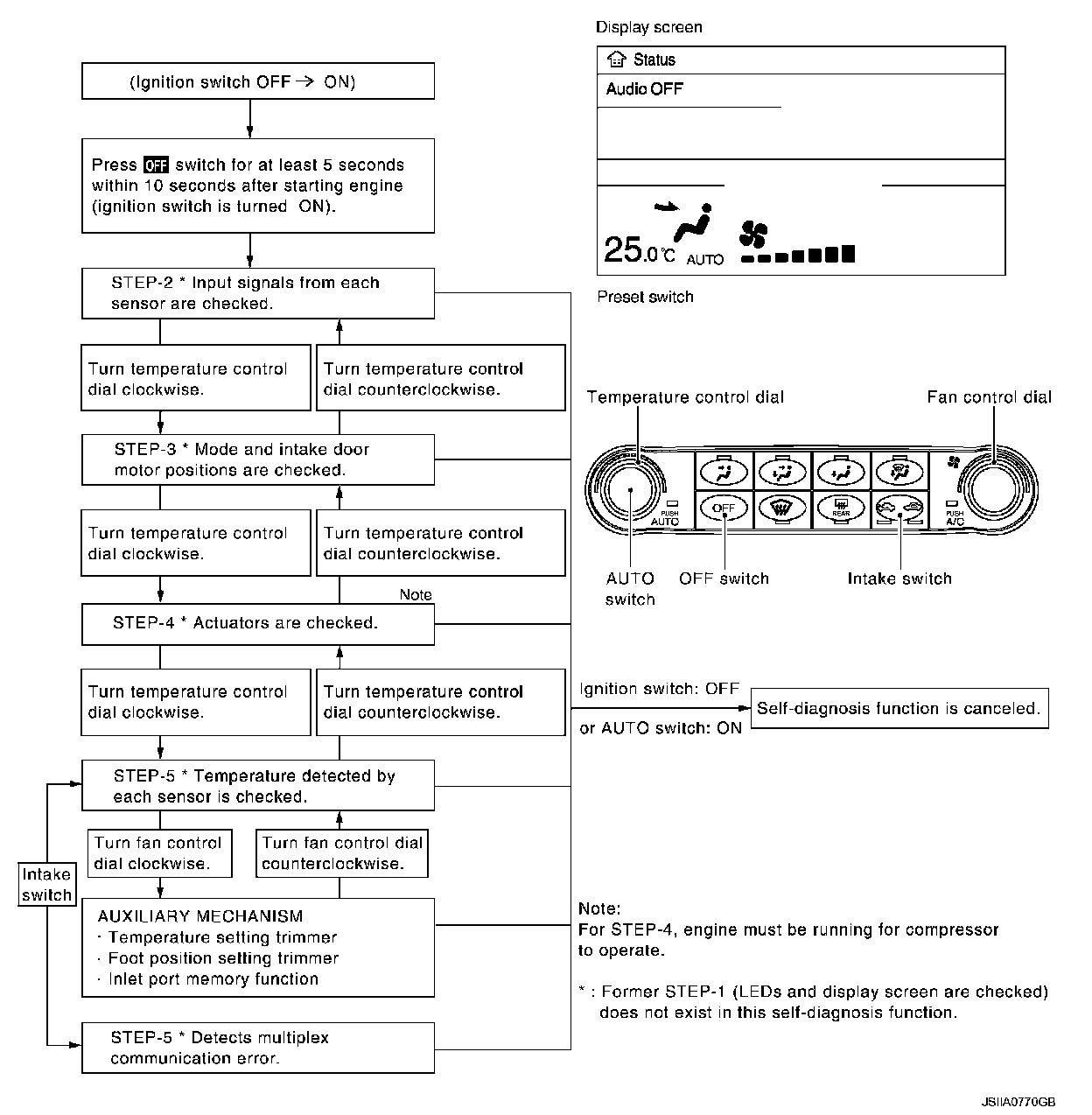

The self-diagnosis system diagnosis sensors, door motors, blower motor, etc. by system line. Refer to applicable sections (items) for details. Shifting from normal control to the self-diagnosis system is accomplished by starting the engine (turning the ignition switch ON) and pressing OFF switch for at least 5 seconds. The OFF switch must be pressed within 10 seconds after starting the engine (ignition switch is turned ON). This system is canceled by either pressing AUTO switch or turning the ignition switch OFF. Shifting from one step is accomplished by means of turning temperature control dial, as required.
Shifting from STEP-5 to AUXILIARY MECHANISM is accomplished by means of turning fan control dial clockwise.

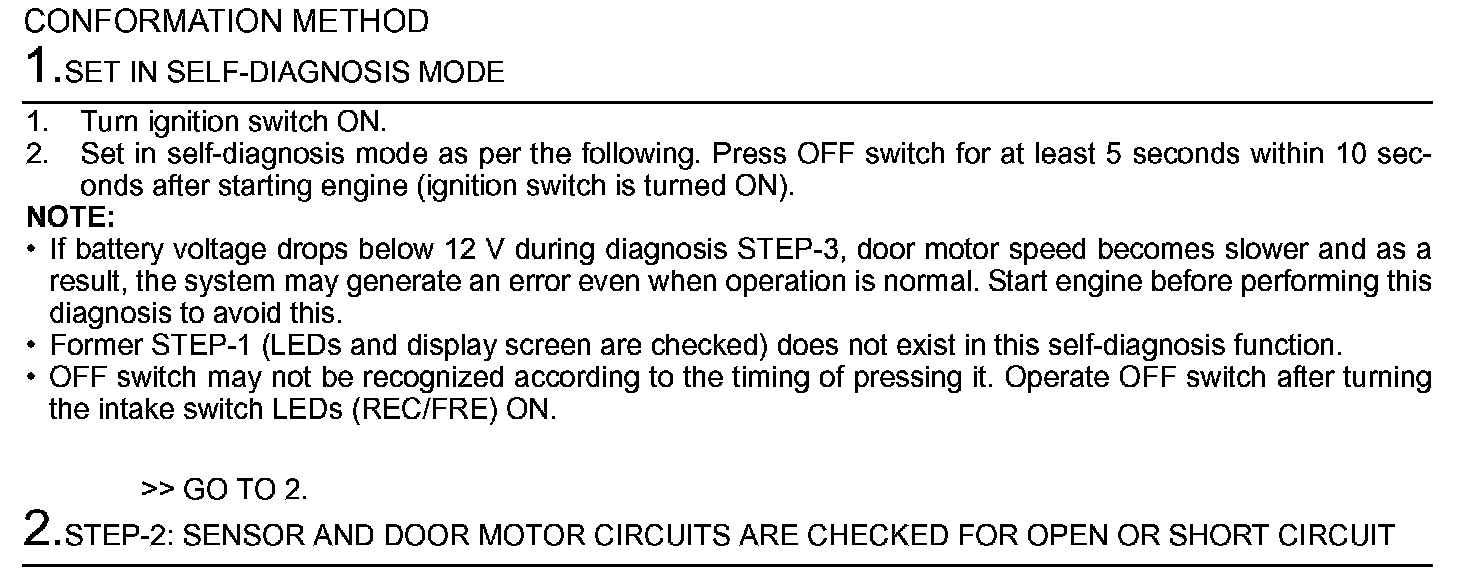

CONFORMATION METHOD
Step 1-2:

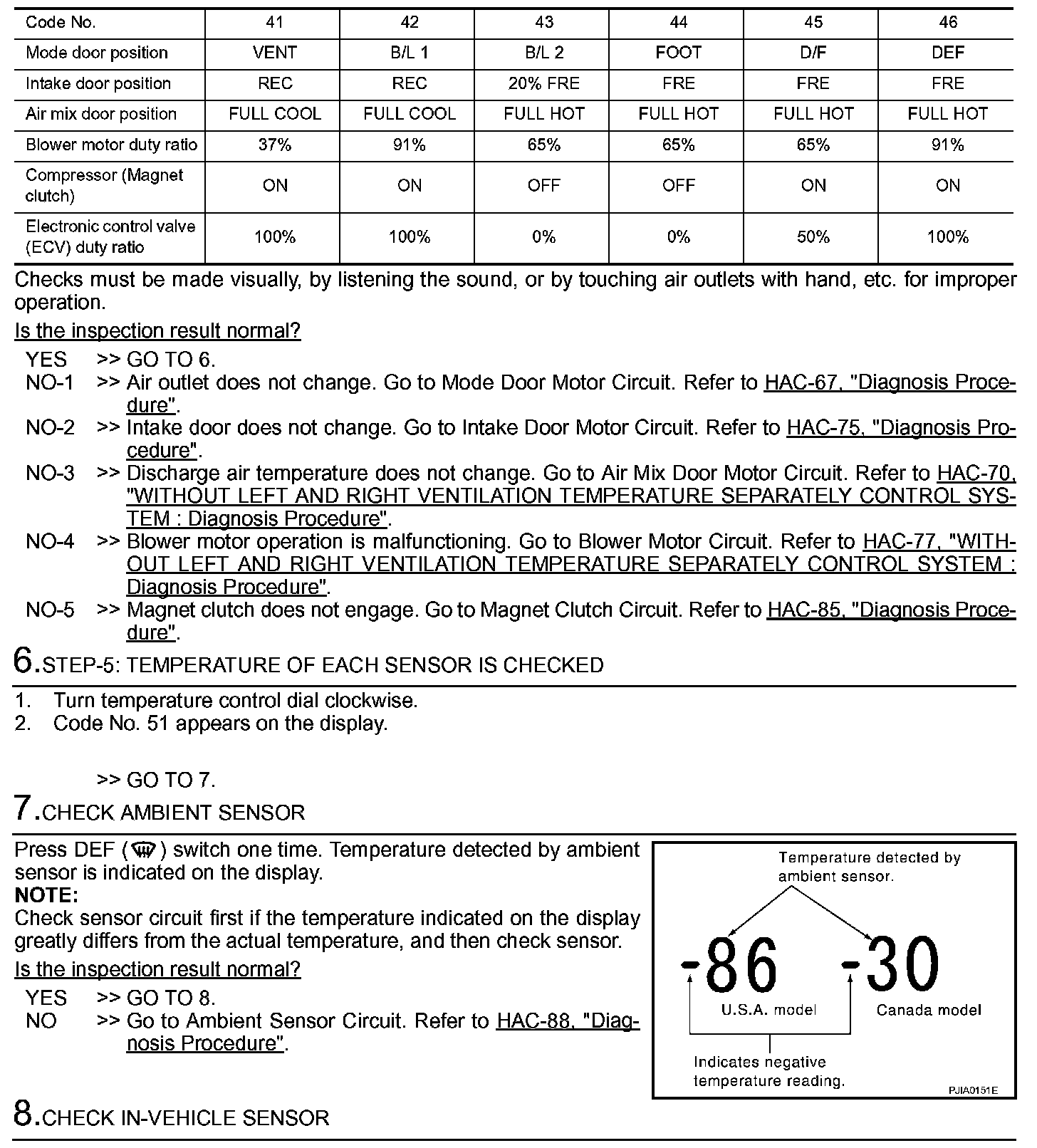

Step 2 (Continued)-5:
