With Left and Right Ventilation Temperature Separately Control System

WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : CONSULT-III Function

CONSULT-III APPLICATION ITEMS






DATA MONITOR

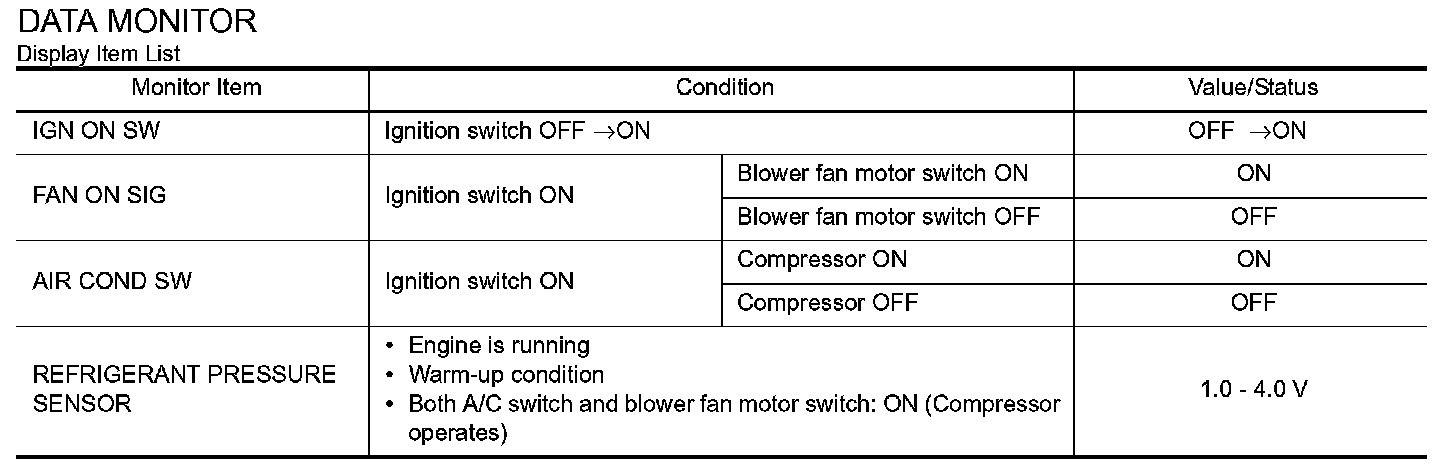

Display Item List - Data Monitor:
