Instrument Cluster / Carrier: Service and Repair

ON-VEHICLE REPAIR

COMBINATION METER

Exploded View

REMOVAL

MWI-160 Exploded View:

DISASSEMBLY

MWI-160 Exploded View:

Removal and Installation

REMOVAL
1. Remove cluster lid A assembly.




2. Remove screw (A) and remove combination meter stay (1).
3. Remove screws (B) and remove cluster lid A cover (2).

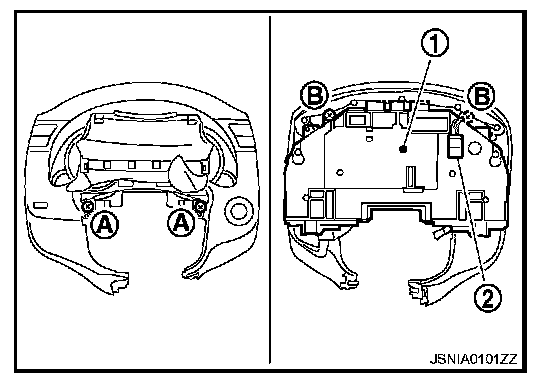

4. Remove screws (A), (B) and remove combination meter (1).
5. Remove meter control switch connector (2) from combination meter (1).

INSTALLATION
Install in the reverse order of removal.

Disassembly and Assembly

DISASSEMBLY
Disengage the tabs to separate front cover.

ASSEMBLY
Assemble in the reverse order of disassembly.
