Meter Control Switch
METER CONTROL SWITCHExploded View
DISASSEMBLY

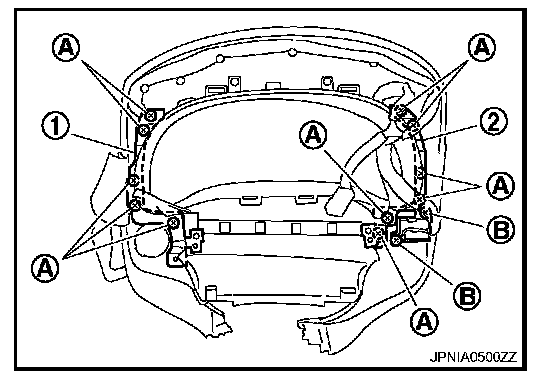

MWI-163 Exploded View:
Removal and Installation
REMOVAL
1. Remove combination meter.
2. Remove screws (A) and remove bracket RH (1), LH (2).
3. Remove screws (B) and remove meter control switch.
INSTALLATION
Install in the reverse order of removal.
