Unified Meter and A/C AMP.

Unified Meter and A/C AMP.

TERMINAL LAYOUT

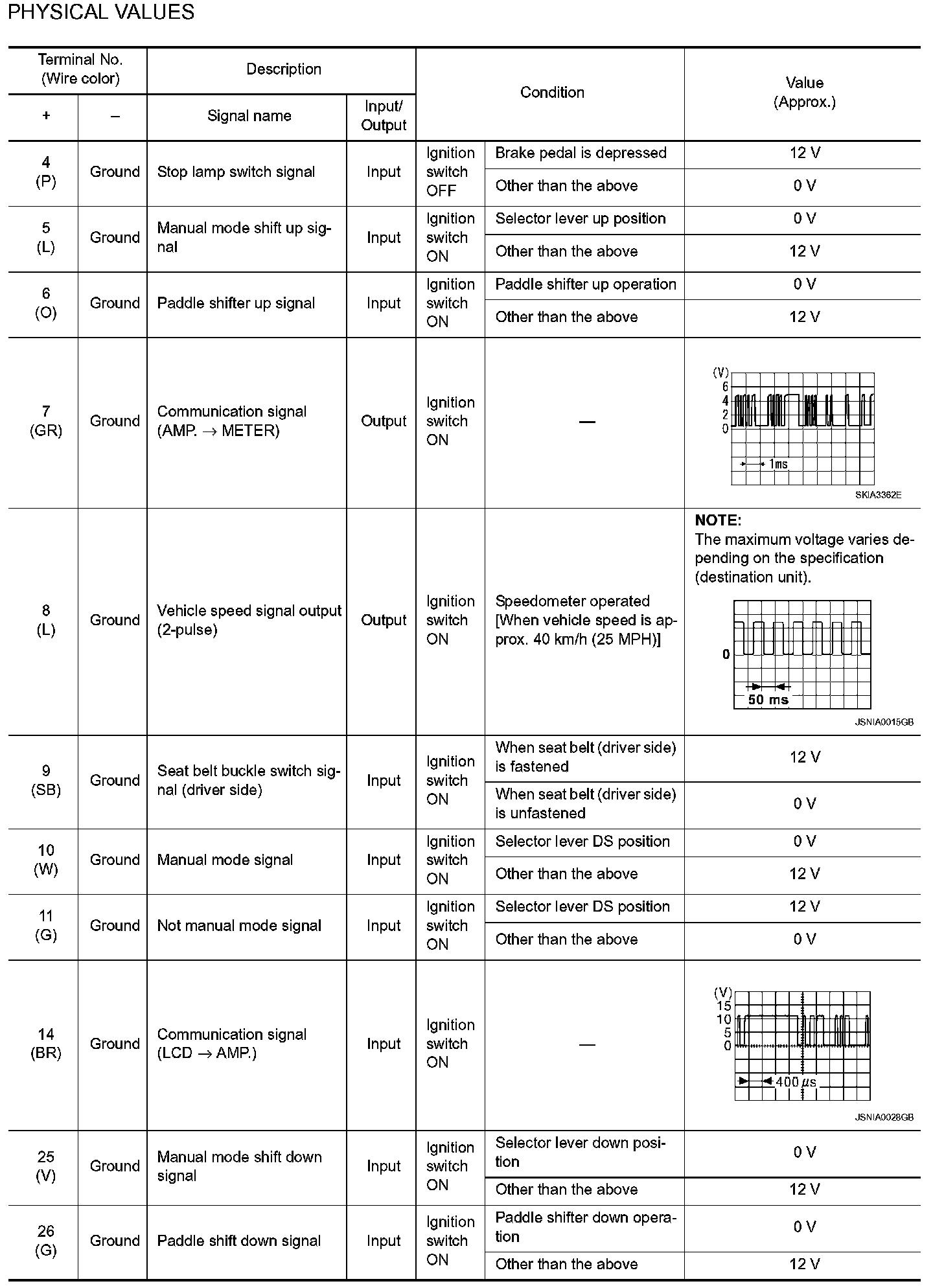

PHYSICAL VALUES

Terminals And Reference Values (Part 1):




Terminals And Reference Values (Part 2):

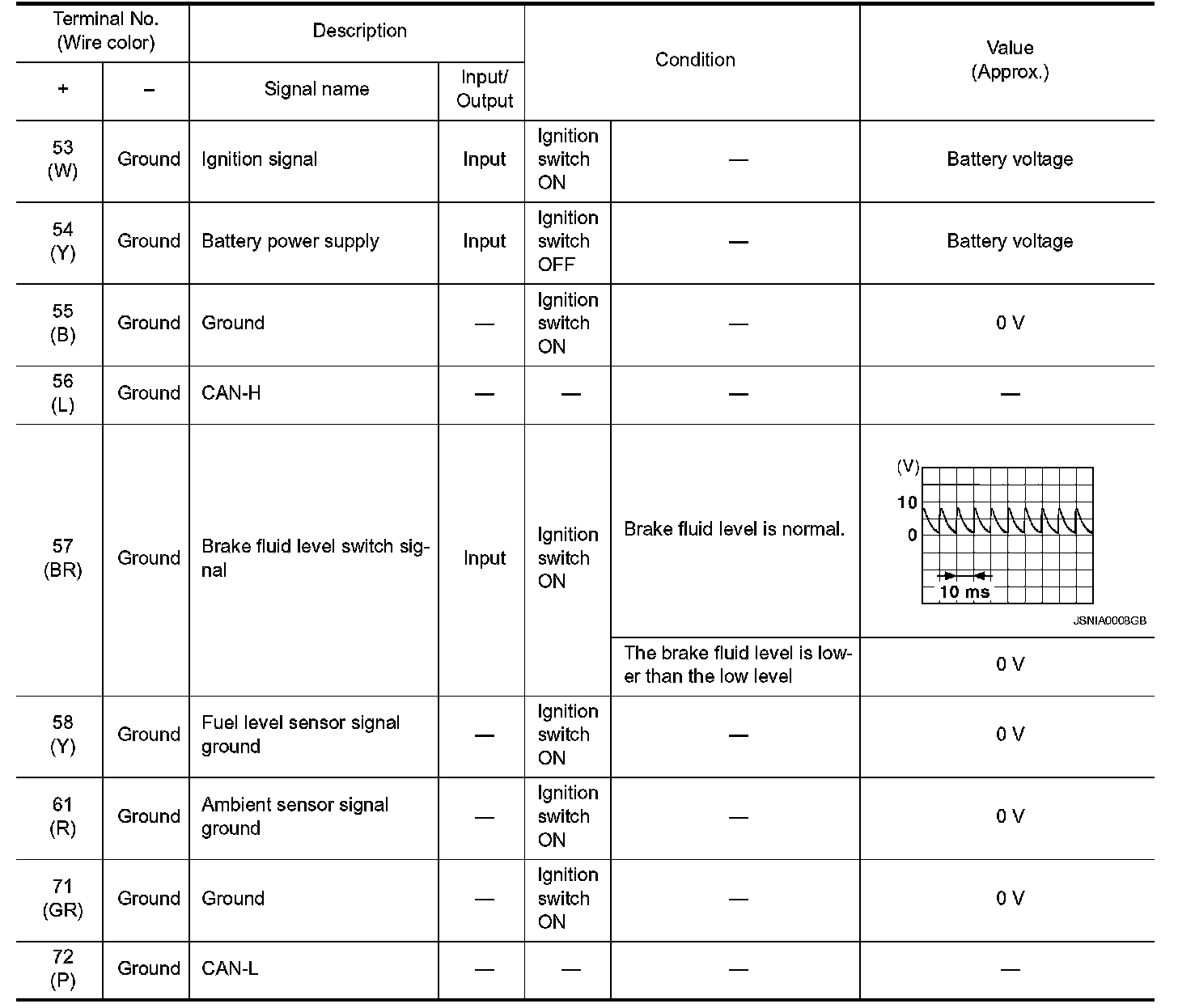

Terminals And Reference Values (Part 3):
