License Plate Lamp: Service and Repair

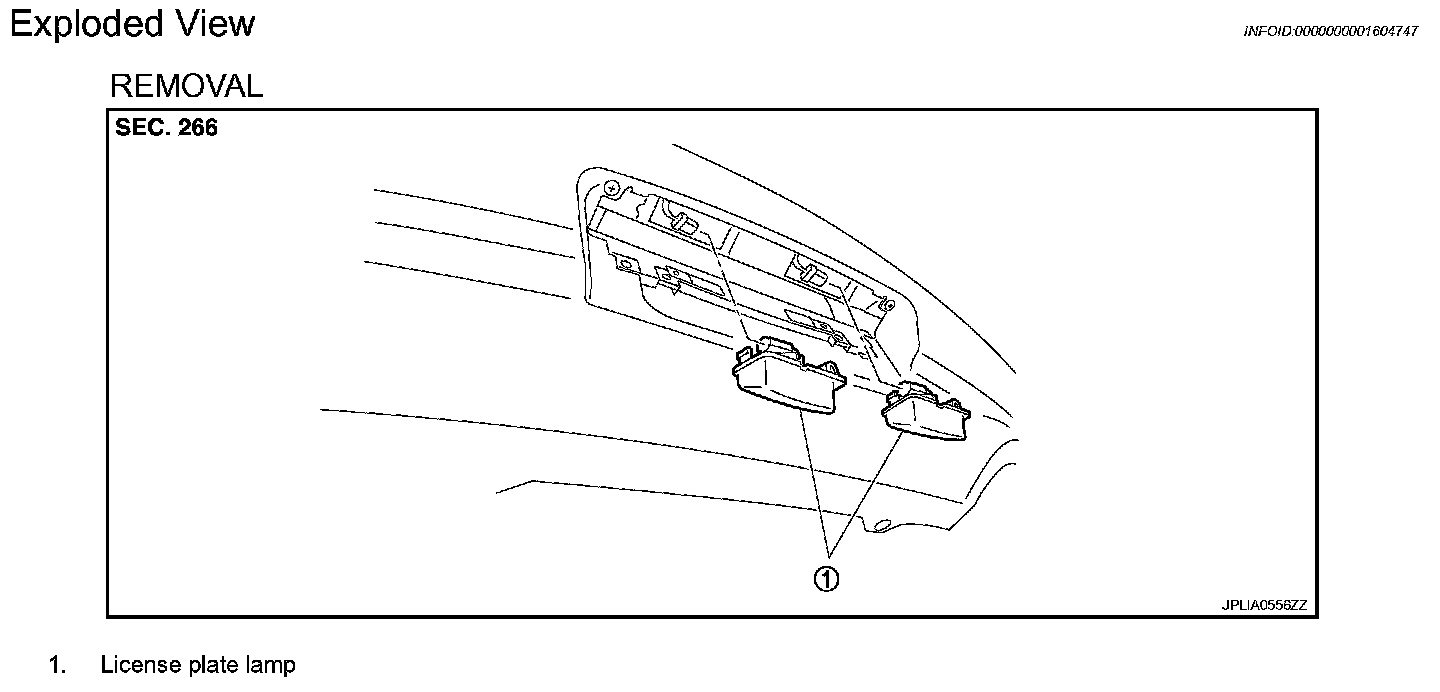

LICENSE PLATE LAMPExploded View
EXL-204 Exploded View:
Removal and Installation
CAUTION: Disconnect the battery negative terminal or the fuse.
REMOVAL

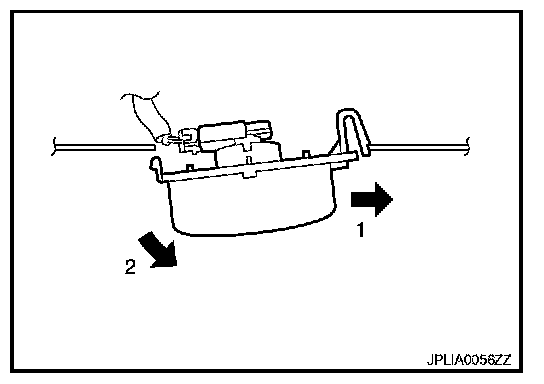

1. Remove the license plate lamp in numerical order.
2. Disconnect the connector.
3. Remove license plate lamp.
INSTALLATION
1. Connect the connector.
2. Fix the pawl side. And then push the resin clip side.
Replacement
CAUTION: Disconnect the battery negative terminal or the fuse.
