Exterior Lighting System
>>
Power Supply and Ground Circuit
>>
AFS Control Unit
AFS Control Unit

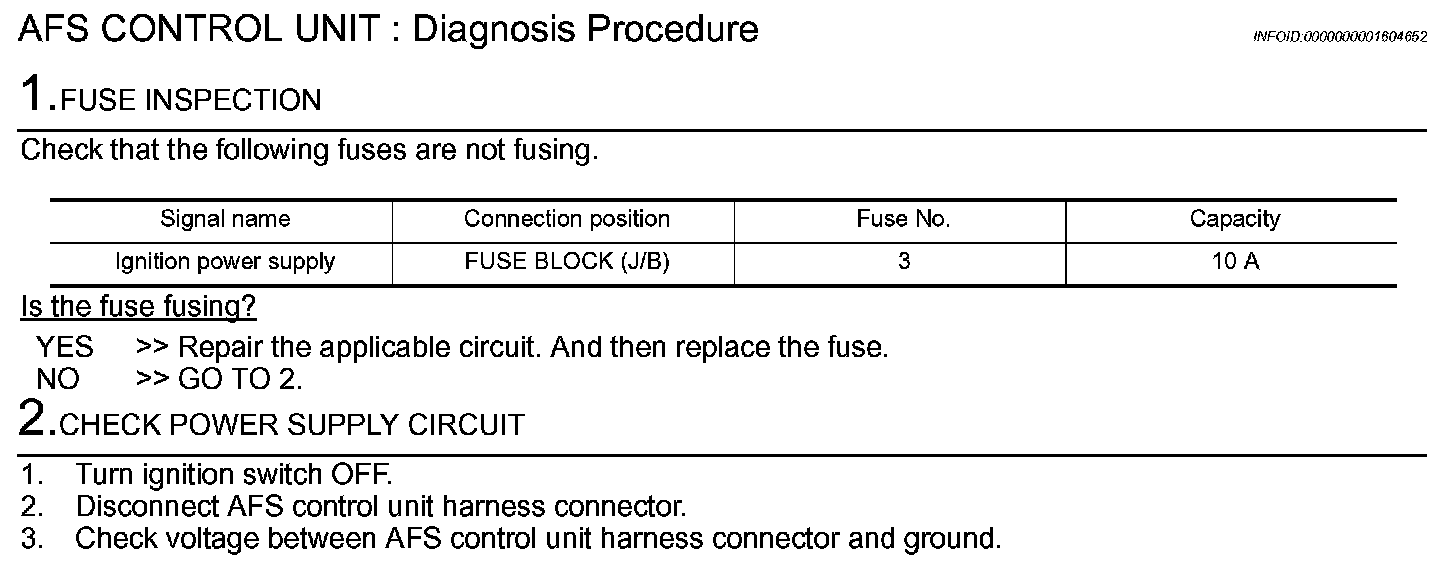

Step 1-2:

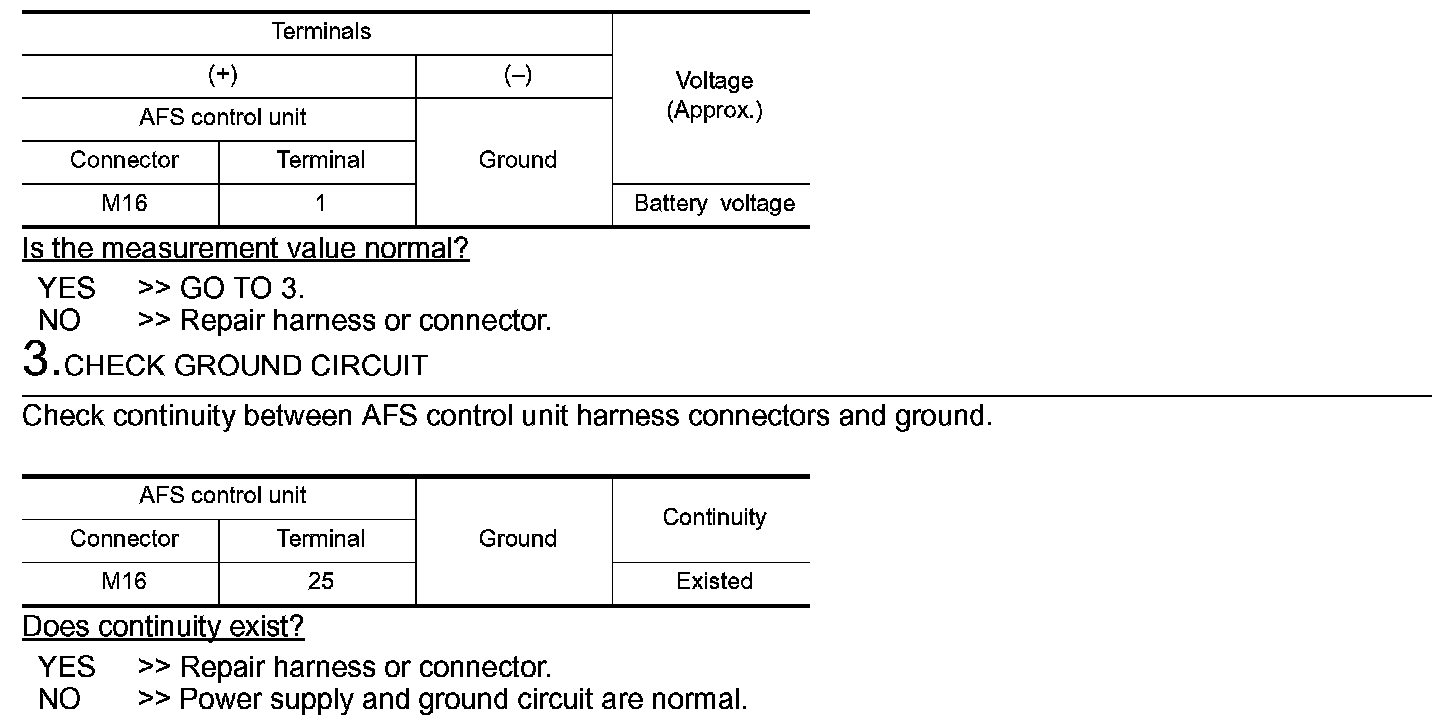

Step 2 (Continued)-3:
