IPDM E/R (Intelligent Power Distribution Module Engine Room)
IPDM E/R (Intelligent Power Distribution Module Engine Room)

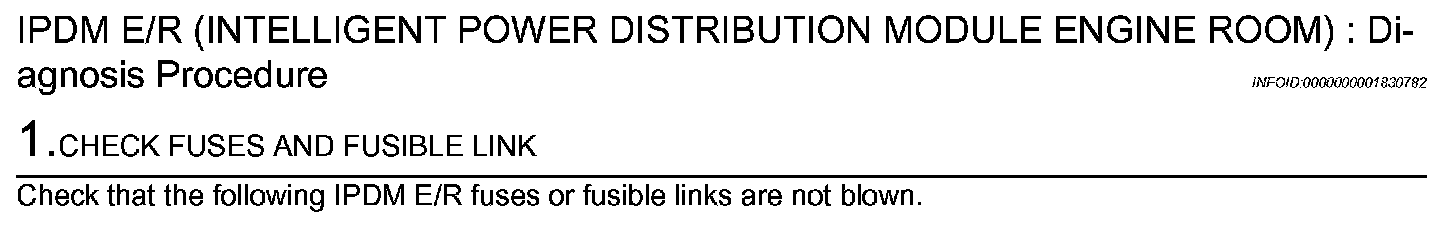

Step 1:

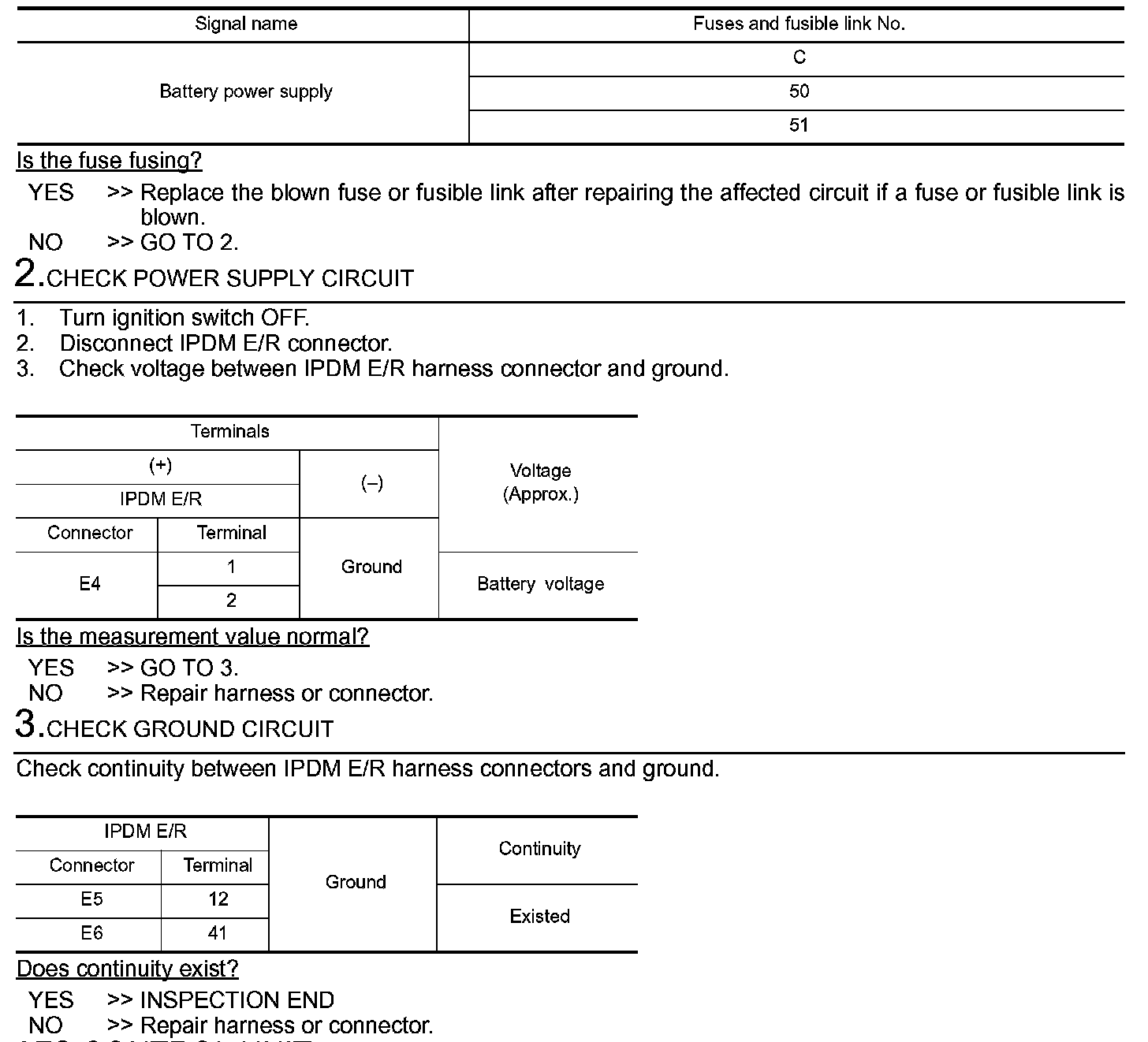

Step 1 (Continued)-3:
