Trunk Room Lamp Circuit
TRUNK ROOM LAMP CIRCUITDescription
Controls the trunk room lamp (ground side) to turn the trunk room lamp ON and OFF.

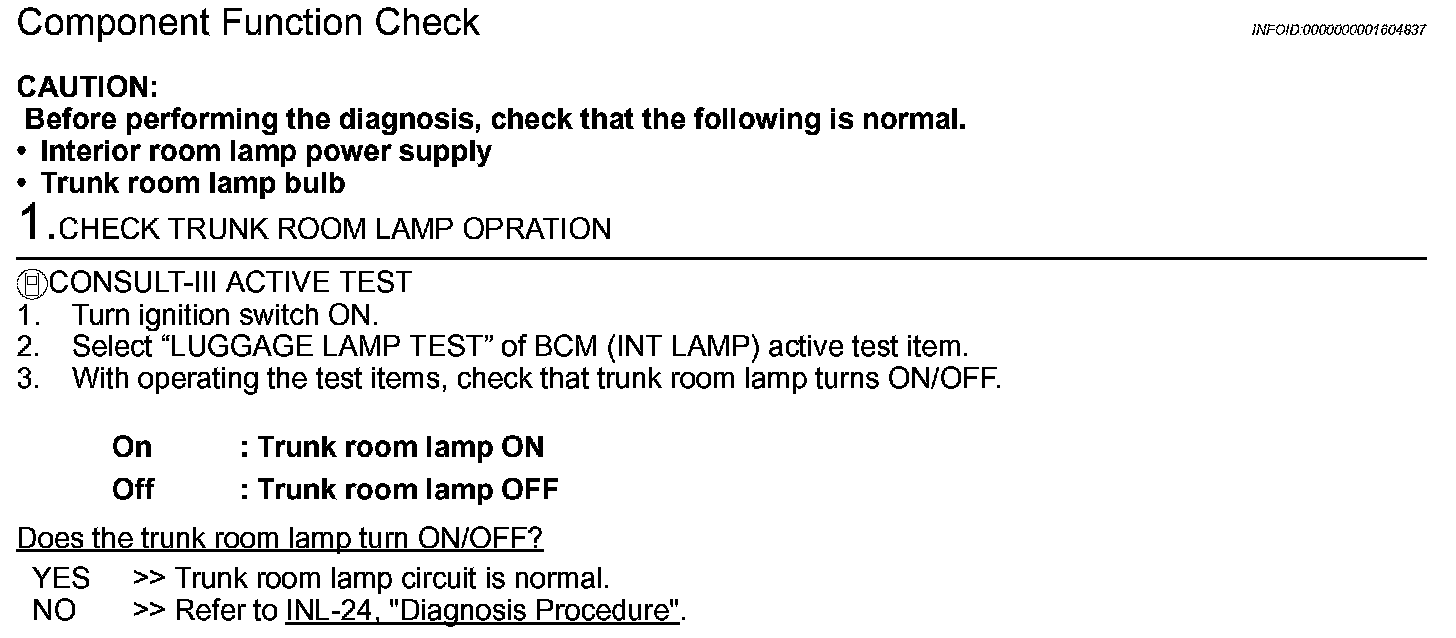

Component Function Check
Step 1:

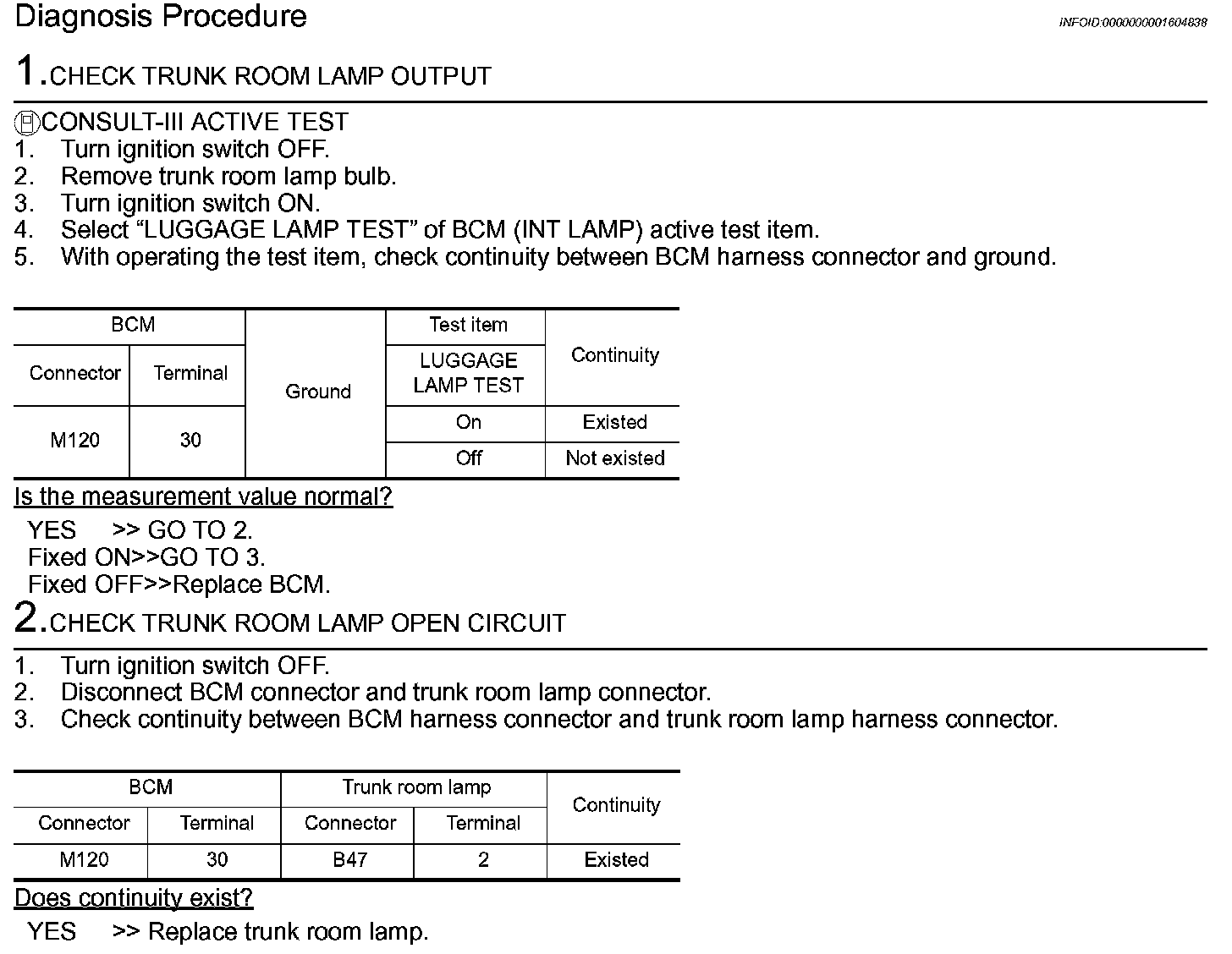

Diagnosis Procedure
Step 1-2:

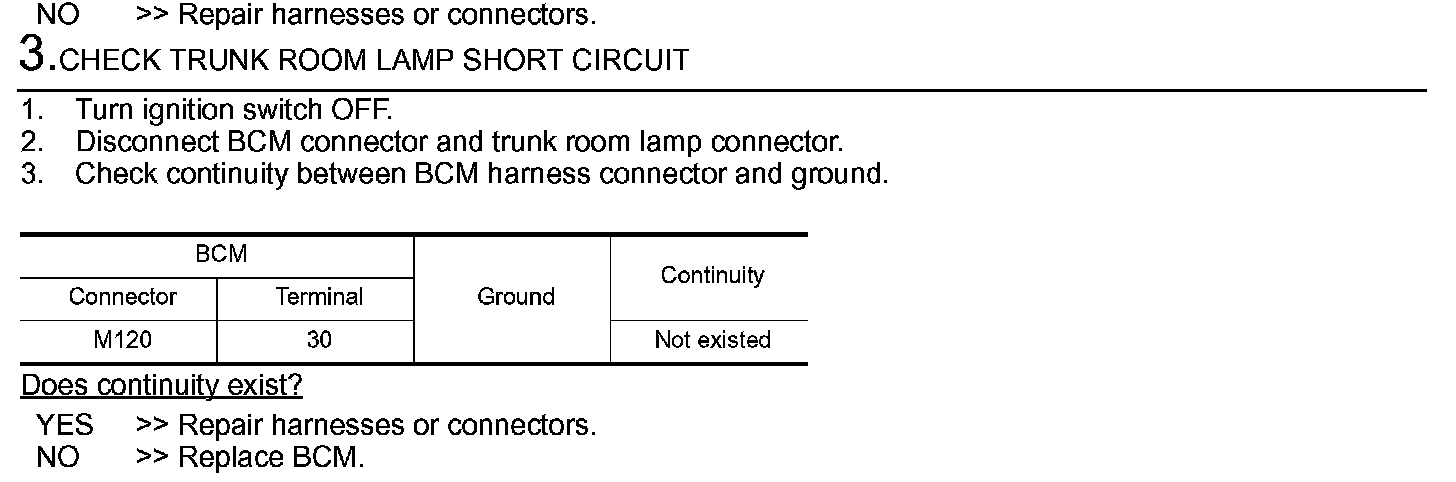

Step 2 (Continued)-3:
Description
Controls the trunk room lamp (ground side) to turn the trunk room lamp ON and OFF.
Component Function Check
Diagnosis Procedure
