Exterior Lighting System
>>
AFS Control Unit
AFS Control Unit
AFS CONTROL UNIT

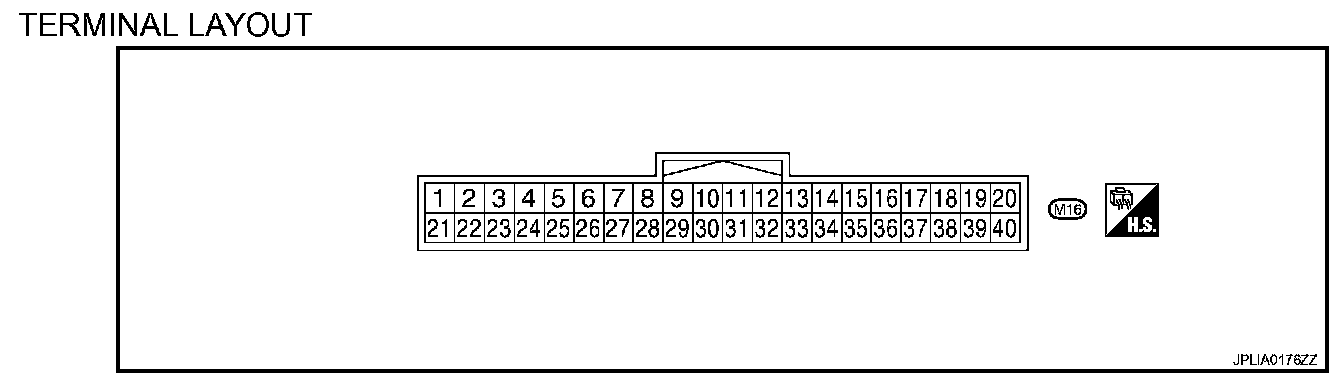

TERMINAL LAYOUT
PHYSICAL VALUES

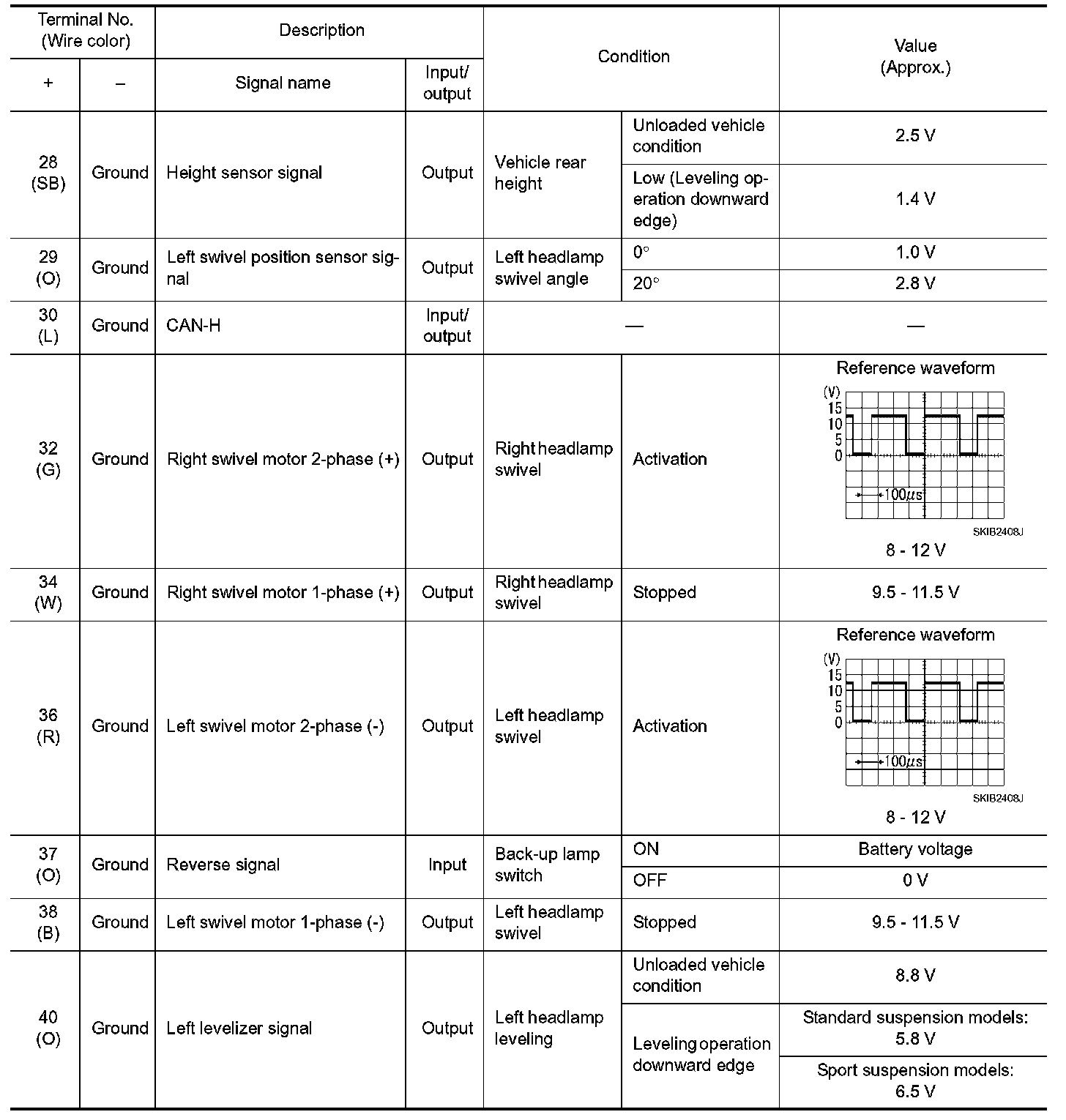

Terminals And Reference Values (Part 1):
Terminals And Reference Values (Part 2):
