Trunk Lamp: Service and Repair

TRUNK ROOM LAMP

Exploded View

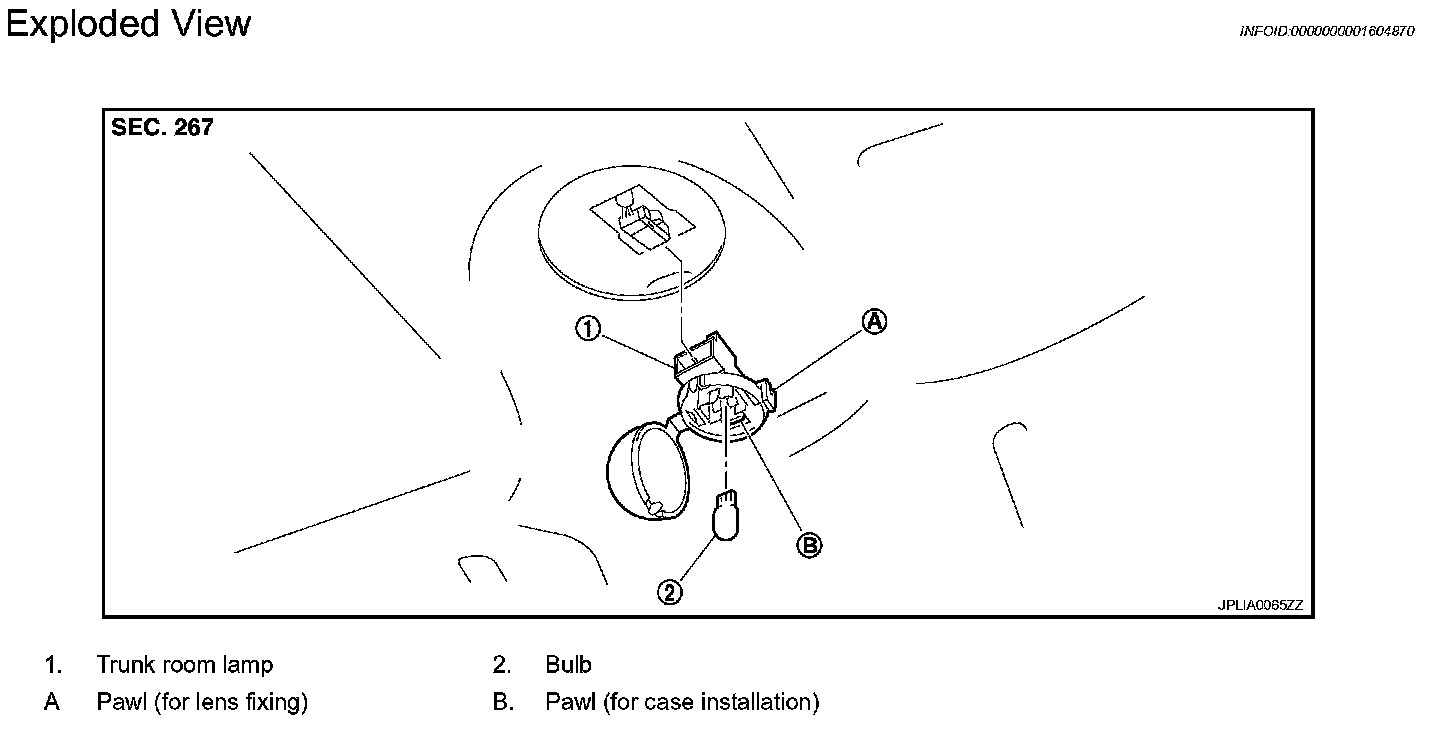

INL-102 Exploded View:

Removal and Installation

CAUTION: Disconnect the battery negative terminal or the fuse.

REMOVAL

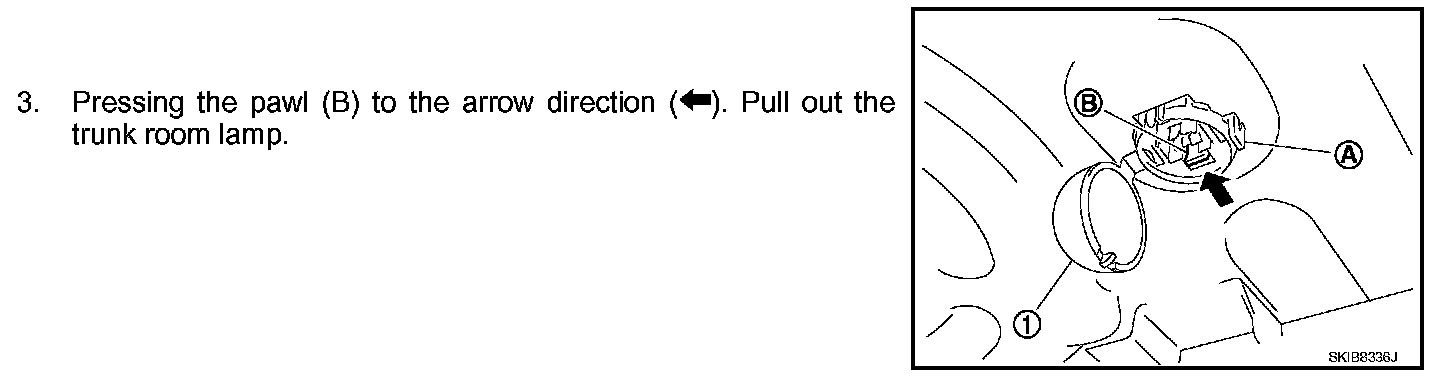

1. Widen the pawl (A). Open the lens (1).
2. Remove the bulb.






4. Disconnect the connector.
5. Remove the trunk room lamp.


INSTALLATION
Install in the reverse order of removal.

Replacement

CAUTION: Disconnect the battery negative terminal or the fuse.
