VVEL Control Module

VVEL CONTROL MODULE

Reference Value

TERMINAL LAYOUT






PHYSICAL VALUES

NOTE:
- VVEL control module is located behind the IPDM E/R. For this inspection, remove hoodledge cover (RH).
- Specification data are reference values and are measured between each terminal and ground.
- Pulse signal is measured by CONSULT-III.

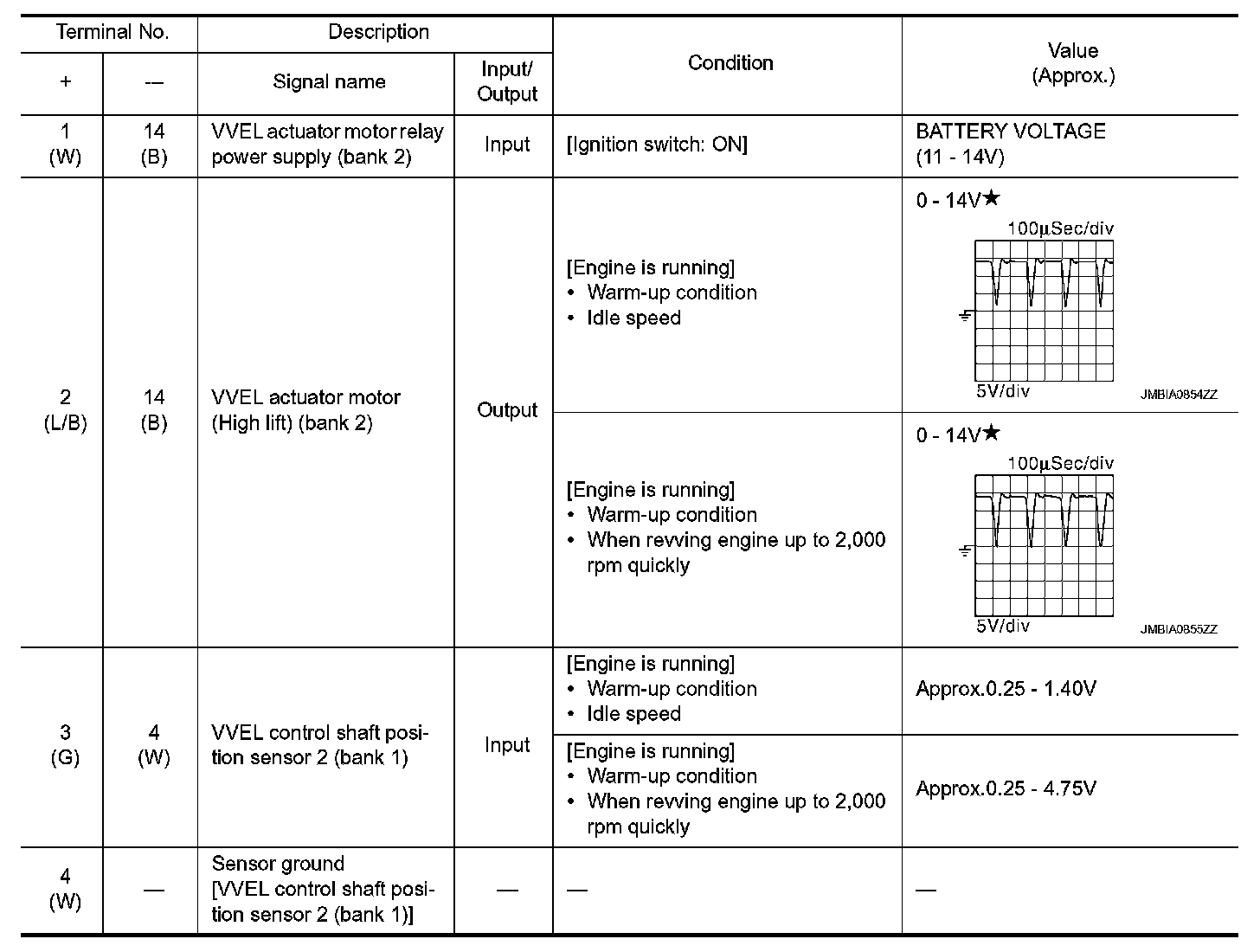

Terminals And Reference Values (Part 1):

Terminals And Reference Values (Part 2):

Terminals And Reference Values (Part 3):

Terminals And Reference Values (Part 4):
