Occupant Classification System

OCCUPANT CLASSIFICATION SYSTEM

System Diagram

OCCUPANT CLASSIFICATION SYSTEM






System Description
This Occupant Classification System has the following function.

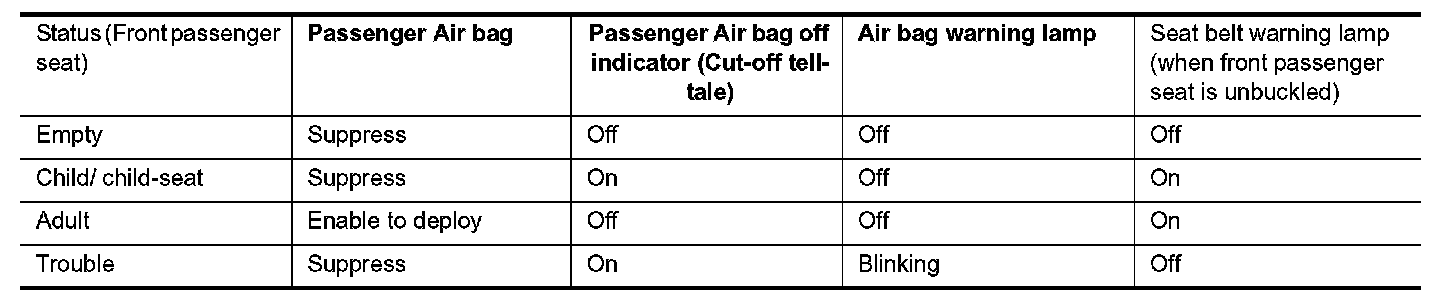

1. Suppress the deployment of passenger air bag when passenger seat is empty, or when occupied by child and child-seat. Turns on passenger air bag off indicator (cut-off telltale) when passenger seat is occupied by child-seat and child. {Occupant Classification System (OCS).}
2. Indicates malfunction portion with blinking times of air bag warning lamp in diagnosis mode.
3. Indicates the malfunctioning record by CONSULT-III.

NOTE: Operation of ACU when ACU receives information from Occupant Classification System (OCS)






Component Description






Component Parts
- OCS control unit, Seat sensor mat.
- Passenger air bag OFF indicator (cut-off telltale).
