SRS Air Bag System
FUNCTION DIAGNOSISSRS AIR BAG SYSTEM

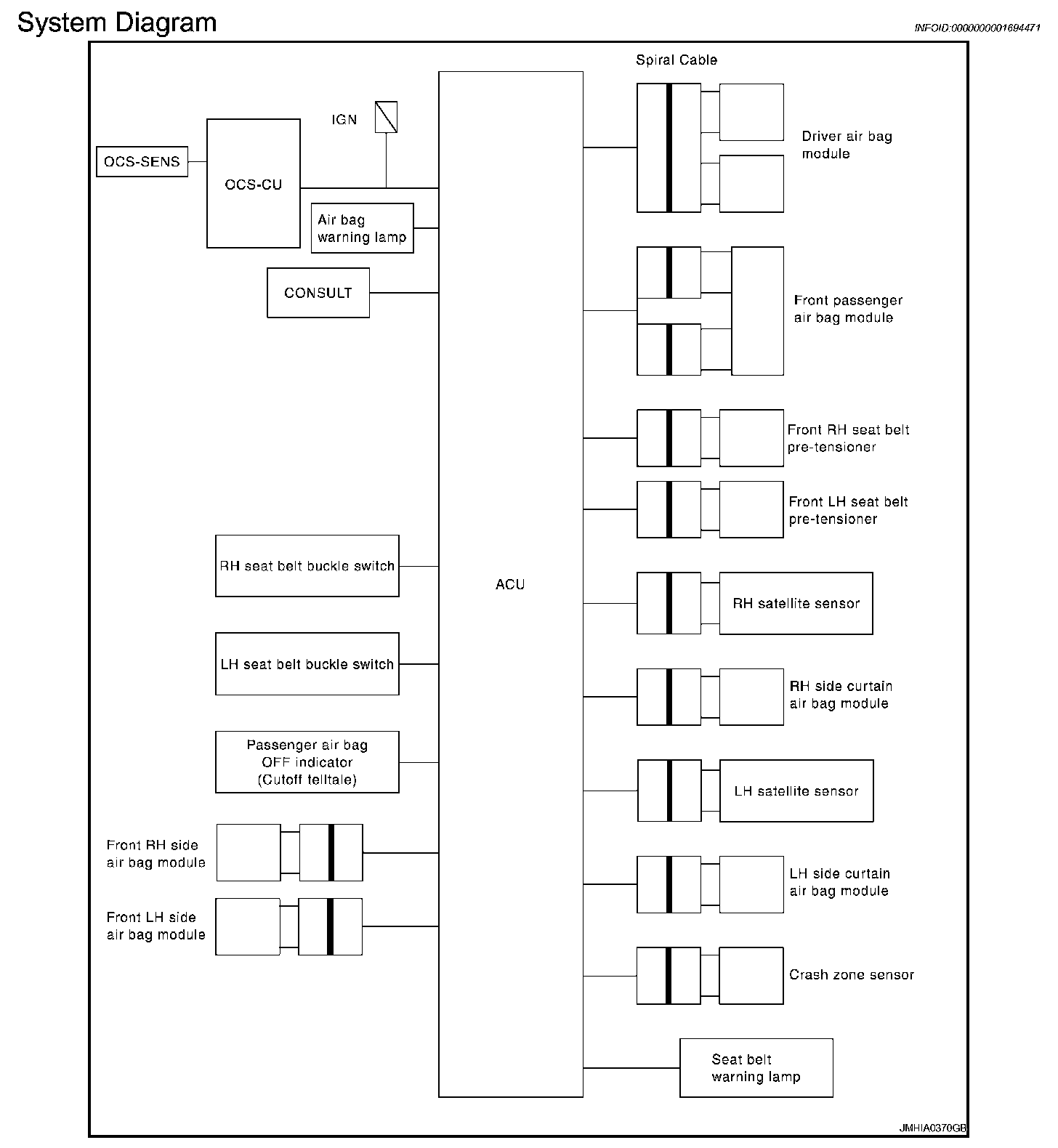

System Diagram
System Description
This SRS Air Bag System has the following function.
1. Detects crash and supplies the energy for deploying air bag and seat belt pre-tensioner.
2. Detects electrical trouble in air bag system and seat belt pre-tensioner system, records trouble code, and blinking air bag warning lamp.
3. Detects and records the deployment of air bag and seat belt pre-tensioner, and turns on air bag warning lamp.
4. Indicates malfunctioning portion with blinking times of air bag warning lamp in diagnosis mode.
5. Indicate the malfunctioning record by CONSULT-III.
6. Suppress the deployment of passenger air bag when the passenger seat is empty or when occupied by turns on passenger air bag off indicator (cut-off telltale) when passenger seat is occupied with a child-seat and child. {Occupant Classification System (OCS).}
7. Turn on seat belt warning lamp when the Occupant Classification System (OCS) option is adult or child and the passenger seat belt buckle switch is not on.
Component Description
- Air bag sensor are prepared for operation while the ignition switch is in the ON or START position.
- The operation of supplemental restraint system is different from collision modes applications. For example, the driver air bag module and front passenger air bag module are activated in a frontal collision but not in a side collision.
- SRS configurations which are activated for some collision modes are as follows.
