Flow of Diagnosis
Flow of Diagnosis
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work Flow

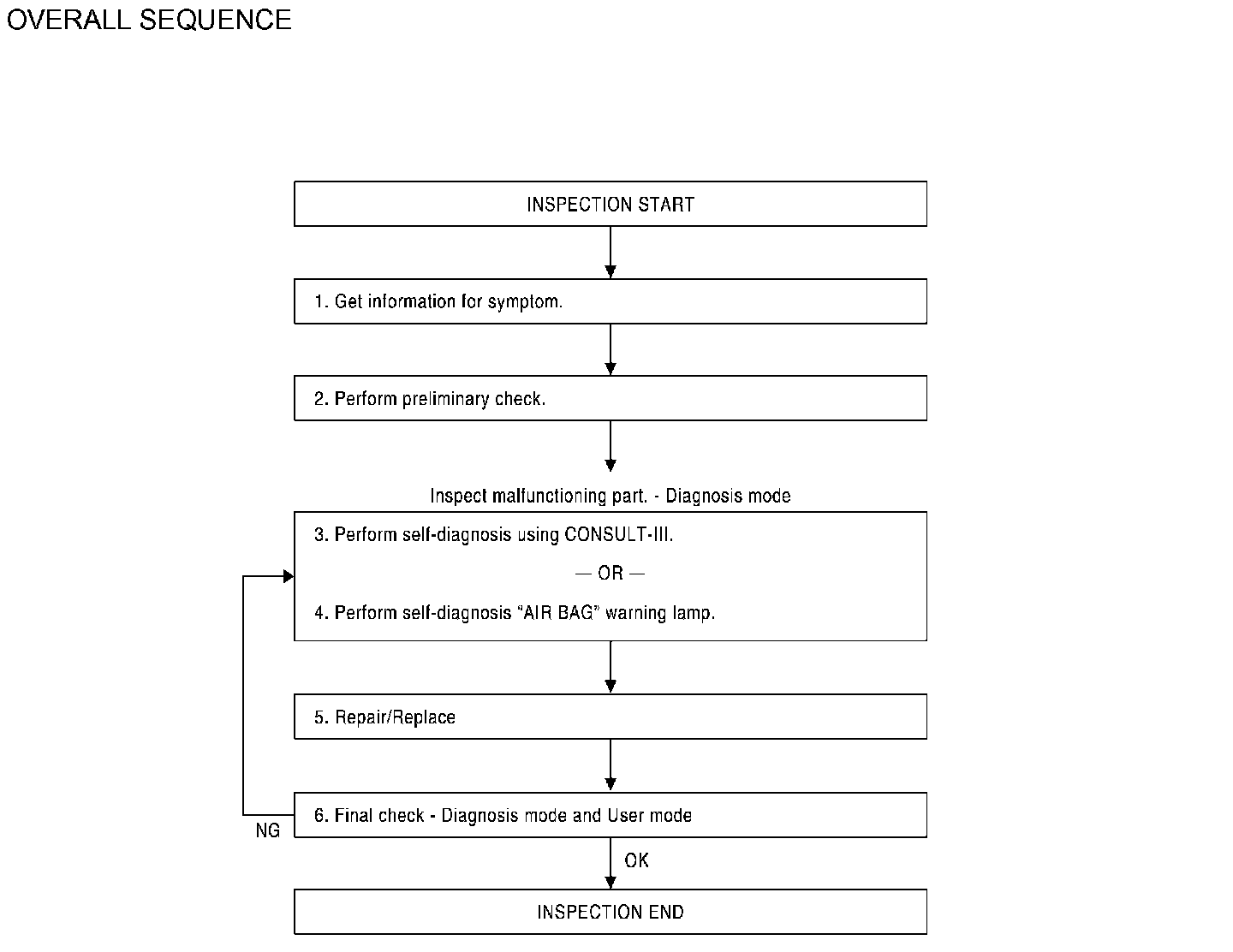

OVERALL SEQUENCE
Work Flow:

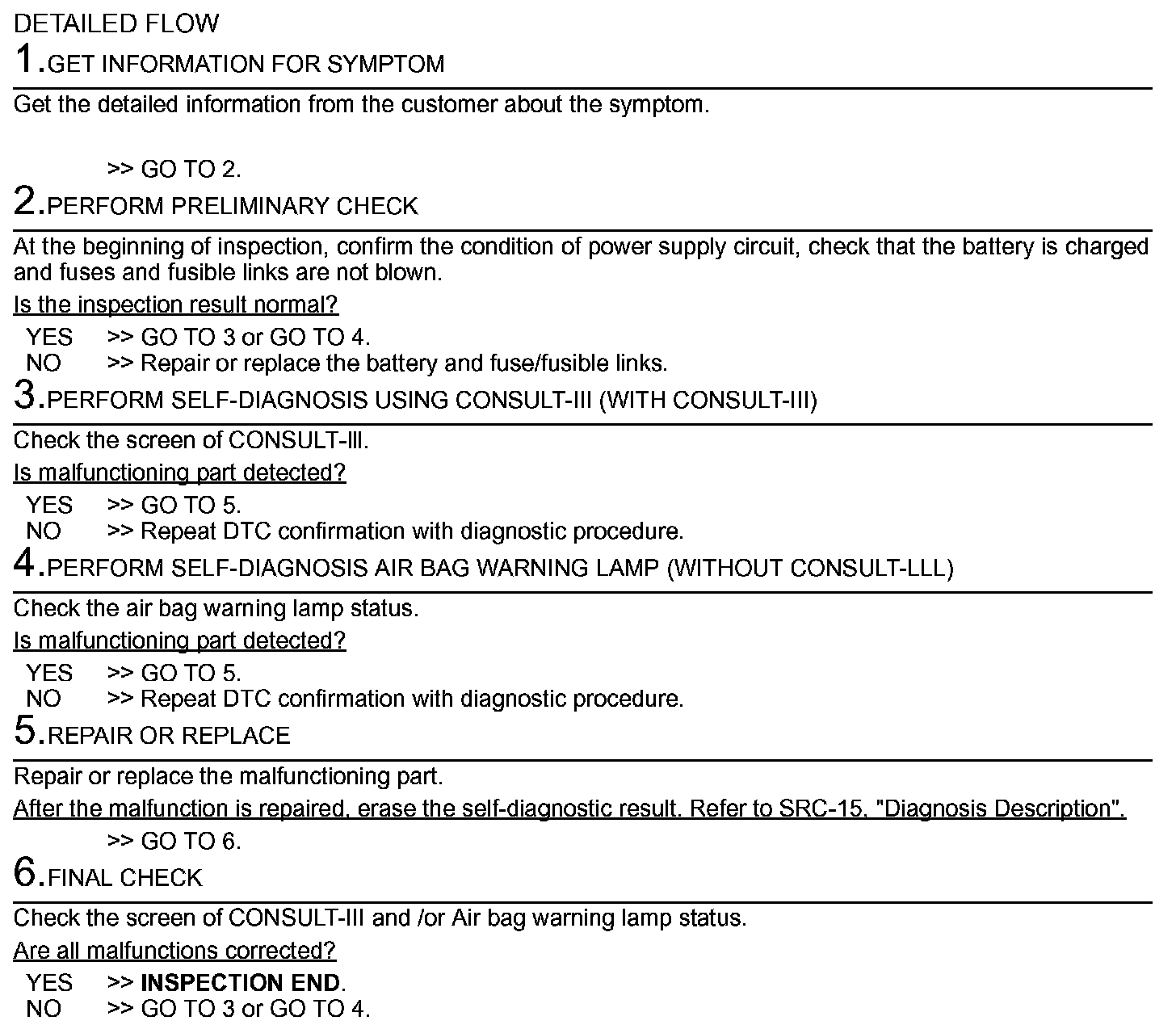

DETAILED FLOW
Step 1-6:
