Passenger Seat Belt Warning System

PASSENGER SEAT BELT WARNING SYSTEM

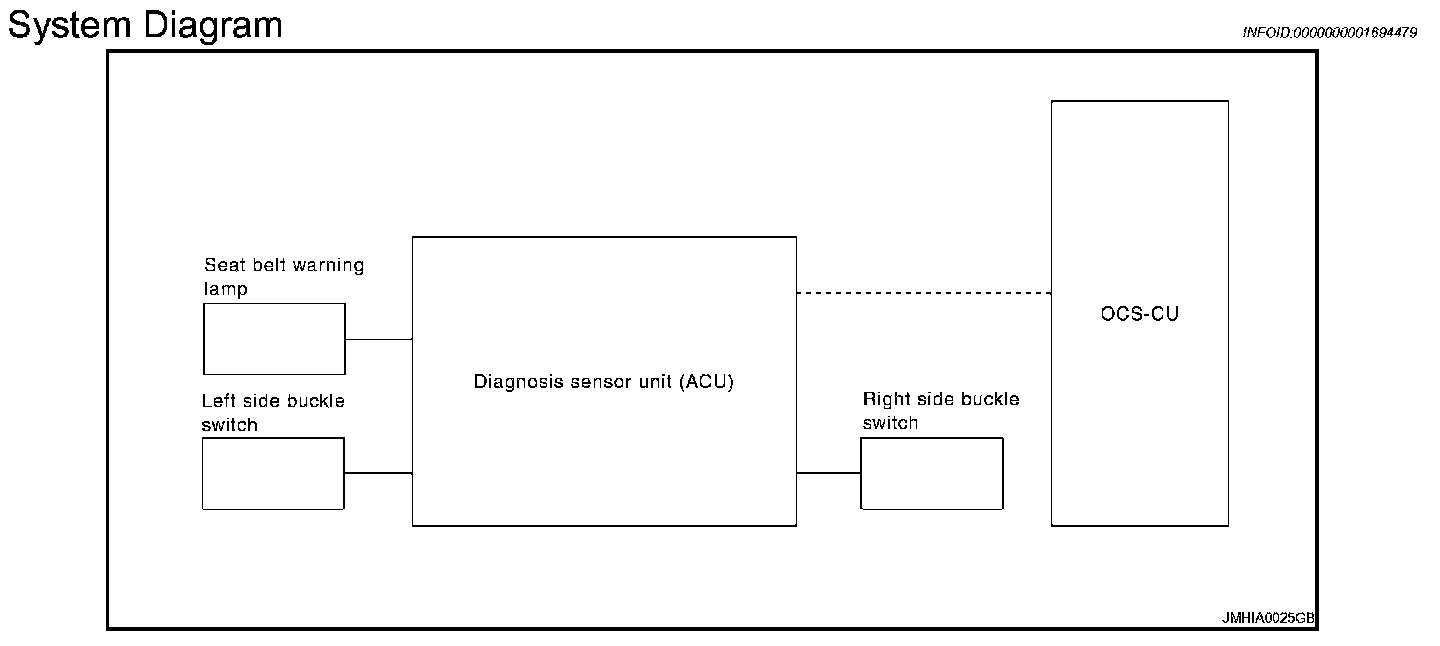

System Diagram






System Description
This Passenger Seat Belt Warning System has the following function.

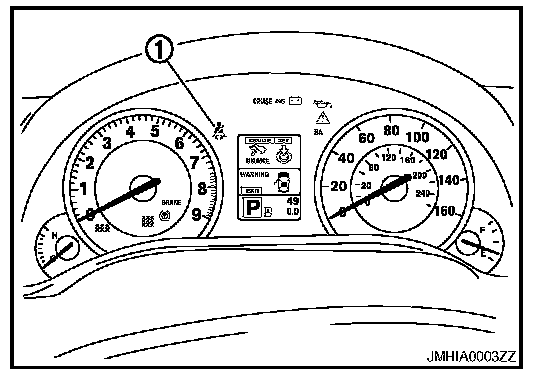

1. Turns ON seat belt warning lamp (1), when the OCS judges adult or child in the passenger seat and the passenger seat belt buckle switch is not on.

NOTE: In addition, a seat belt warning lamp illuminates and a seat belt alarm sounds, when the driver seat belt buckle switch is not on, This does not relate to the air bag sensor. (Refer to BCM.)

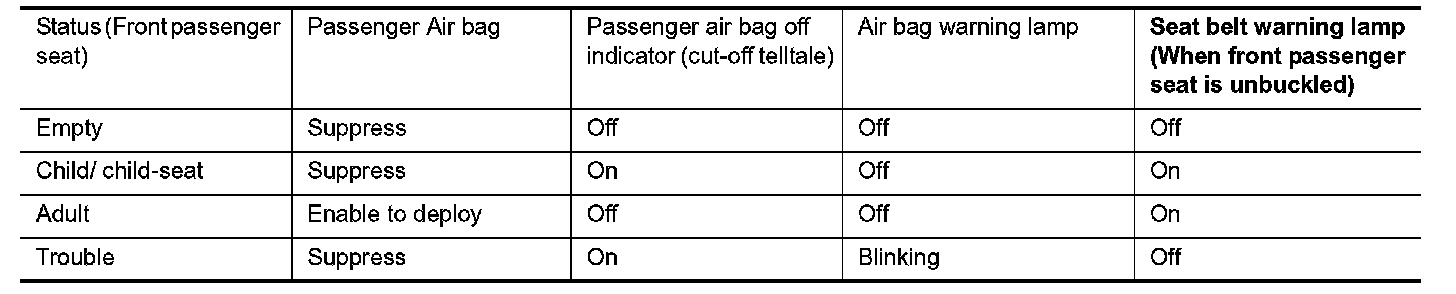

NOTE: Operation of ACU when ACU receives information from Occupant Classification System (OCS)






Component Description






Component parts

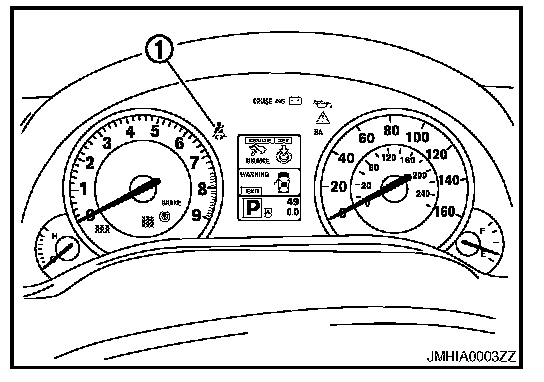

- Seat belt warning lamp (1).
- Seat belt buckle switch.
