Seat Belt Tension Reducer System
FUNCTION DIAGNOSISSEAT BELT TENSION REDUCER SYSTEM
System Diagram
System Description
- The seat belt tension reducer is adopted as the standard for front seat of all models.
- During seat belt tension reducer operation, the tension reducer reduces the retracting force of the spring in the seat belt to decrease the feeling of pressure.
OPERATION DESCRIPTION
- When turning the ignition switch to ON, the power is supplied to the front seat tension reducer terminal 1.
- When fastening the seat belt (turning the seat belt buckle switch to ON) with ignition switch ON, the power is grounded from front seat tension reducer terminal 2 to front seat belt buckle switch terminal 3, and seat belt buckle switch terminal 2 via seat belt buckle switch. Then, the tension reducer is turned to ON to hold the belt.
- When releasing the seat belt (turning the seat belt buckle switch to OFF), the circuit is not grounded. The tension reducer is turned to OFF, and then the belt is not held.

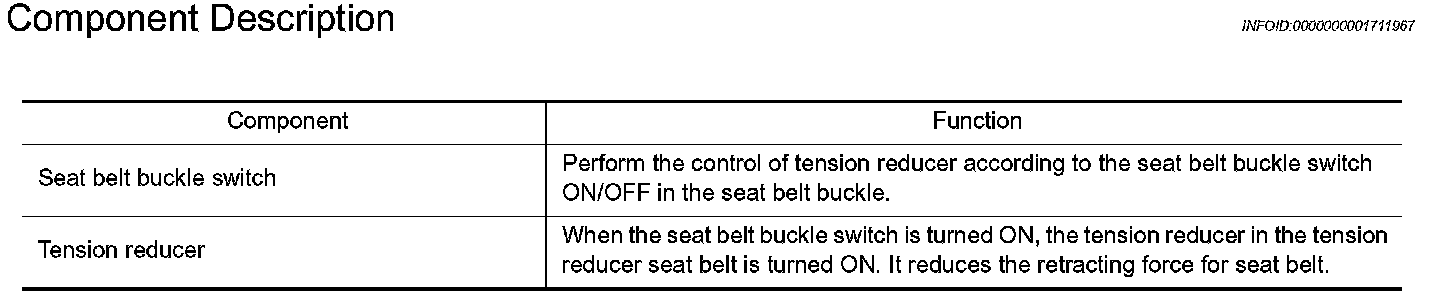

Component Description
