Home >> Infiniti >> 2008 >> G37 Coupe V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

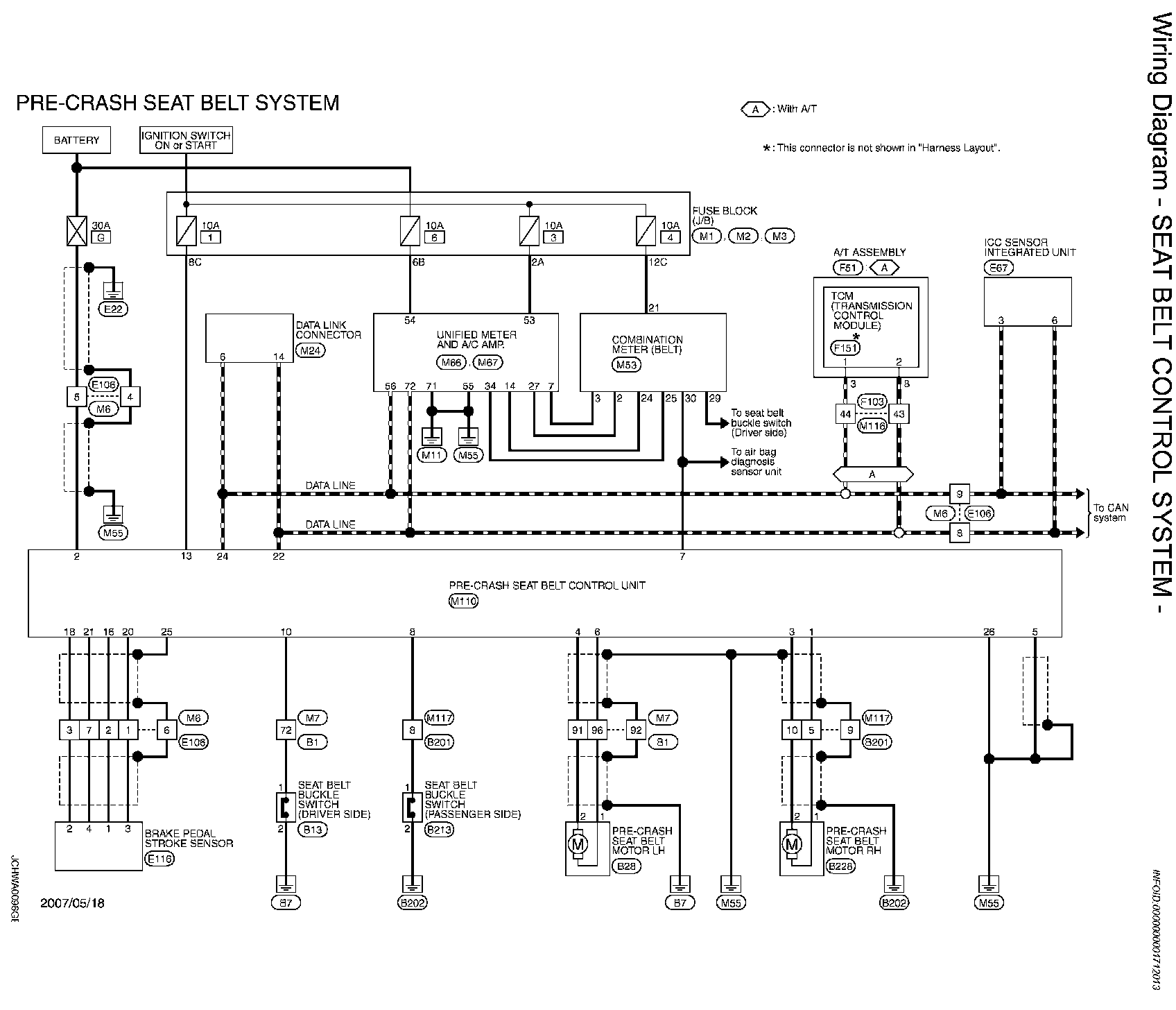

Wiring Diagram - SEAT BELT CONTROL SYSTEM -

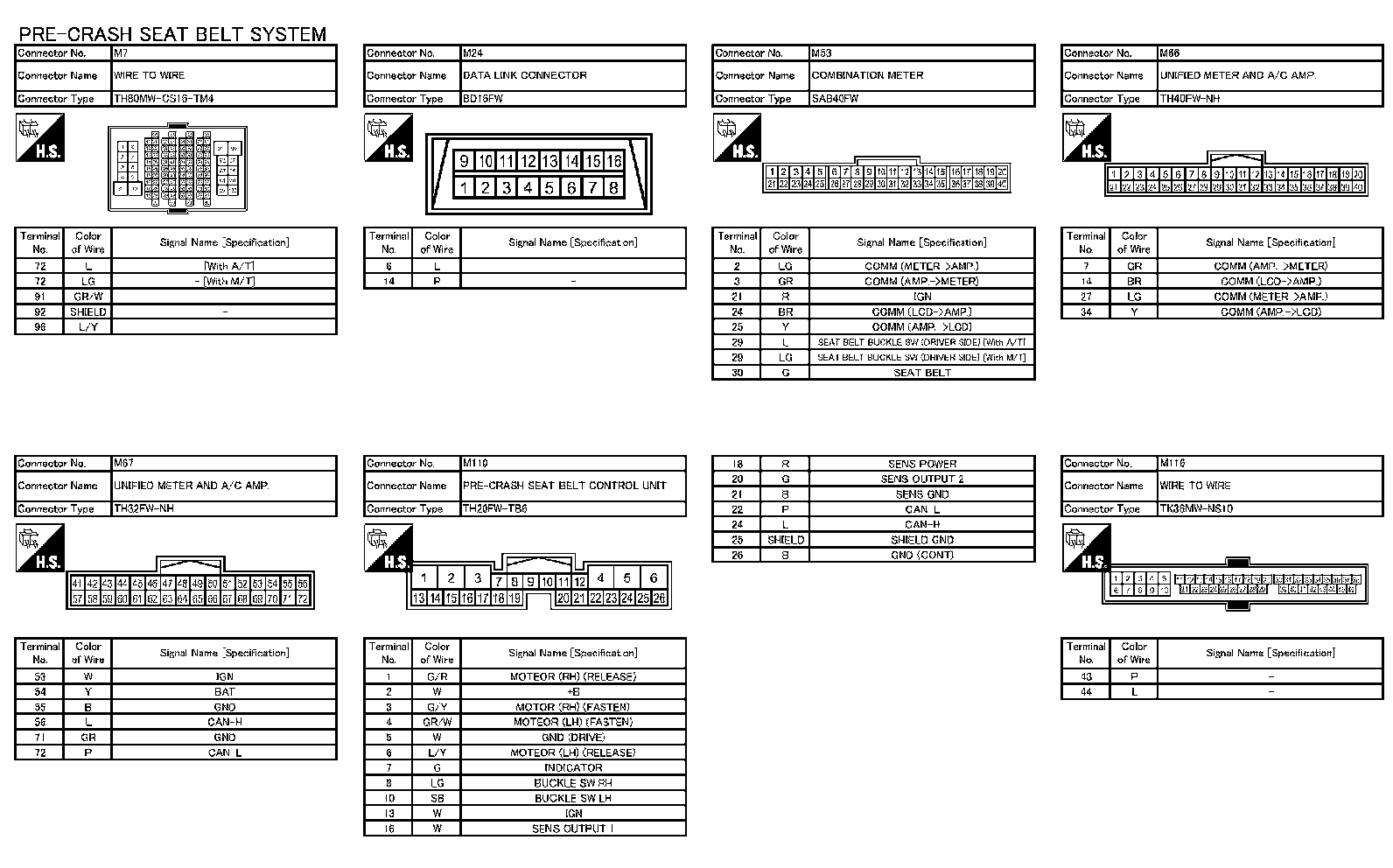

Wiring Diagram - Pre-Crash Seat Belt System - Part 1:




Wiring Diagram - Pre-Crash Seat Belt System - Part 2:

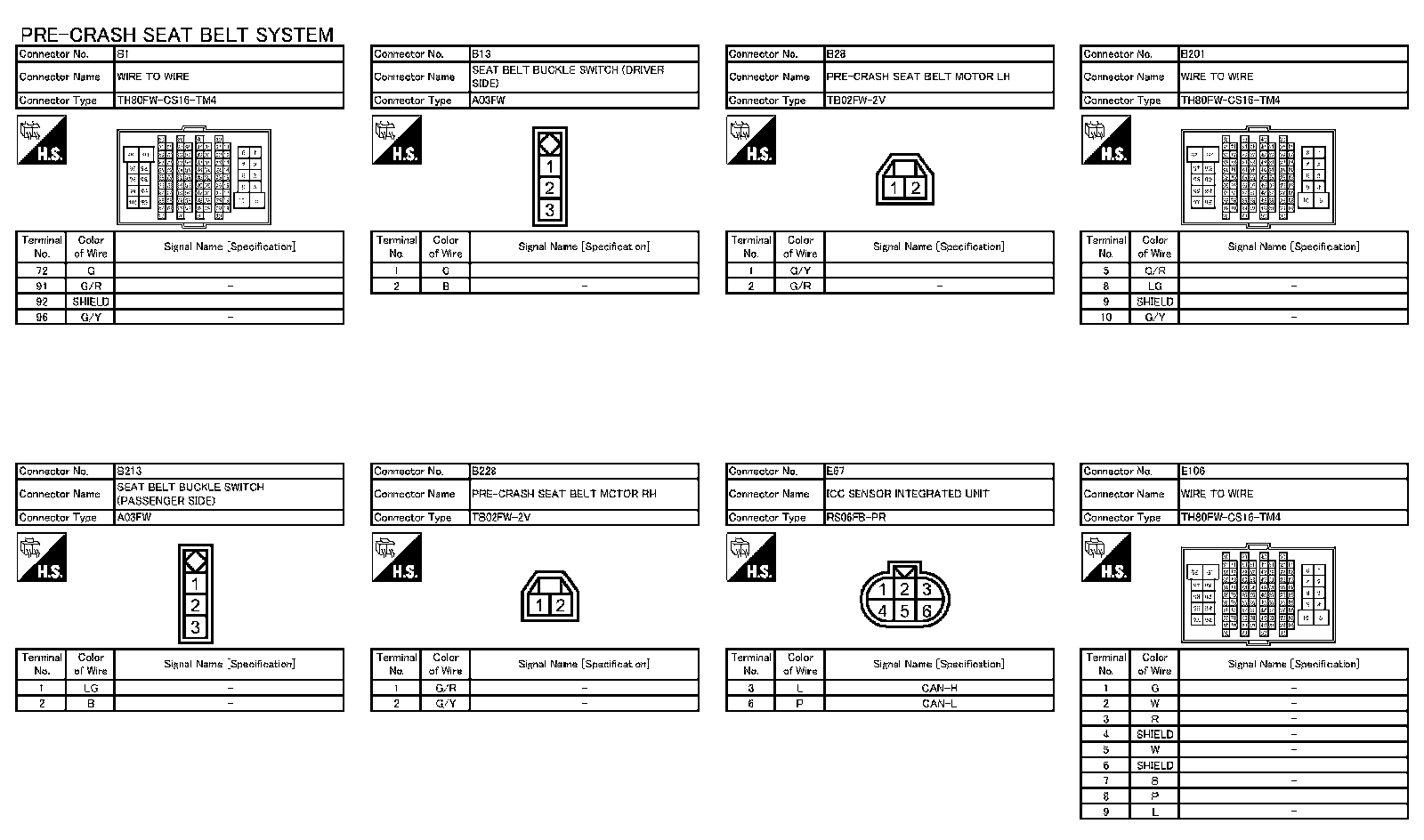

Wiring Diagram - Pre-Crash Seat Belt System - Part 3:




Wiring Diagram - Pre-Crash Seat Belt System - Part 4:

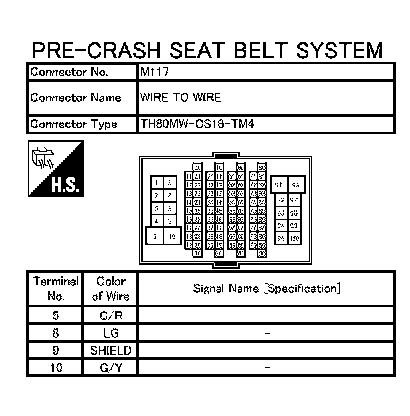

Wiring Diagram - Pre-Crash Seat Belt System - Part 5:
