Flow of Diagnosis
Flow of Diagnosis
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work Flow

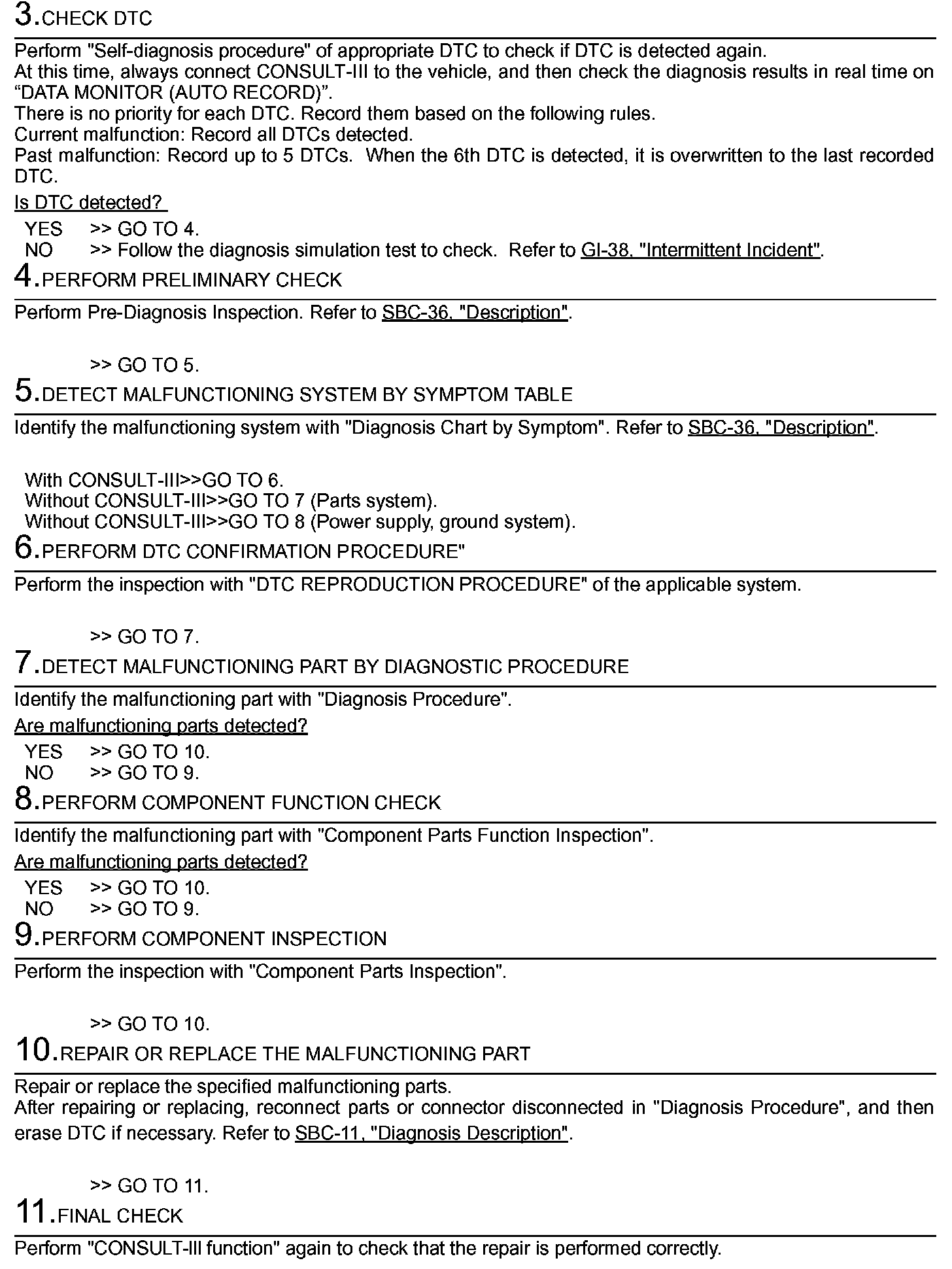

Work Flow:
Step 1-2:
Step 3-11:
Step 11 (Continued):
