Seat Belt Buckle Switch (Passenger Side) Circuit Check

SEAT BELT BUCKLE SWITCH (PASSENGER SIDE) CIRCUIT CHECK

Description
- Perform the control of tension reducer according to the seat belt buckle switch ON/OFF.
- If the seat belt is not fastened when the ignition switch is turned ON, it detects whether the seat belt is fastened or not so as to turn on the seat belt warning lamp of combination meter.
- The seat belt buckle switch is installed in the seat belt buckle.

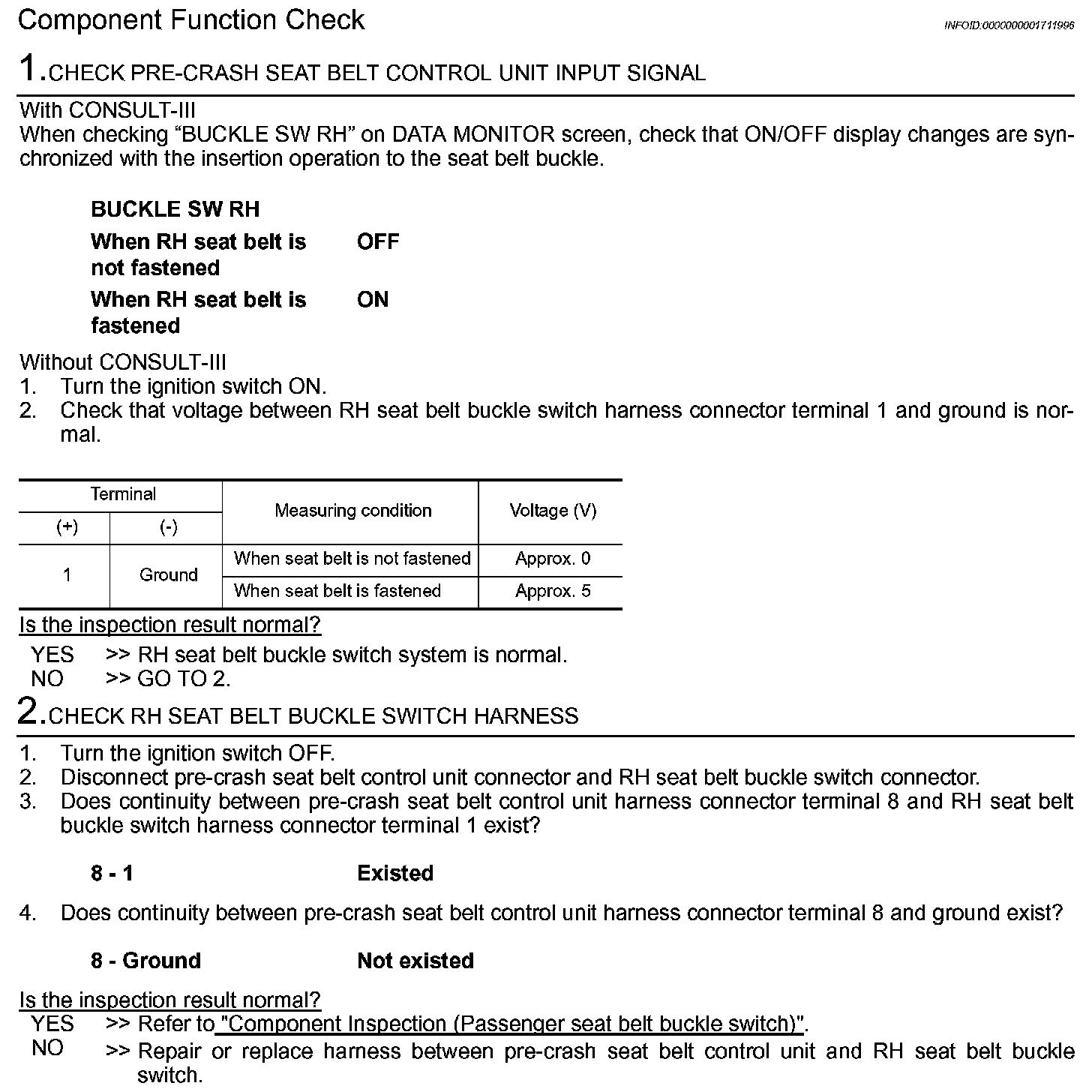

Component Function Check

Step 1-2:

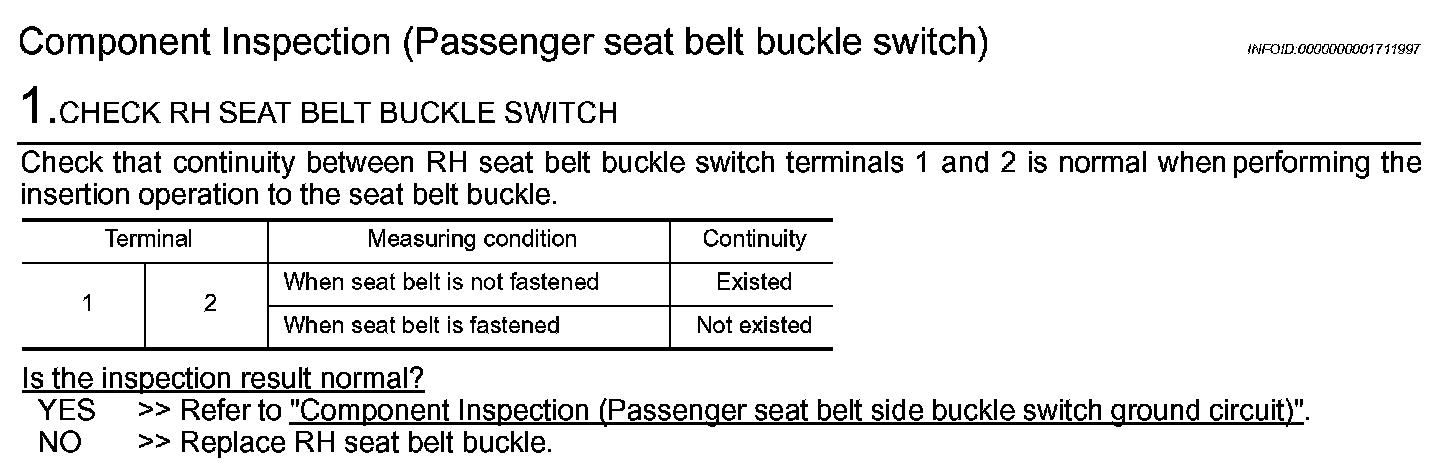

Component Inspection (Passenger seat belt buckle switch)

Step 1:

Component Inspection (Passenger seat belt side buckle switch ground circuit)
