Fluid Pan, A/T

Transmission Pan

TM-232 Exploded View:

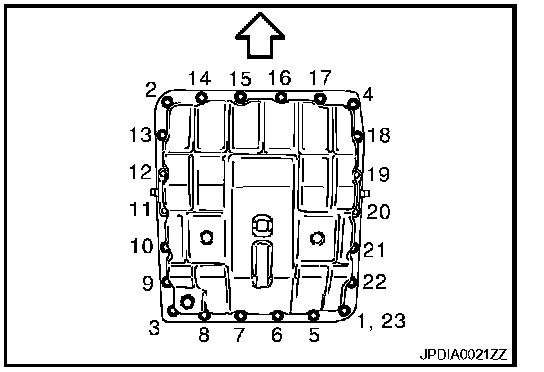

Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
Tighten oil pan mounting bolts to the specified torque.
<---: Vehicle front

CAUTION:
Do not reuse oil pan mounting bolts.
