Brake Pedal Assy

Brake Pedal Height

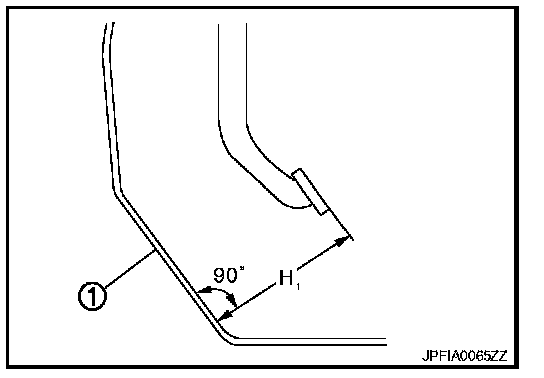

Check the height (H1) between the dash lower panel (1) and the brake pedal upper surface.
Standard
Brake pedal height (H1) Refer to BR-63, "Brake Pedal". Specifications
