Service Limits and General Specifications

Cylinder Block Specifications

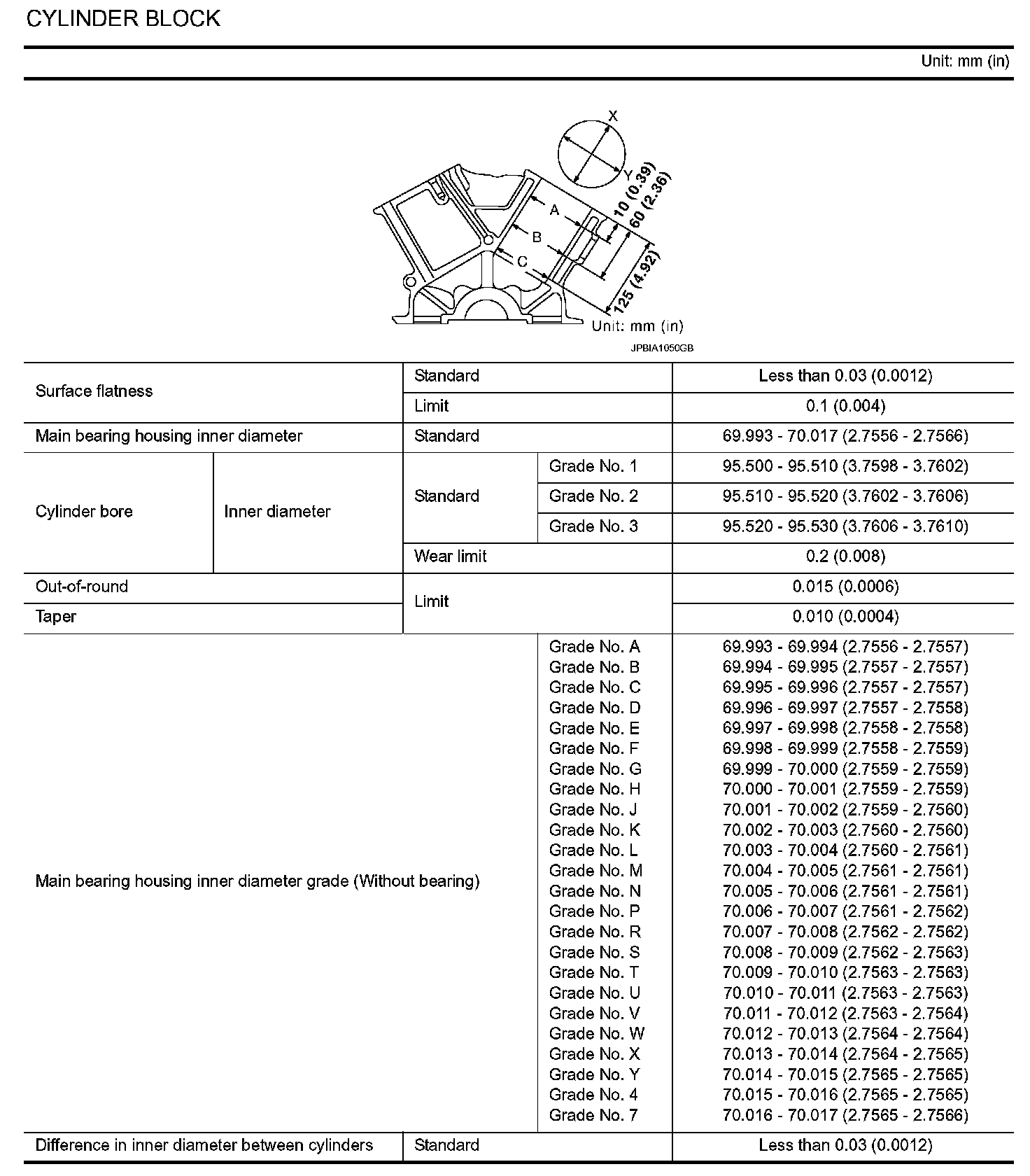

CYLINDER BLOCK





AVAILABLE PISTON





PISTON RING

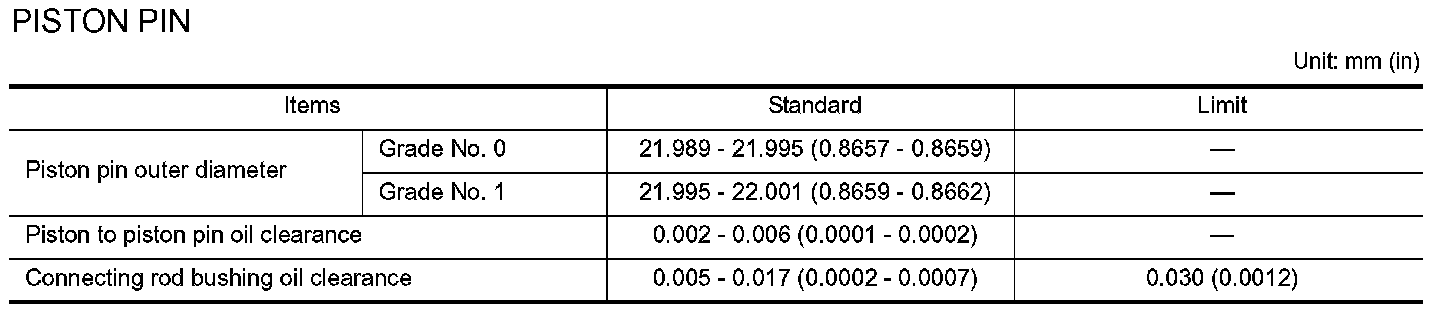

PISTON PIN

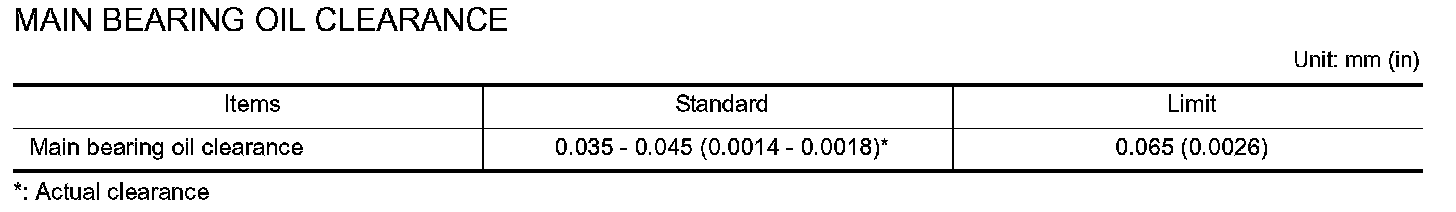

MAIN BEARING CLEARANCE

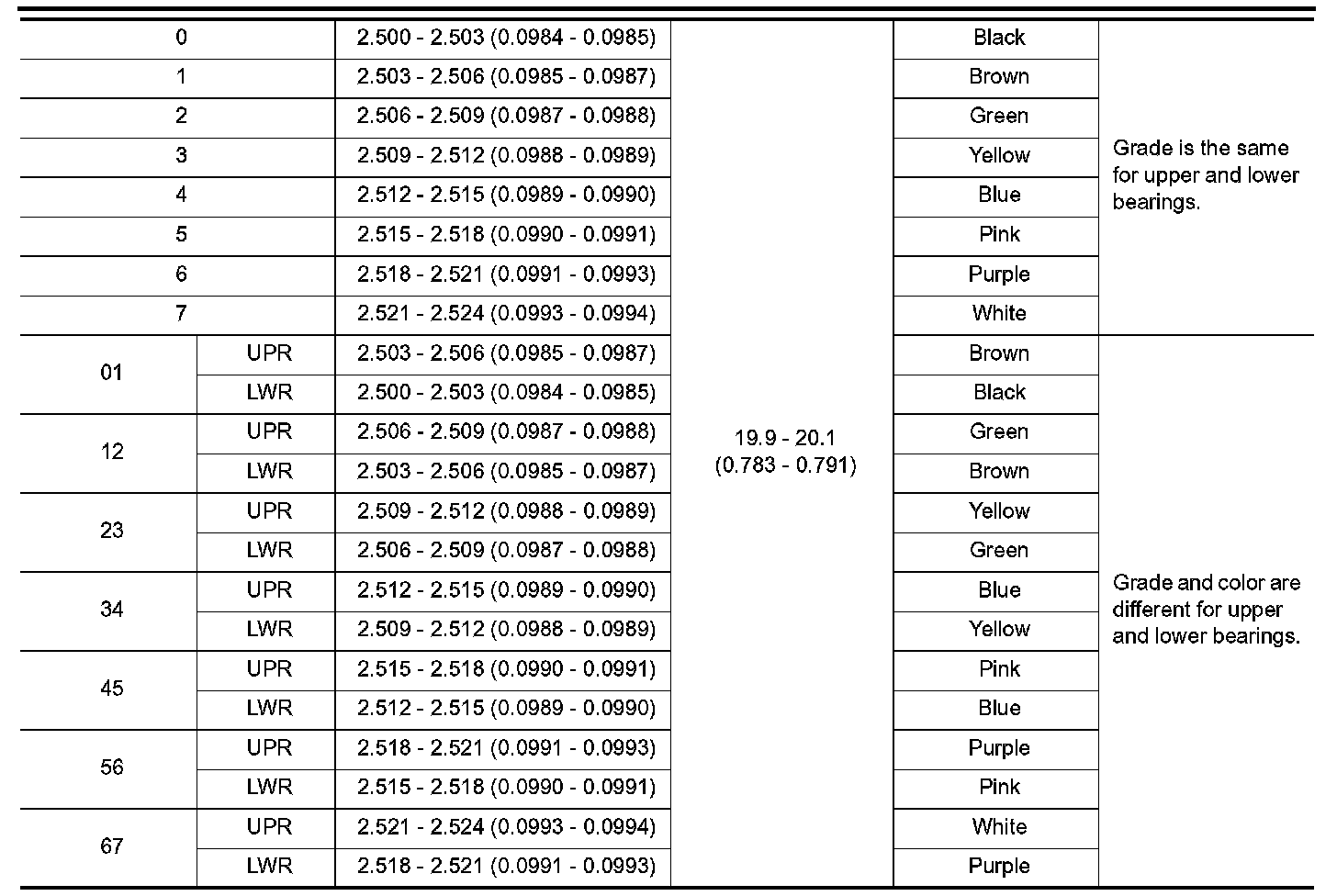

MAIN BEARING

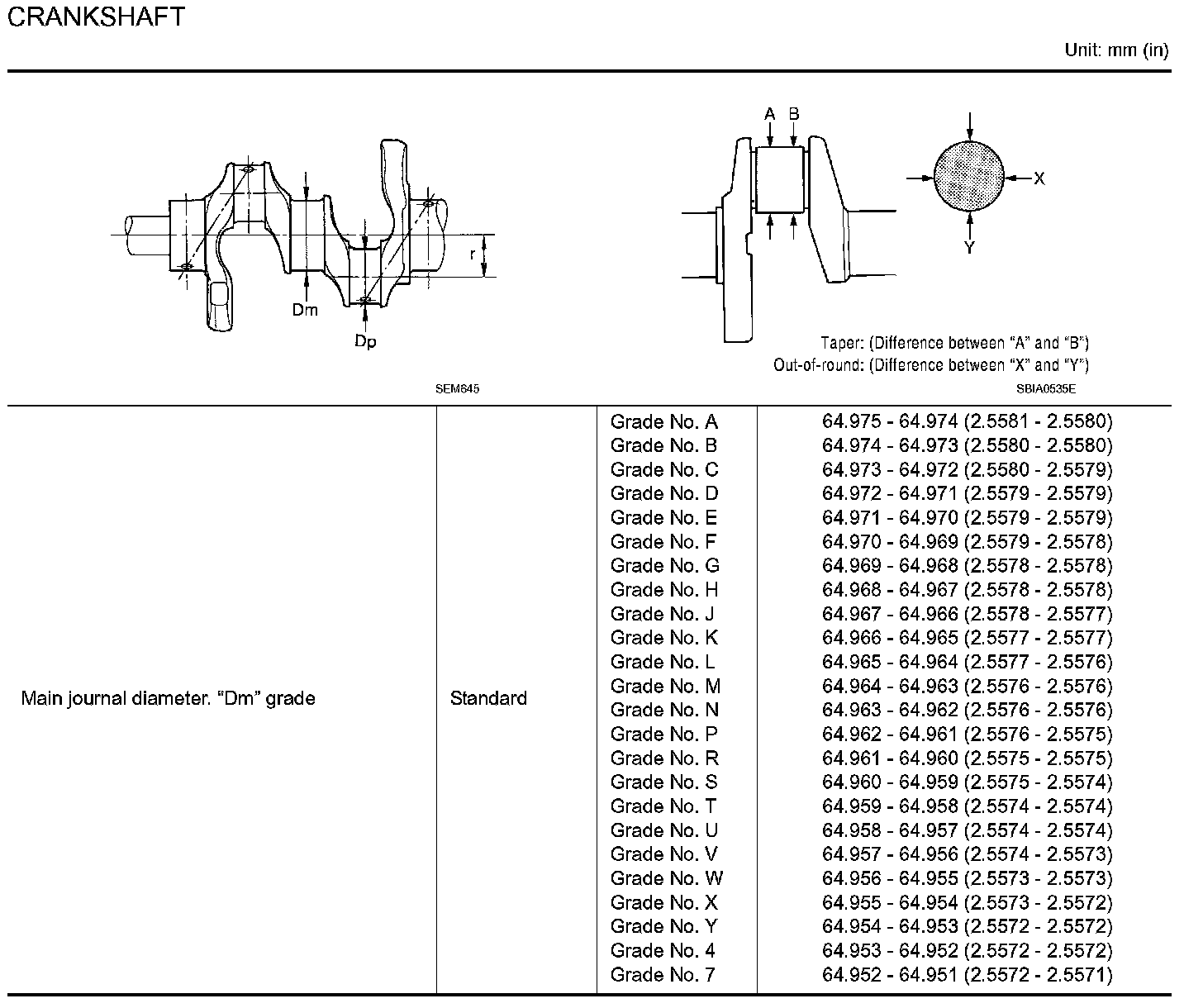

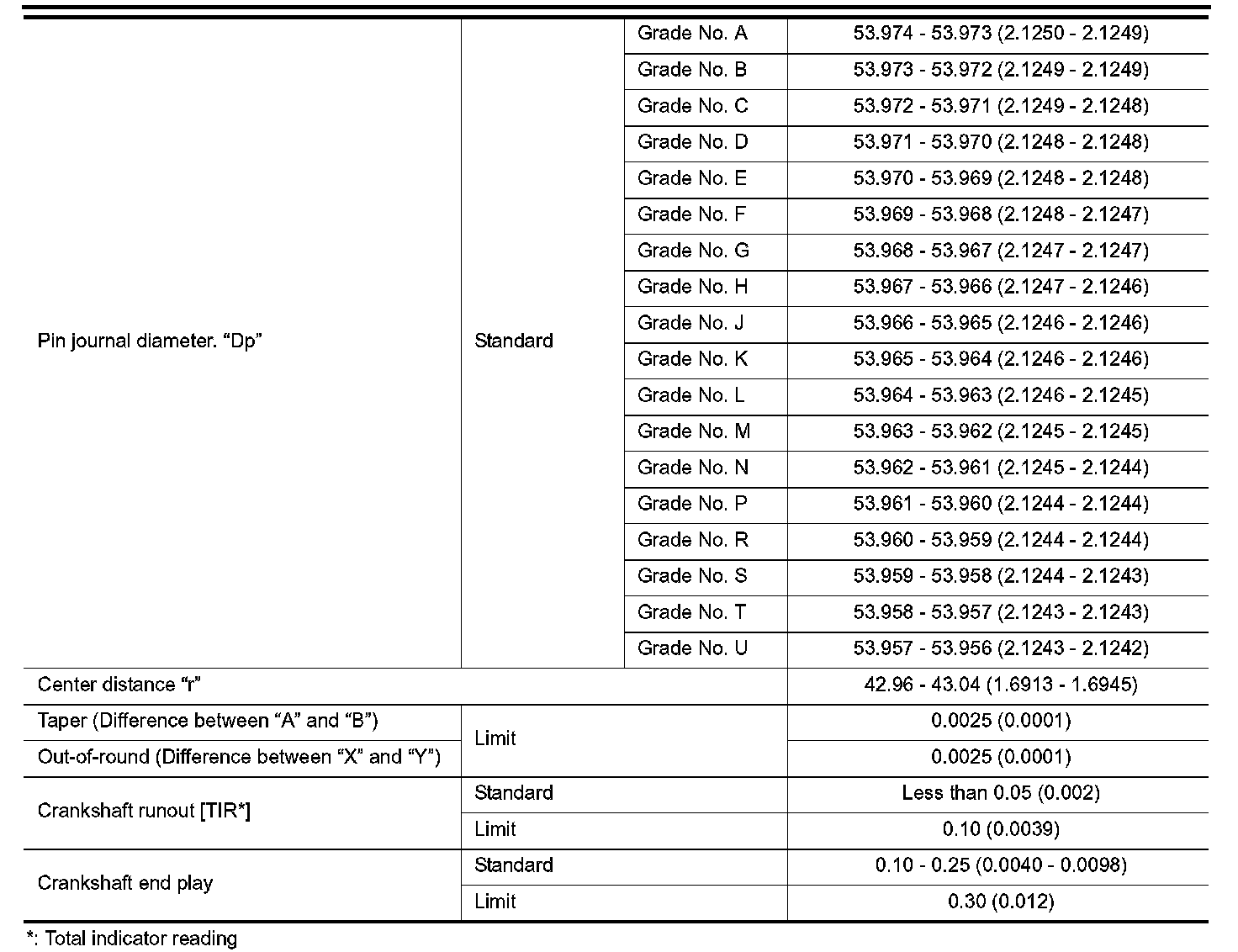

CRANKSHAFT

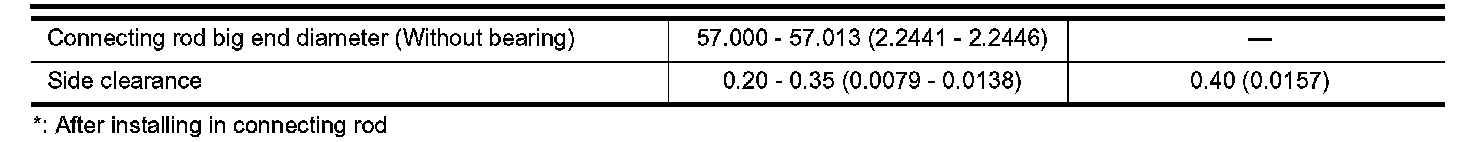

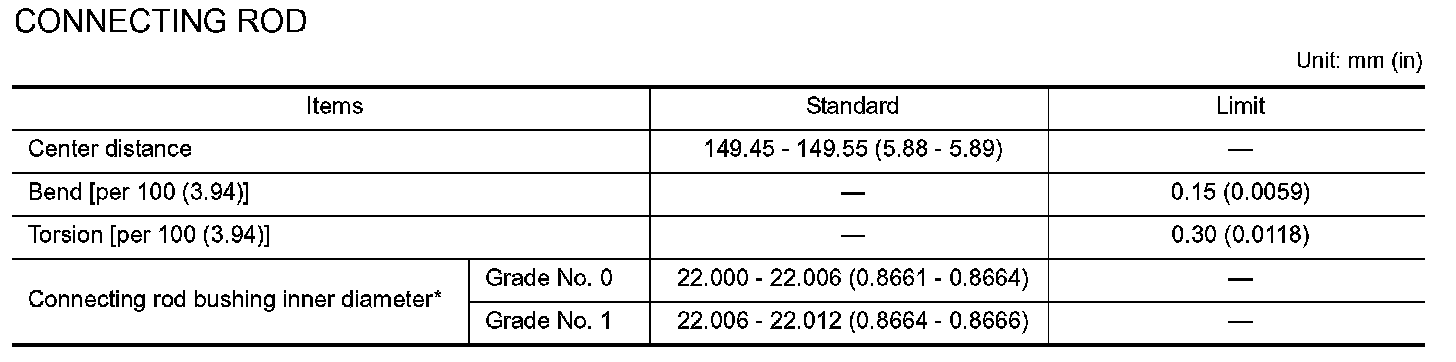

CONNECTING ROD, ENGINE

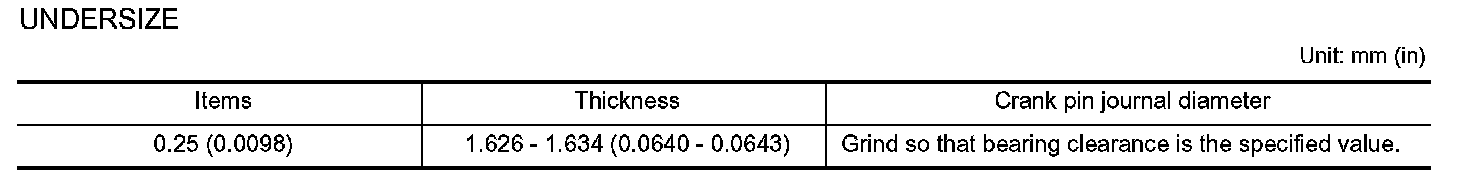

CONNECTING ROD BEARING





CONNECTING ROD BEARING OIL CLEARANCE

CRANKSHAFT PULLEY
Tighten crankshaft pulley bolt.
Torque 44.1 Nm (4.5 kg-m, 33 ft-lb)





Tighten the bolt 90° (one mark) (b).
Place a matching mark (A) on crankshaft pulley (2) aligning with the matching (C) of crankshaft pulley bolt (1).
Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns smoothly.
