Tightening Torque and Sequence

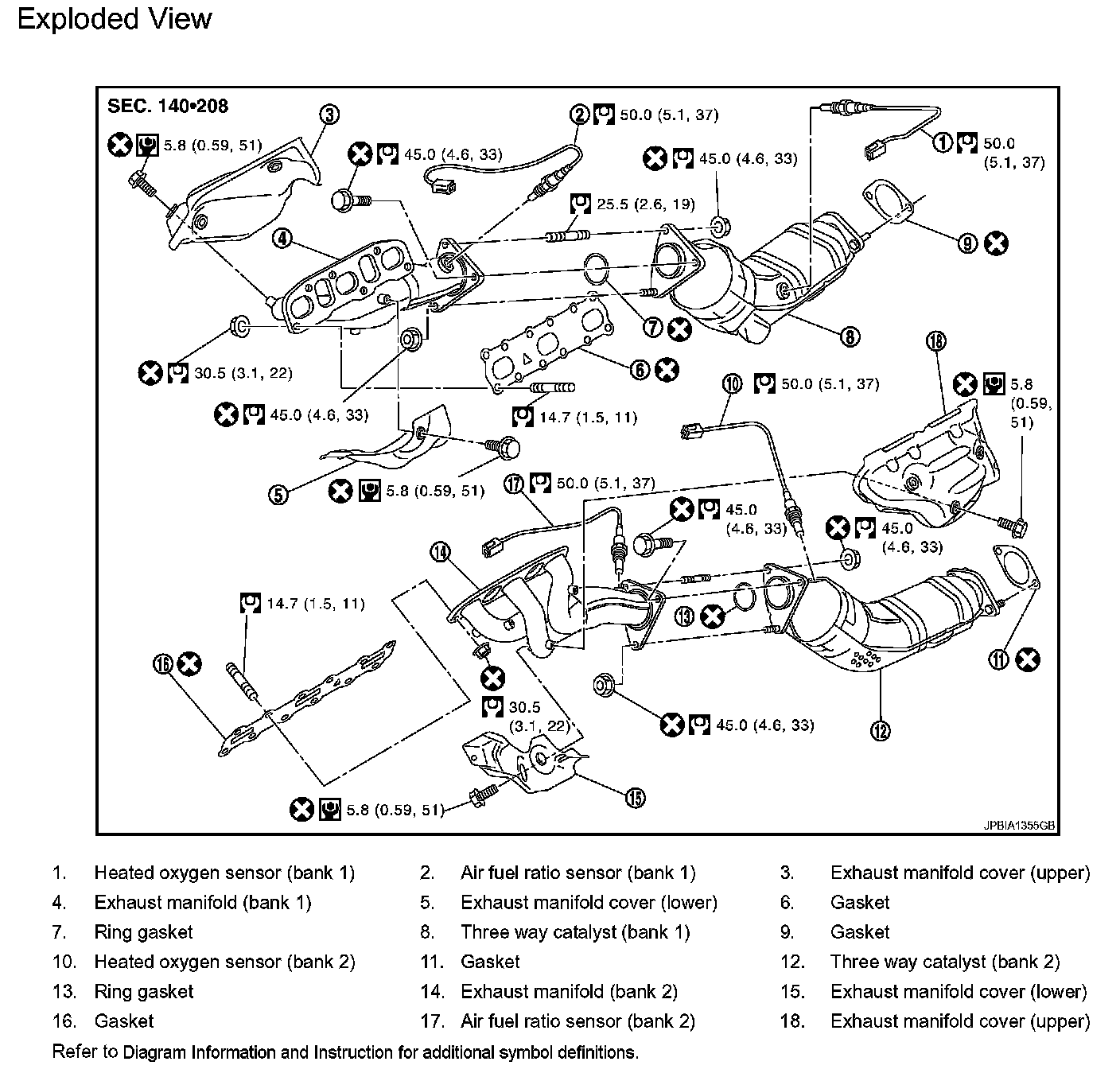

EM-33 Exploded View:

Exhaust Manifold
If stud bolts were removed, install them and tighten to the torque specified below.
Tightening torque Refer to "Exploded View".

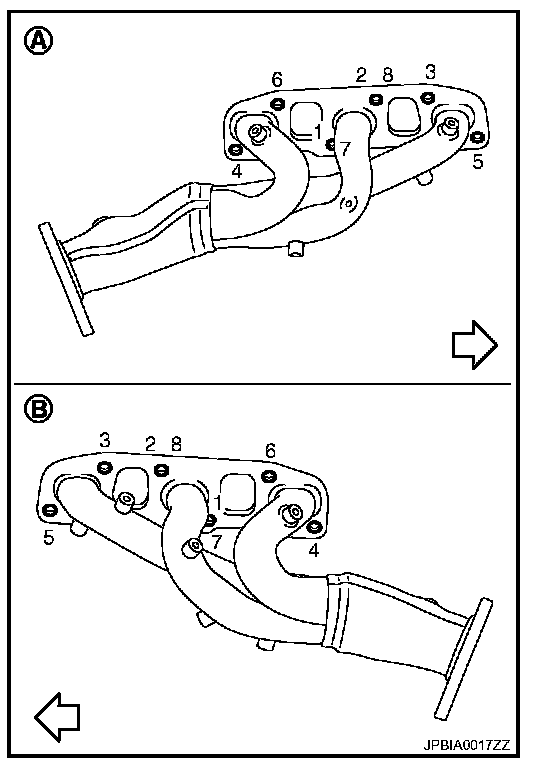

Install exhaust manifold and tighten mounting bolts in numerical order as shown in the figure.
A: Bank 1
B: Bank 2
<---: Engine front

NOTE:
Tighten nuts the No. 1 and 2 in two steps. The numerical order No. 7 and 8 shows the second step.
