B Terminal Circuit

COMPONENT DIAGNOSIS

B TERMINAL CIRCUIT

Description
"B" terminal circuit supplies power to charge the battery and to operate the vehicle's electrical system.

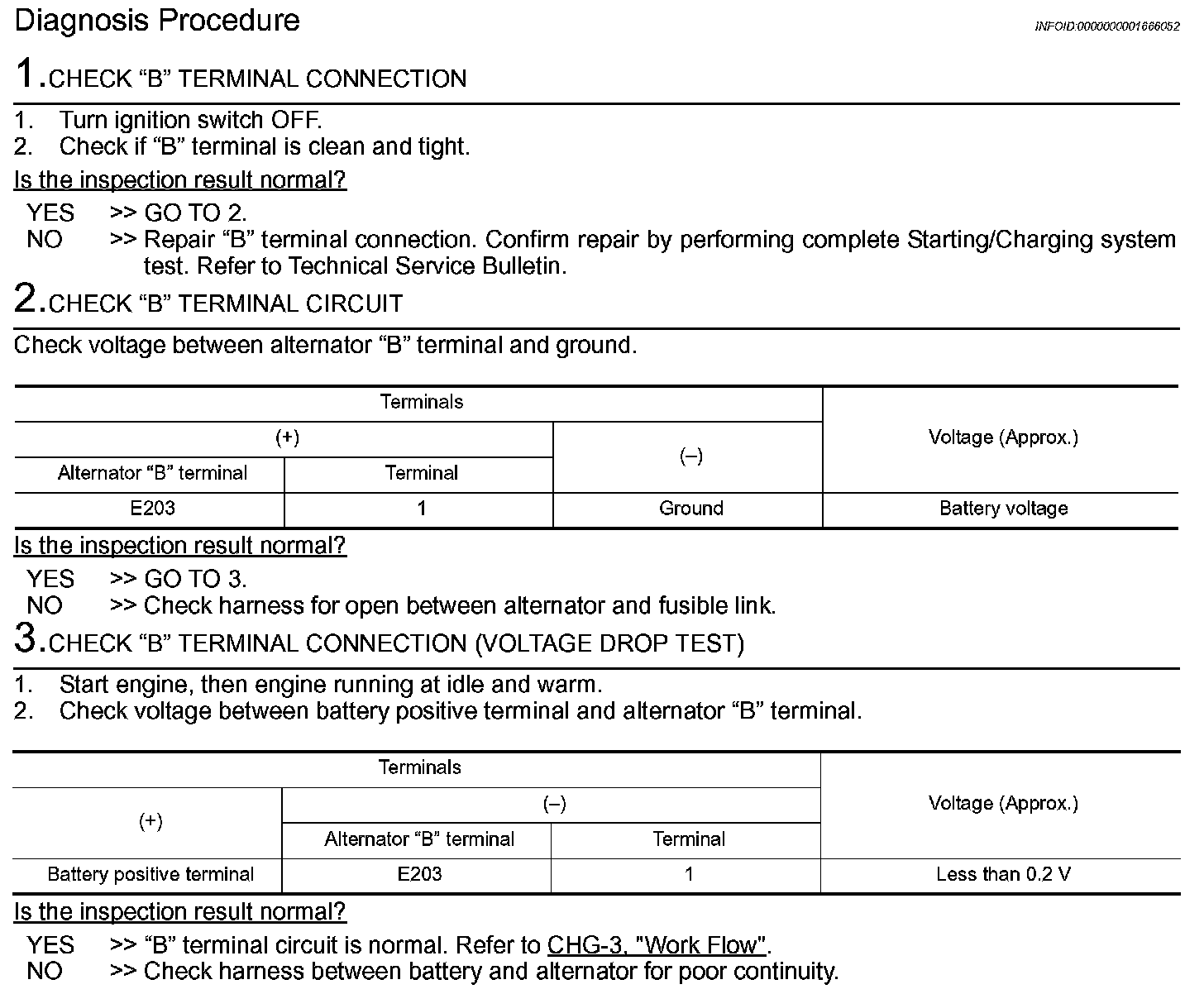

Diagnosis Procedure

Step 1-3:
