4WAS Main Control Unit

Reference Value

CONSULT-III MONITOR ITEM (Part 1):




CONSULT-III MONITOR ITEM (Part 2):

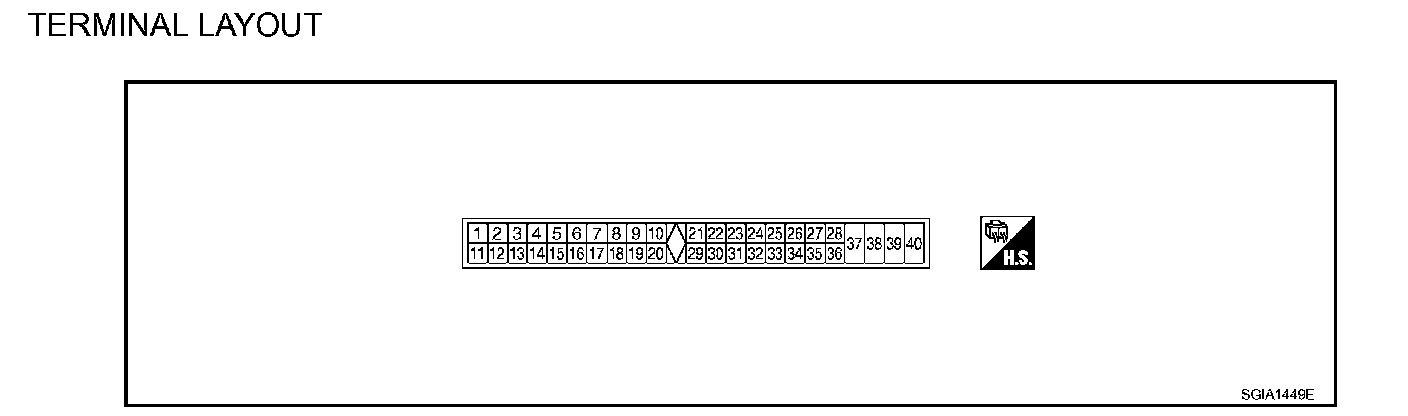

TERMINAL LAYOUT:

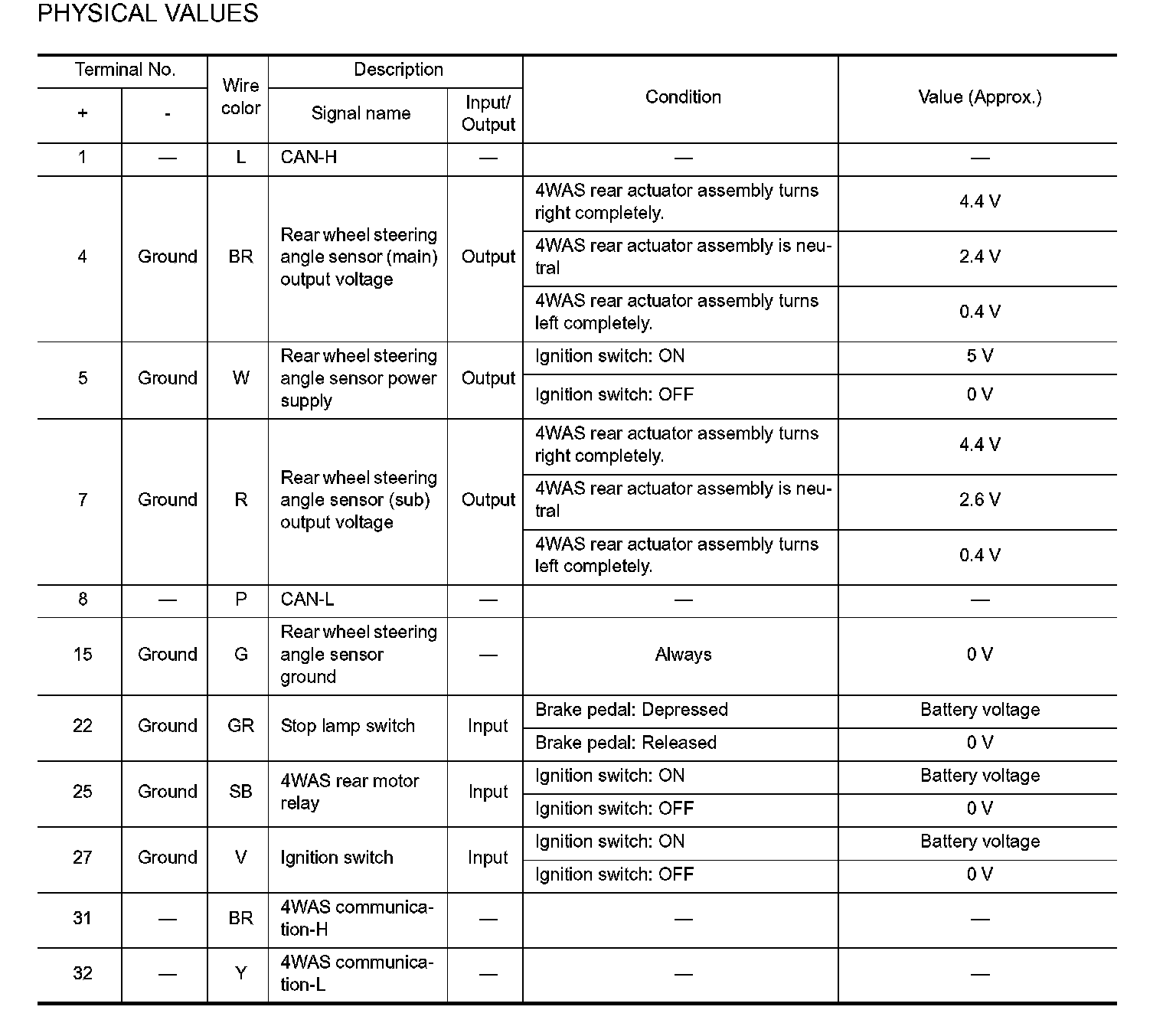

PHYSICAL VALUES (Part 1):

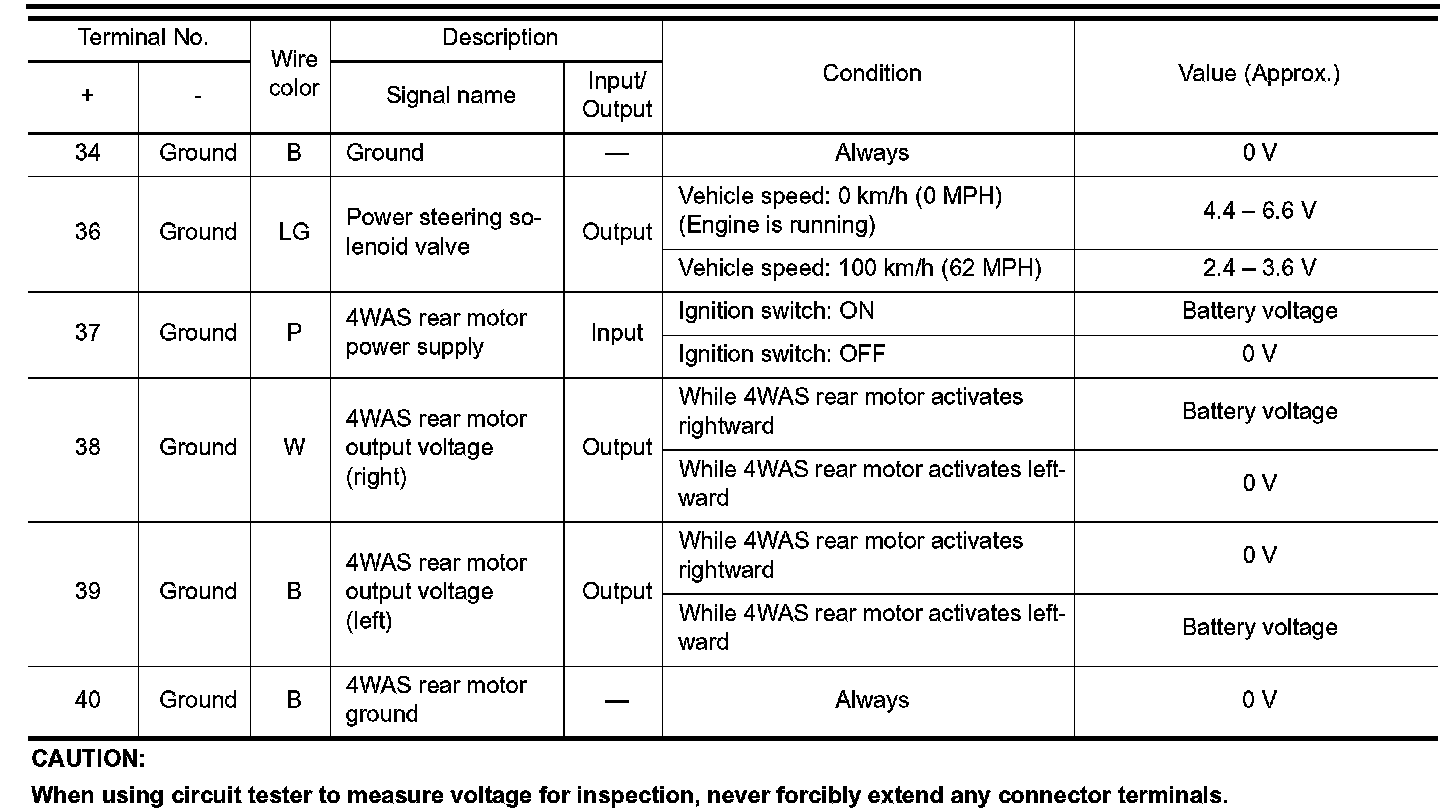

PHYSICAL VALUES (Part 2):
