4WAS Front Control Unit
4WAS Front Control Unit
Reference Value

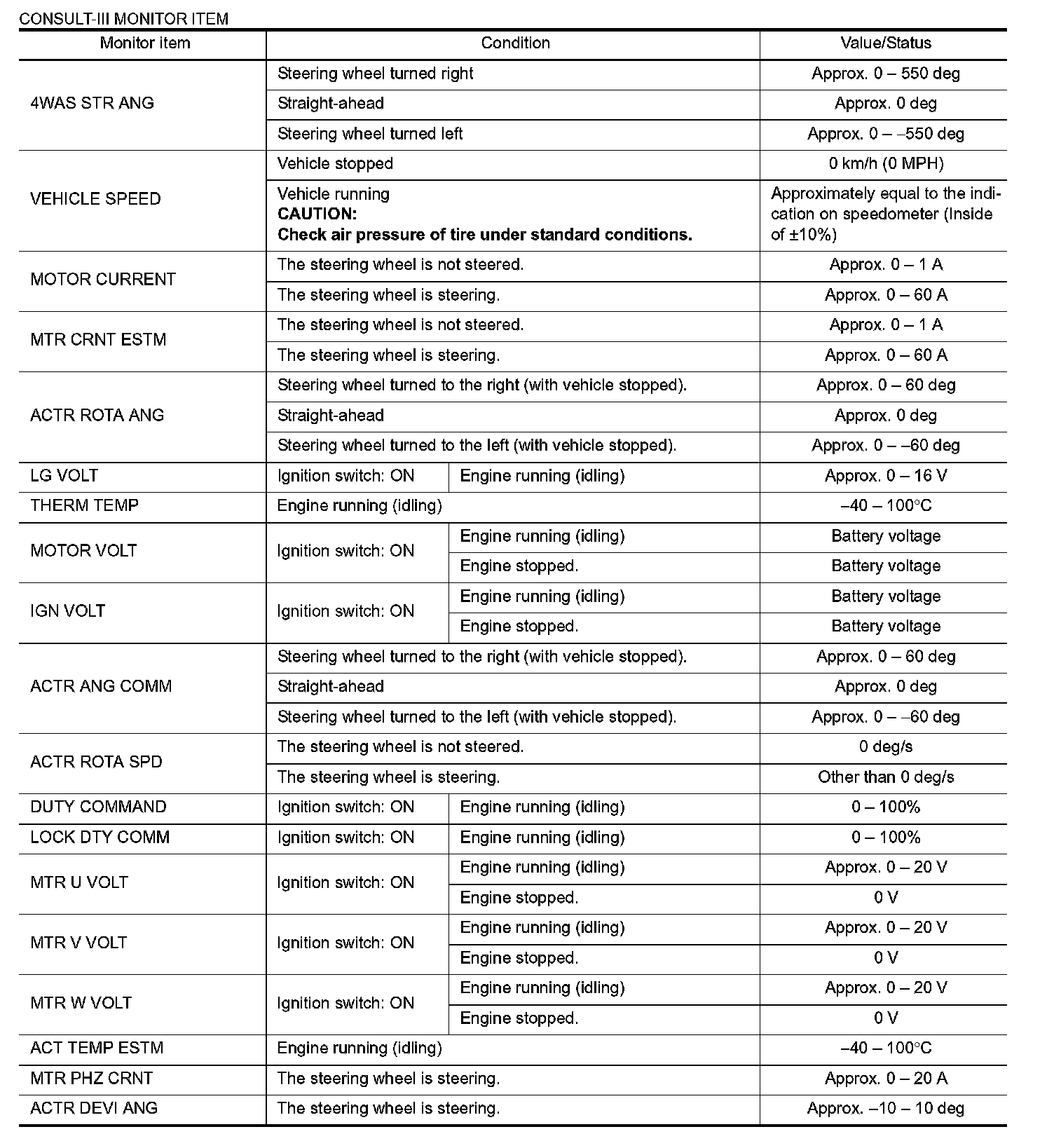

CONSULT-III MONITOR ITEM (Part 1):
CONSULT-III MONITOR ITEM (Part 2):
CONSULT-III MONITOR ITEM (Part 3):
TERMINAL LAYOUT:
PHYSICAL VALUES:
