Vehicle Damage Warnings
Service Notice or Precautions for ClutchCAUTION:
^ Recommended clutch fluid is brake fluid "DOT 3".
^ Never reuse drained clutch fluid.
^ Never splash clutch fluid on painted areas.

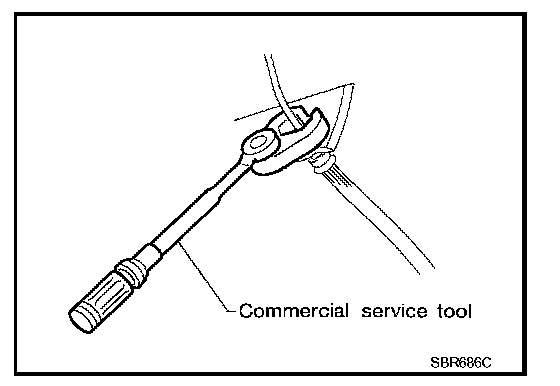

^ When removing clutch tube, use a flare nut wrench.
^ When installing clutch tube, use a flare nut torque wrench.
^ Use new clutch fluid to clean or wash all parts of master cylinder.
^ Never use mineral oils such as gasoline or kerosene. It will ruin the rubber parts of the hydraulic system.
^ If transmission assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder) body and CSC tube. Return CSC body insert to original position to remove transmission assembly. Dust on clutch disc sliding parts may damage seal of CSC body and may cause clutch fluid leakage.
^ Never disassemble CSC body.
WARNING:
After cleaning clutch disc, wipe it with a dust collector. Never use compressed air.
