Manual Transmission/Transaxle: Description and Operation

System Diagram

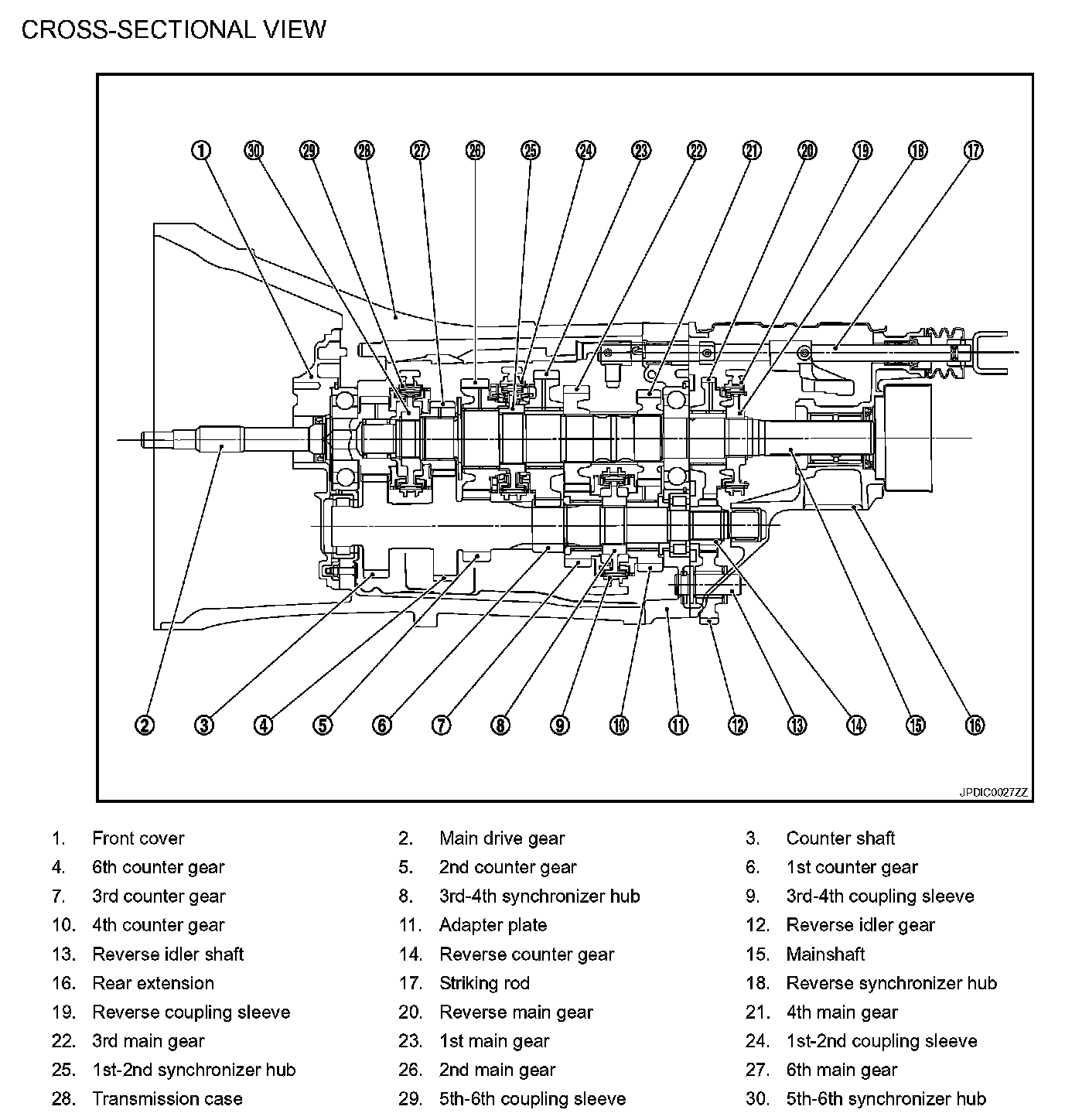

Cross-Sectional View





System Description

DOUBLE-CONE SYNCHRONIZER
The 4th gear is equipped with a double-cone synchronizer to reduce the operating force of the control lever.

TRIPLE-CONE SYNCHRONIZER





The 1st, 2nd and 3rd gears are equipped with a triple-cone synchronizer to reduce the operating force of the control lever.
