Park/Neutral Position Switch

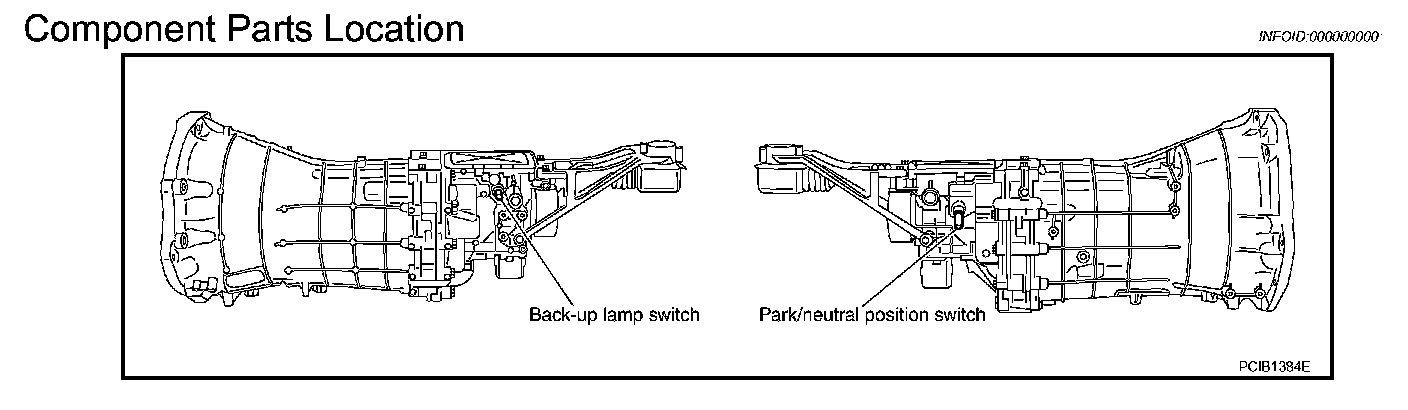

Component Parts Location





Component Inspection

1.CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

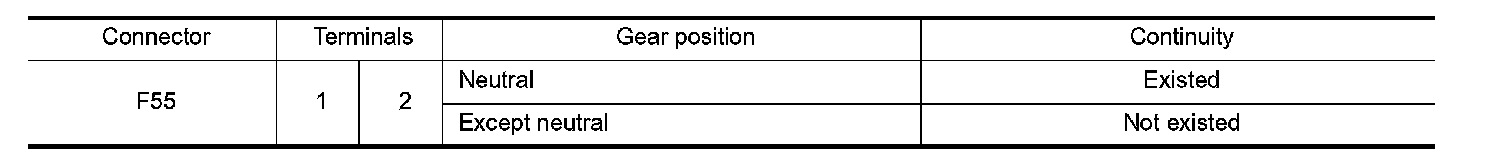

Check continuity between park/neutral position (PNP) switch terminals with control lever turned to 1st to 6th and reverse position.





Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace park/neutral position (PNP) switch.
