Electrical Diagrams

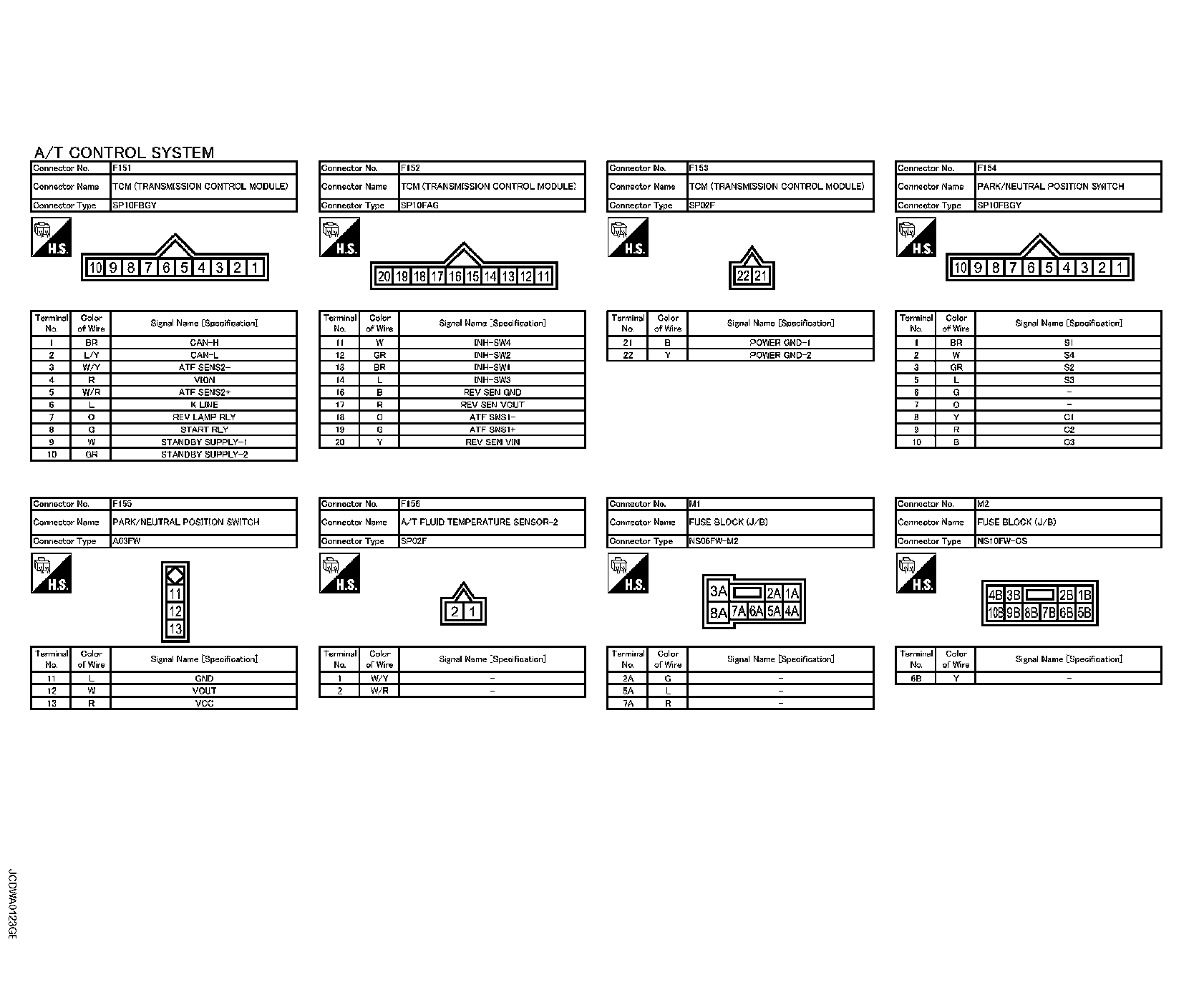

Wiring Diagram - A/T Control System - Part 1:

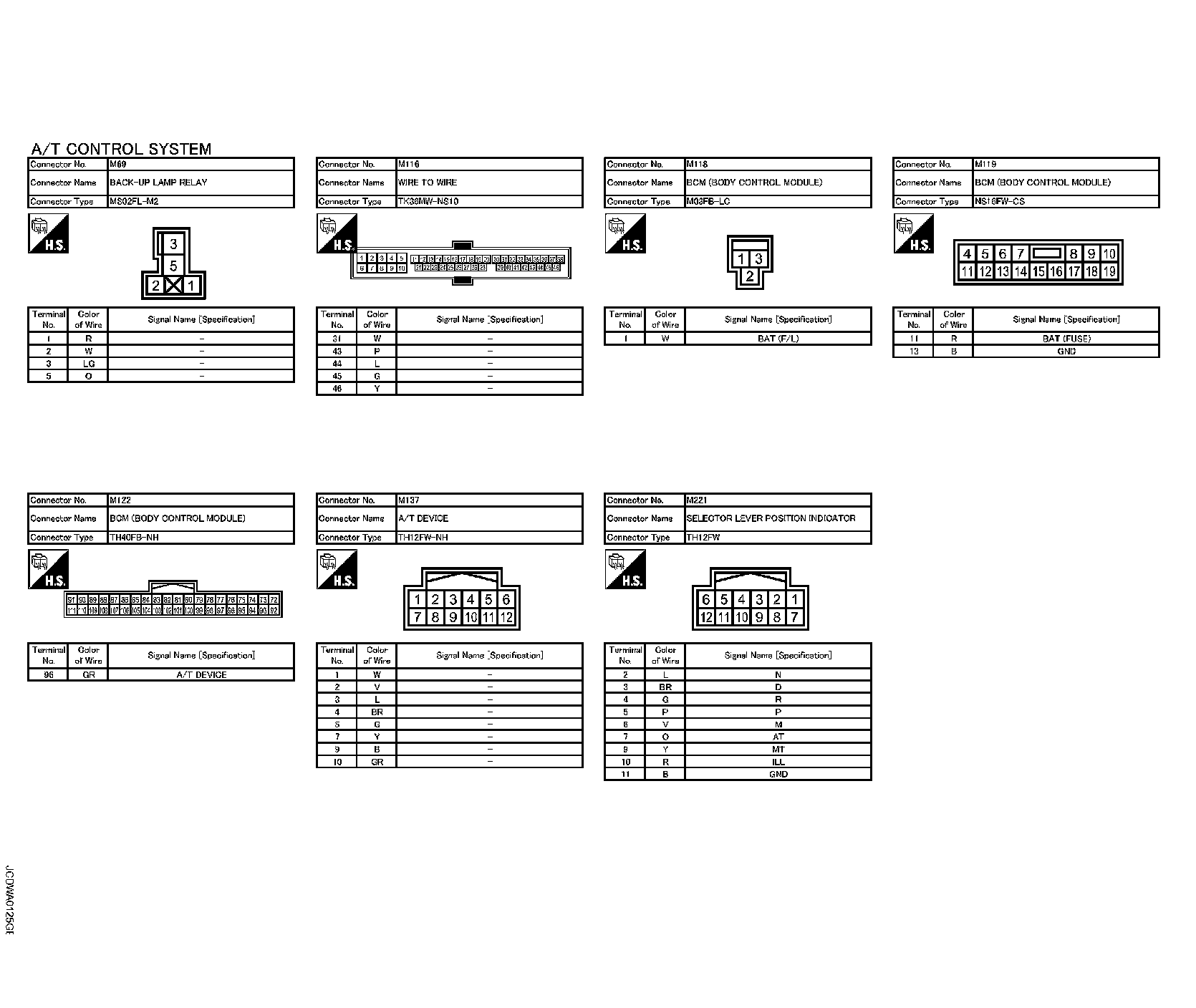

Wiring Diagram - A/T Control System - Part 2:

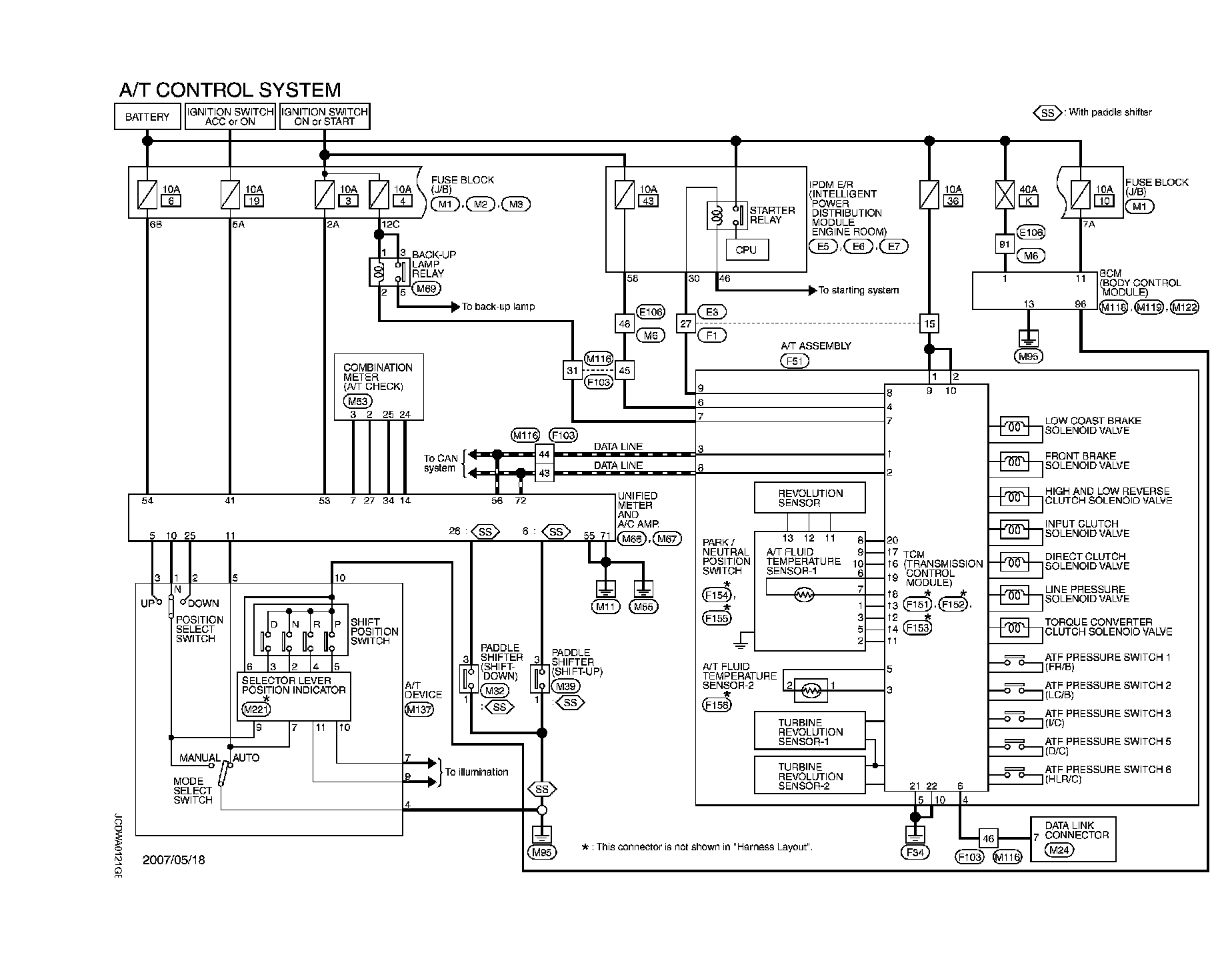

Wiring Diagram - A/T Control System - Part 3:

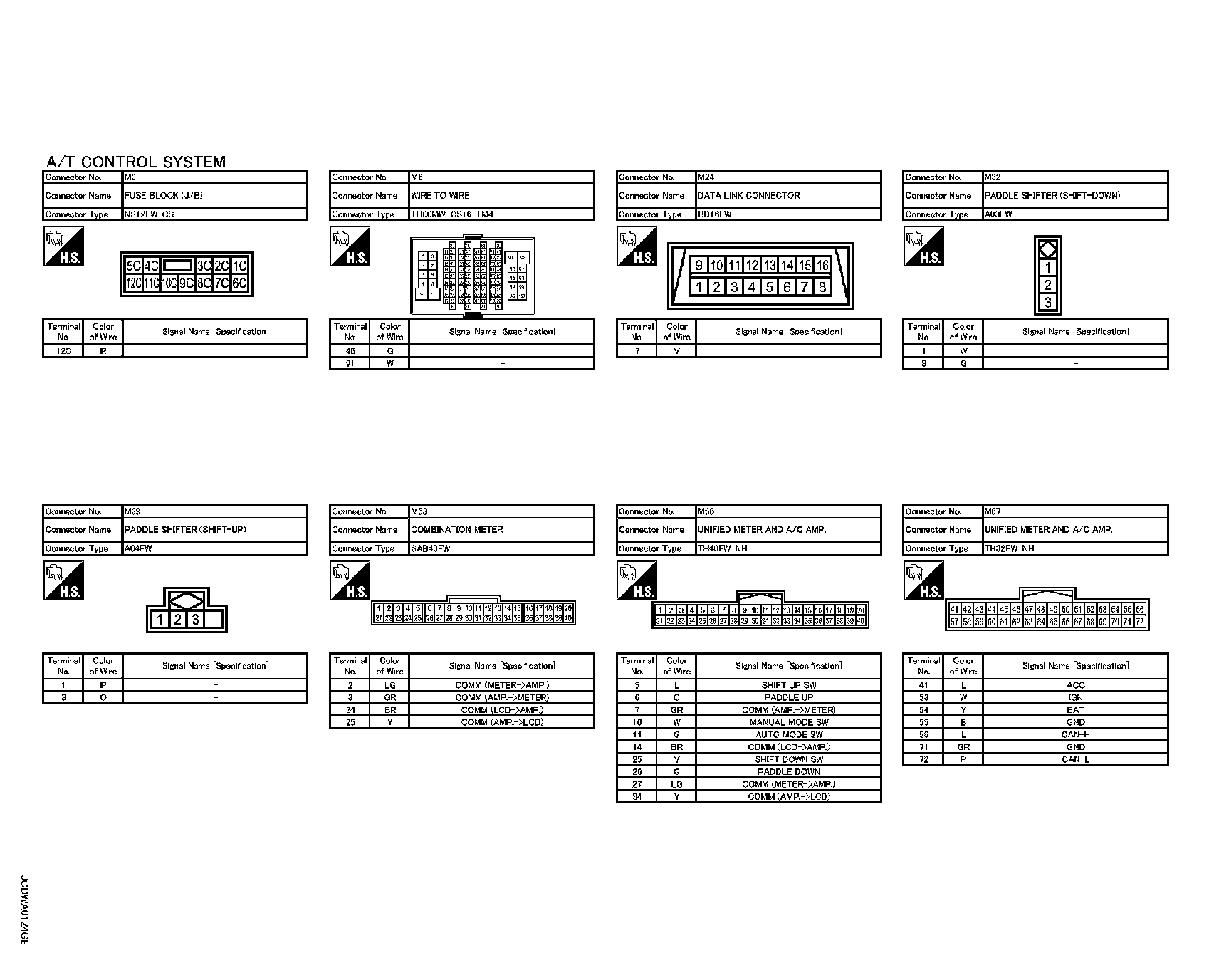

Wiring Diagram - A/T Control System - Part 4:

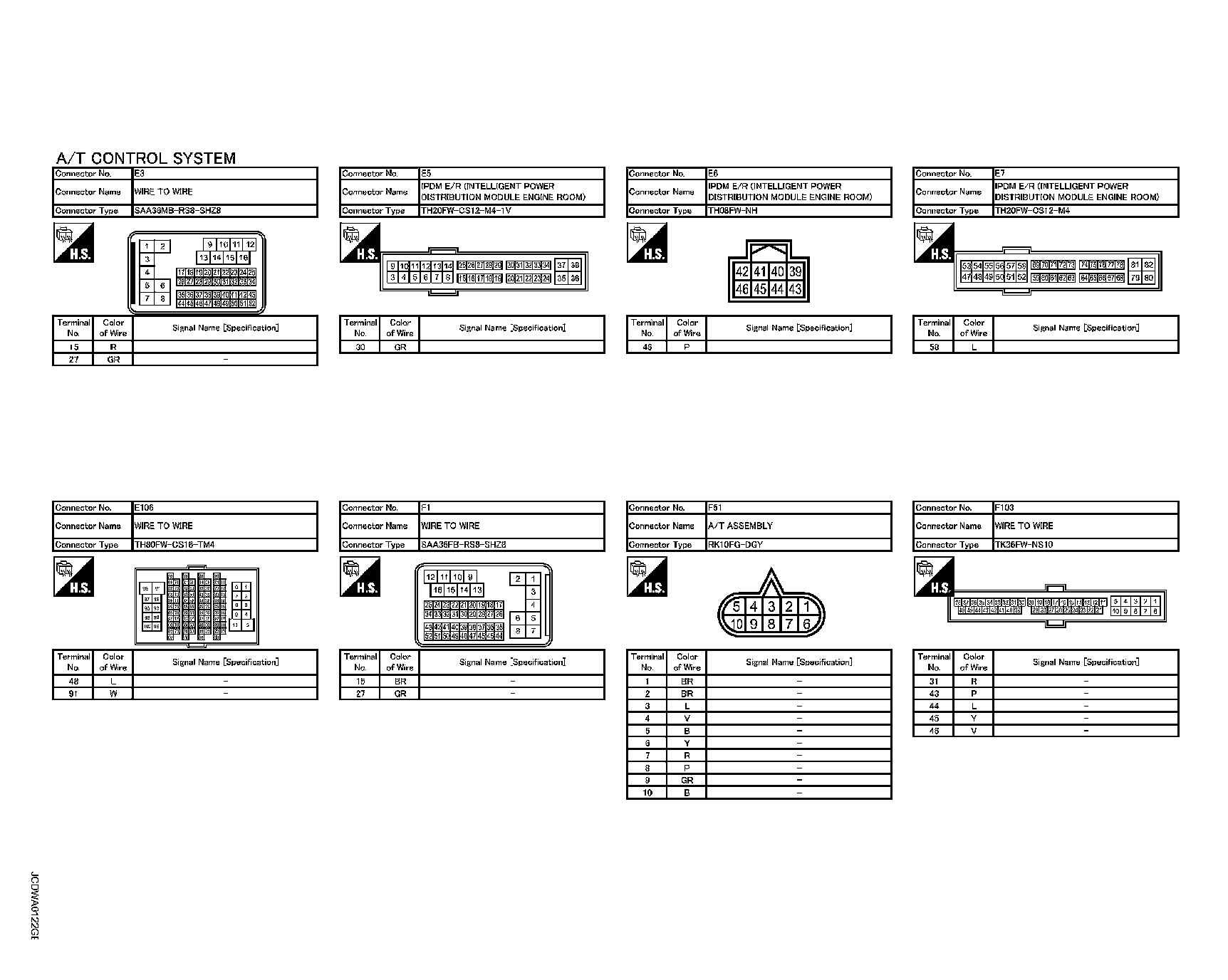

Wiring Diagram - A/T Control System - Part 5:
