Driver Side

ENCODER

DRIVER SIDE

DRIVER SIDE : Description
Detects condition of the driver side power window motor operation and transmits to power window main switch as the pulse signal.

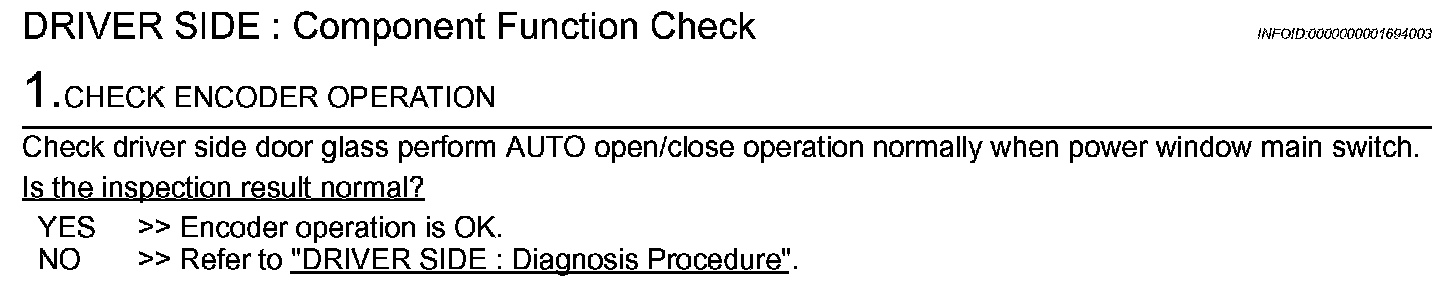

DRIVER SIDE : Component Function Check

Step 1:

DRIVER SIDE : Diagnosis Procedure

Step 1-2:

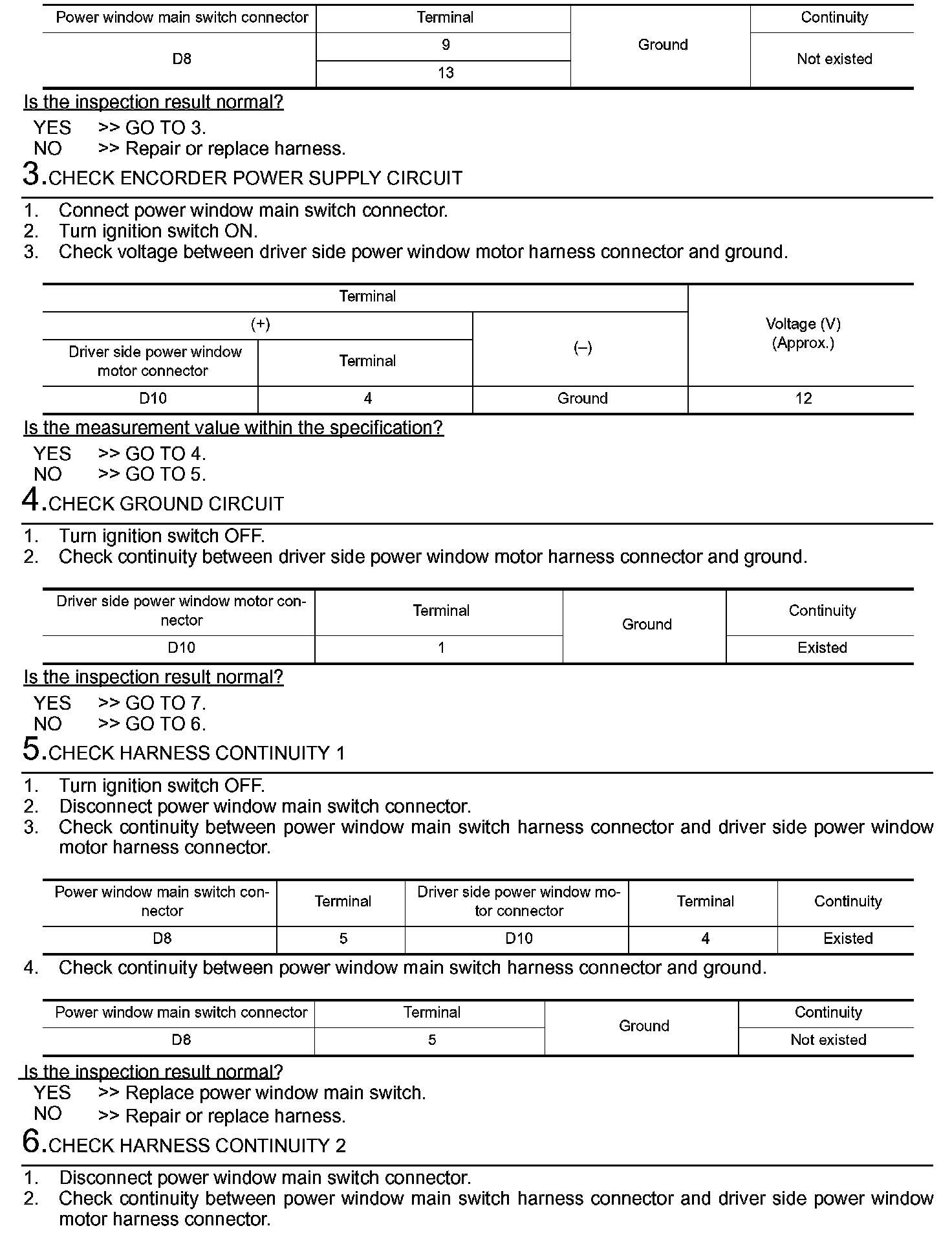

Step 2 (Continued)-6:

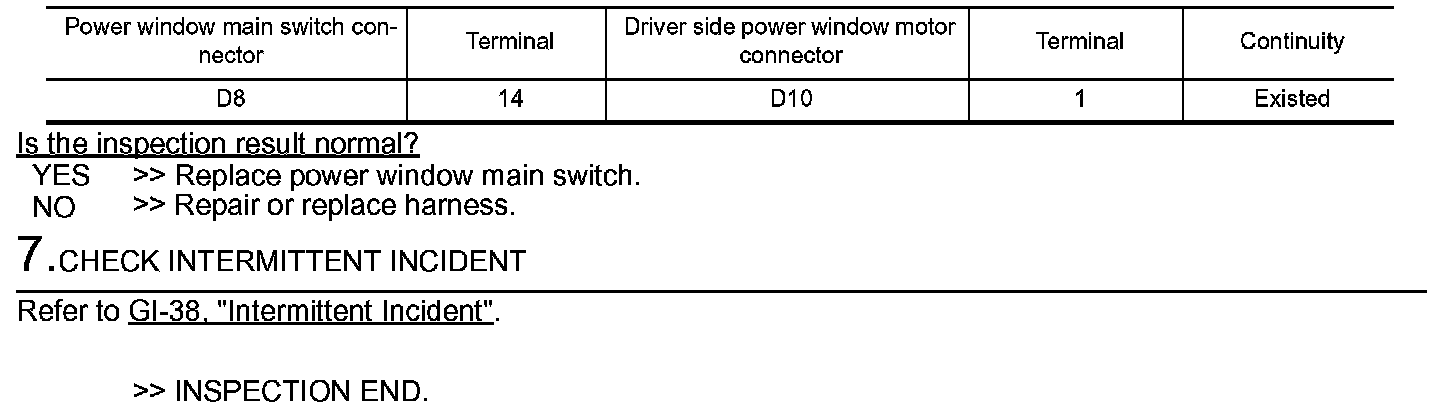

Step 6 (Continued)-7:
