Driver Side

POWER WINDOW MOTOR

DRIVER SIDE

DRIVER SIDE : Description
Door glass moves UP/DOWN by receiving the signal from power window main switch.

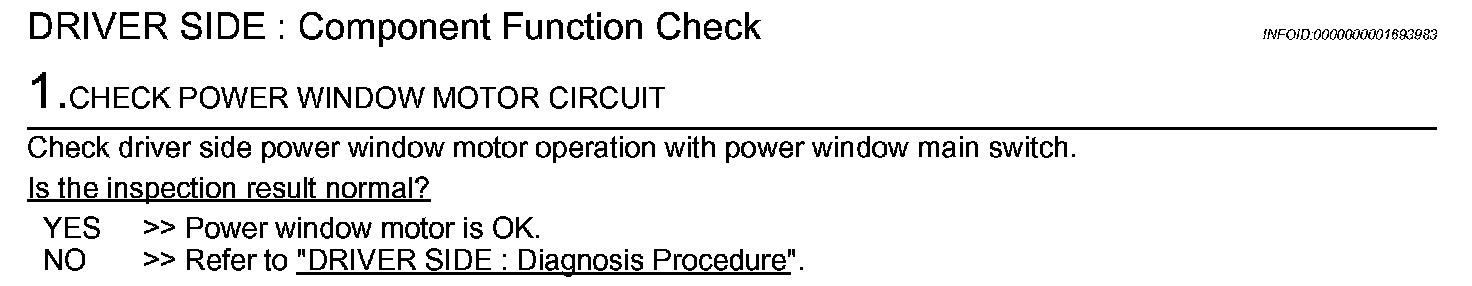

DRIVER SIDE : Component Function Check

Step 1:

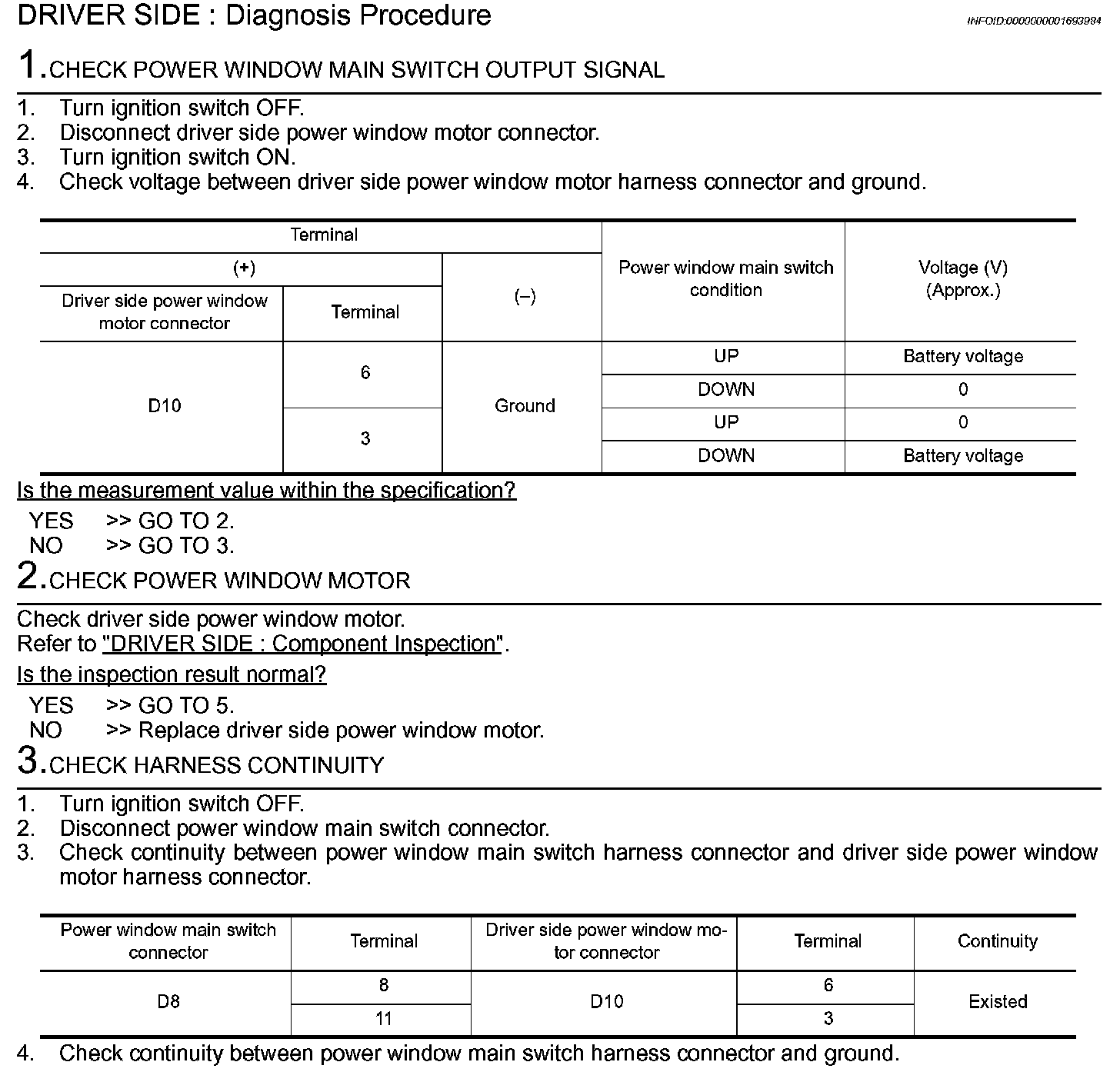

DRIVER SIDE : Diagnosis Procedure

Step 1-3:

Step 3 (Continued)-5:

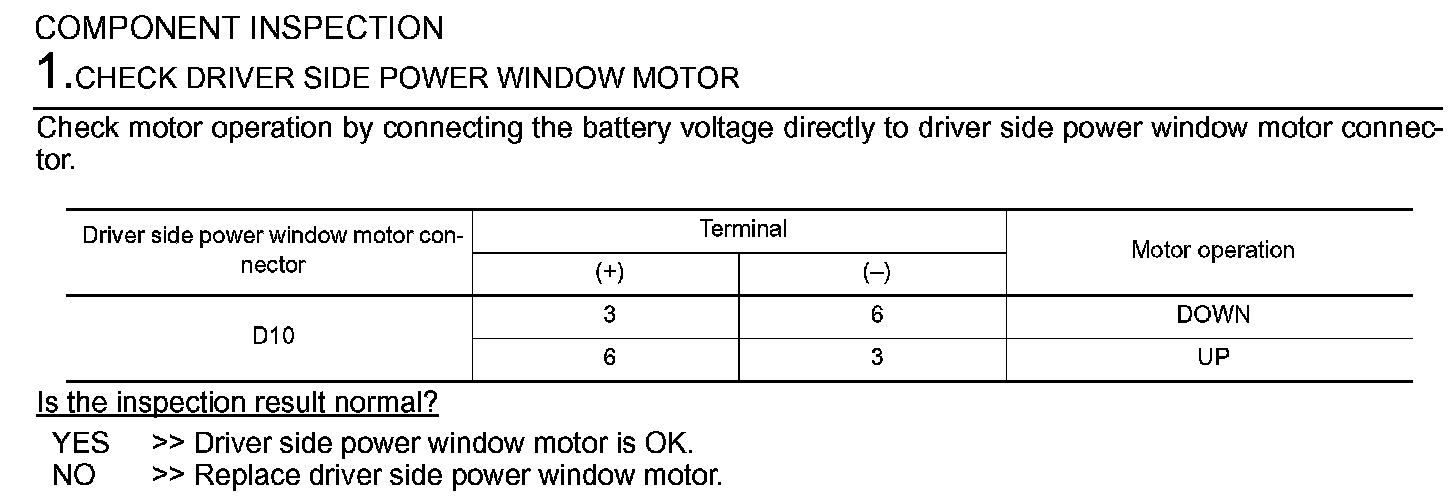

DRIVER SIDE : Component Inspection

Step 1:
