Power Window Main Switch

POWER WINDOW SERIAL LINK

POWER WINDOW MAIN SWITCH

POWER WINDOW MAIN SWITCH : Description
Power window main switch, power window sub-switch, and BCM transmit and receive the signal by power window serial link.
The signal mentioned below is transmitted from BCM to power window main switch, power window subswitch.
- Keyless power window down signal

The signal mentioned below is transmitted from power window main switch to power window sub-switch.
- Passenger side door window operation signal
- Power window control by key cylinder switch signal
- Power window lock switch signal
- Retained power operation signal

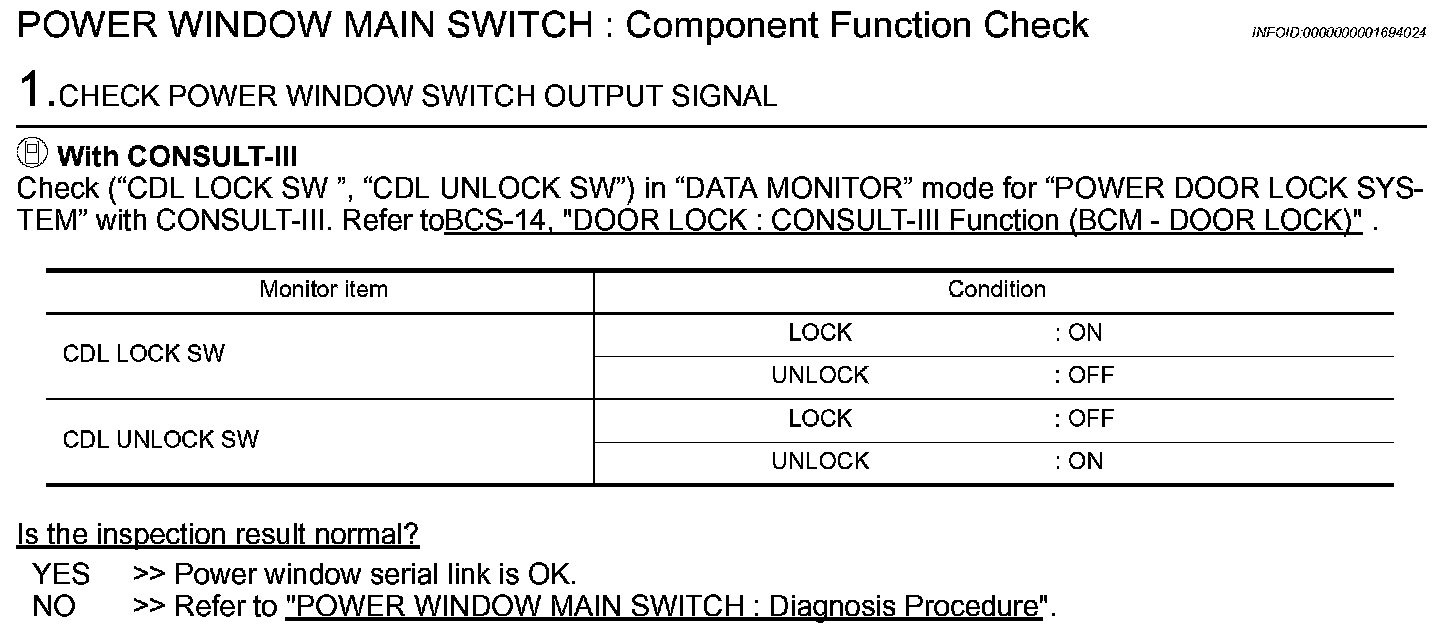

POWER WINDOW MAIN SWITCH : Component Function Check

Step 1:

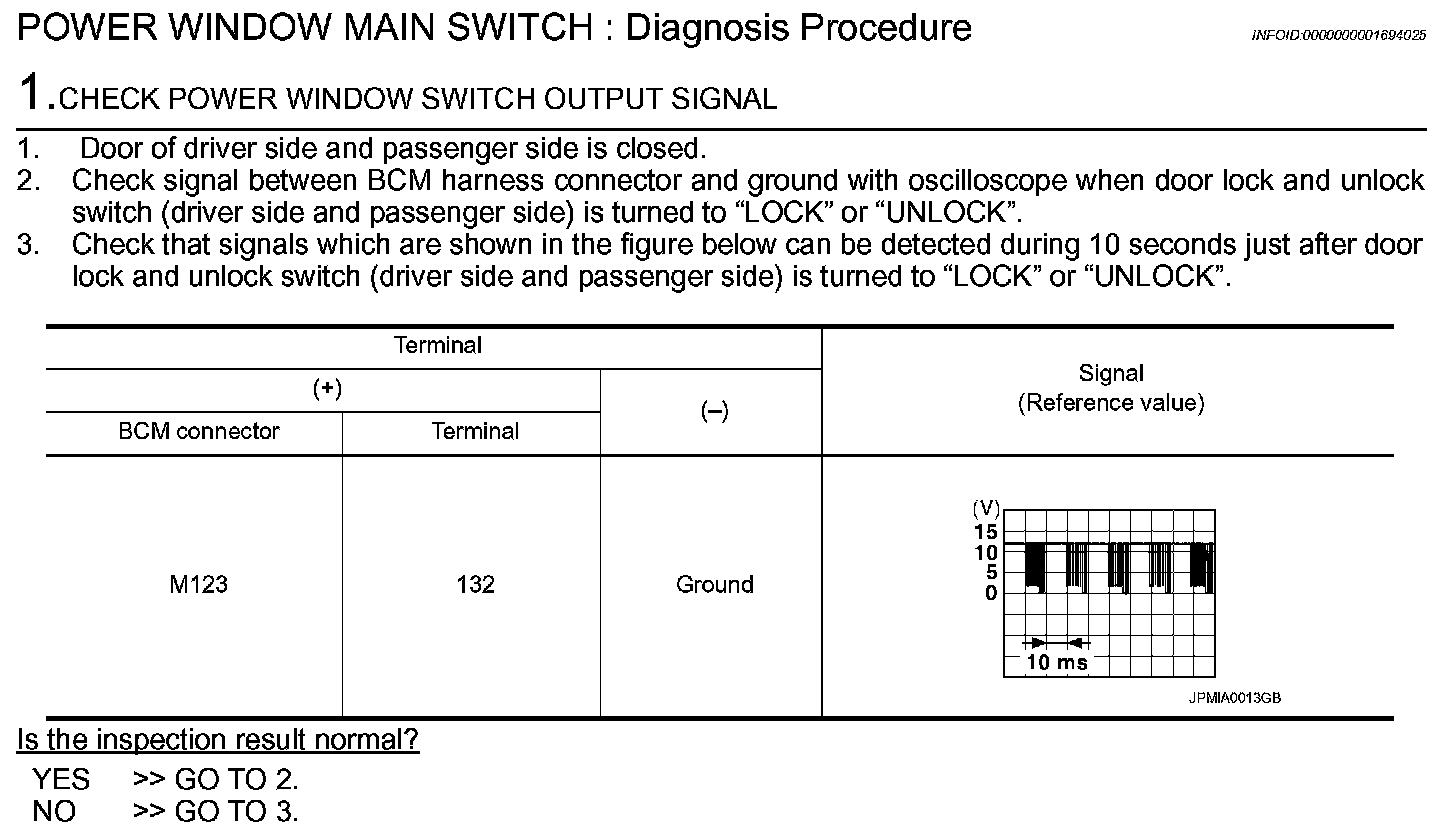

POWER WINDOW MAIN SWITCH : Diagnosis Procedure

Step 1:

Step 2-4:
