Power Window Sub-Switch
Power Window Sub-Switch
POWER WINDOW SUB-SWITCH
Reference Value
TERMINAL LAYOUT

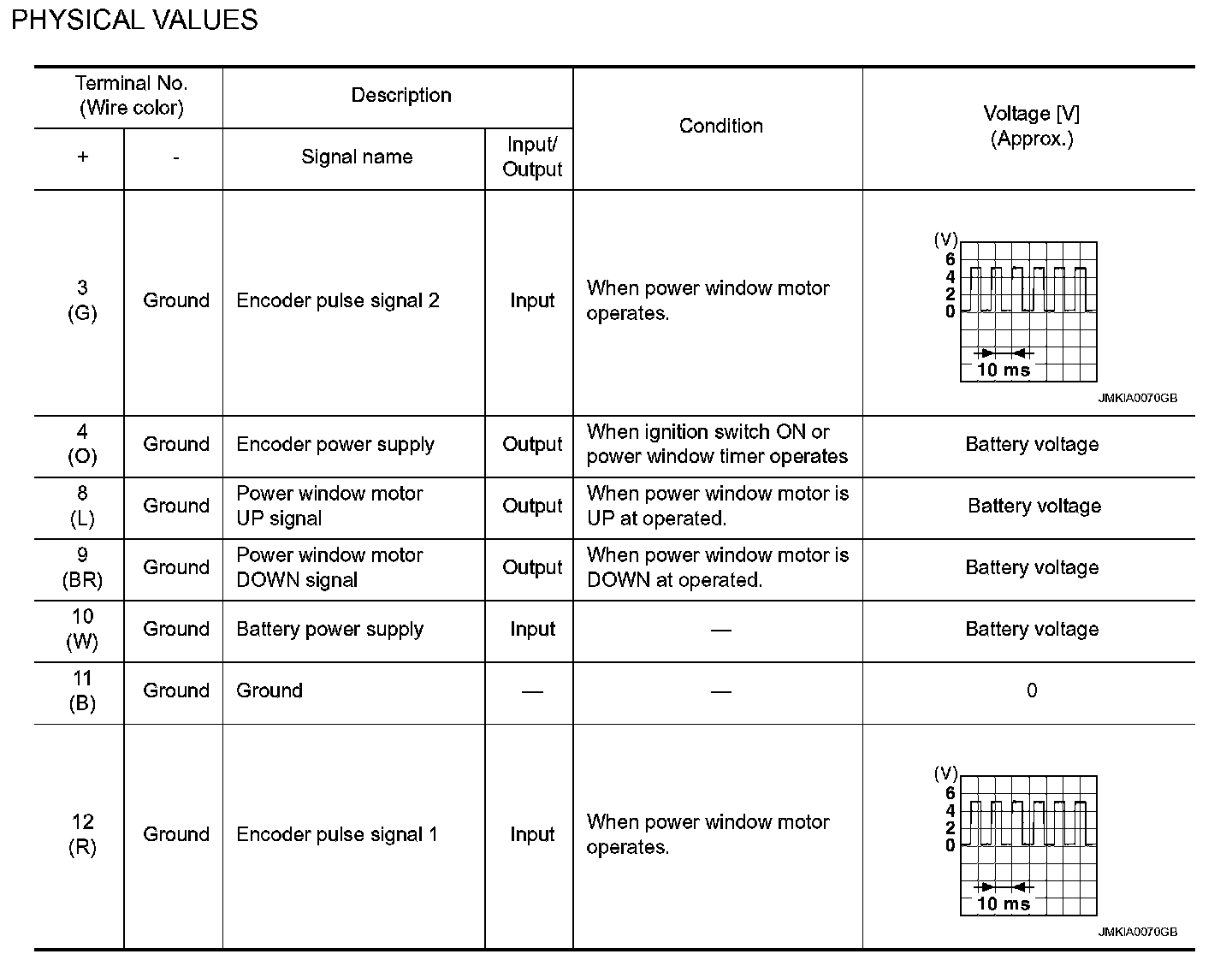

PHYSICAL VALUES
Terminal And Reference Values (Part 1):
Terminal And Reference Values (Part 2):
