P1715
DTC P1715 INPUT SPEED SENSOR (TURBINE REVOLUTION SENSOR)Description
ECM receives turbine revolution sensor signal from TCM through CAN communication line. ECM uses this signal for engine control.

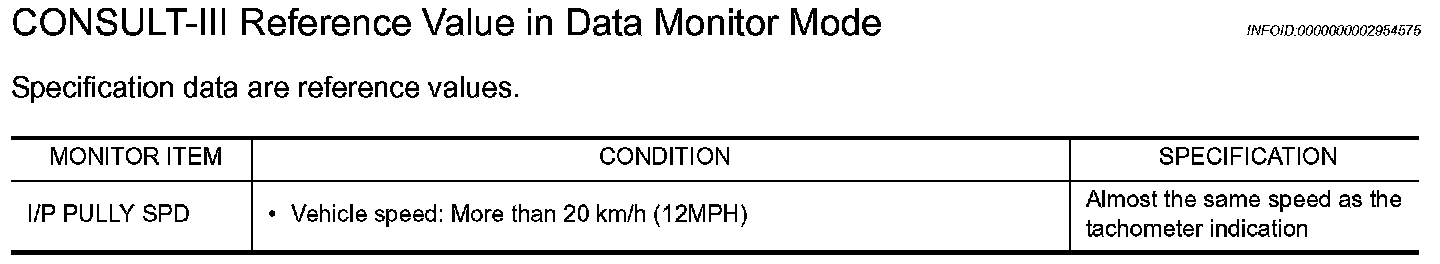

CONSULT-III Reference Value in Data Monitor Mode
On Board Diagnosis Logic
NOTE:
- If DTC P1715 is displayed with DTC U1000, U1001 first perform the trouble diagnosis for DTC U1000, U1001. Refer to EC-147. U1000
- If DTC P1715 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to EC-149. U1010
- If DTC P1715 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to EC-426. P0605
- If DTC P1715 is displayed with DTC P0335, first perform the trouble diagnosis for DTC P0335. Refer to EC-322. P0335
- If DTC P1715 is displayed with DTC P0340, P0345 first perform the trouble diagnosis for DTC P0340, P0345. Refer to EC-327. P0340
The MIL will not lights up for this diagnosis.
Diagnosis Procedure
