U1247

U1247 REAR DISP CONN

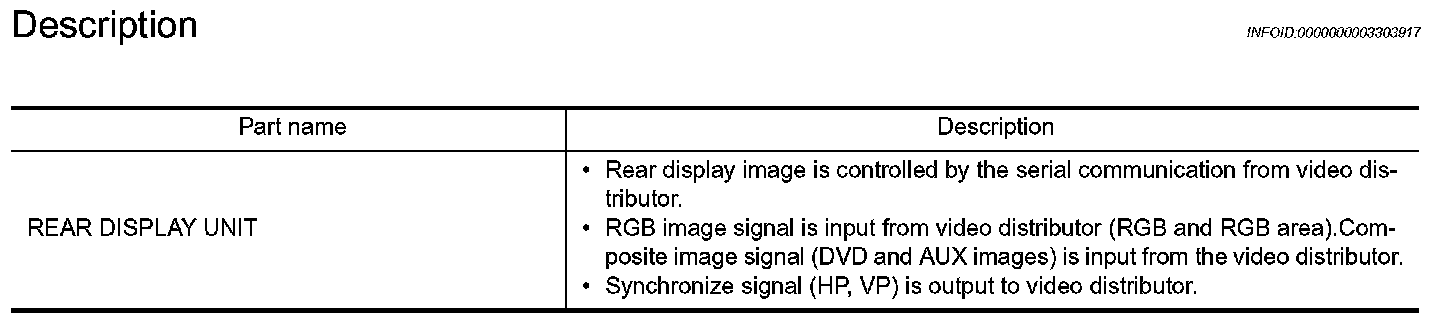

Description






DTC Logic

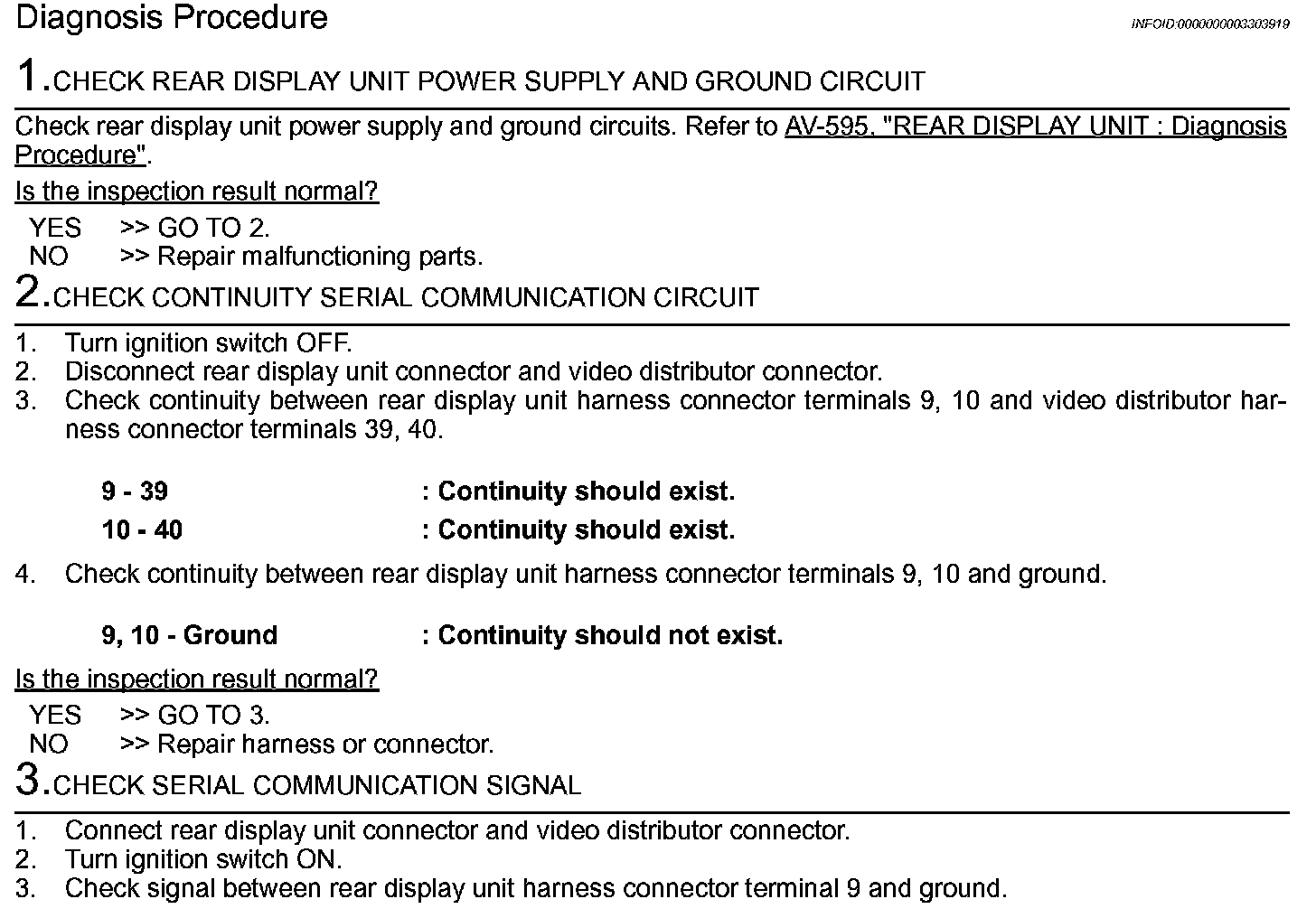

Diagnosis Procedure

Step 1-3:




Step 3 (Continued)-4:
