Pinout Values and Diagnostic Parameters

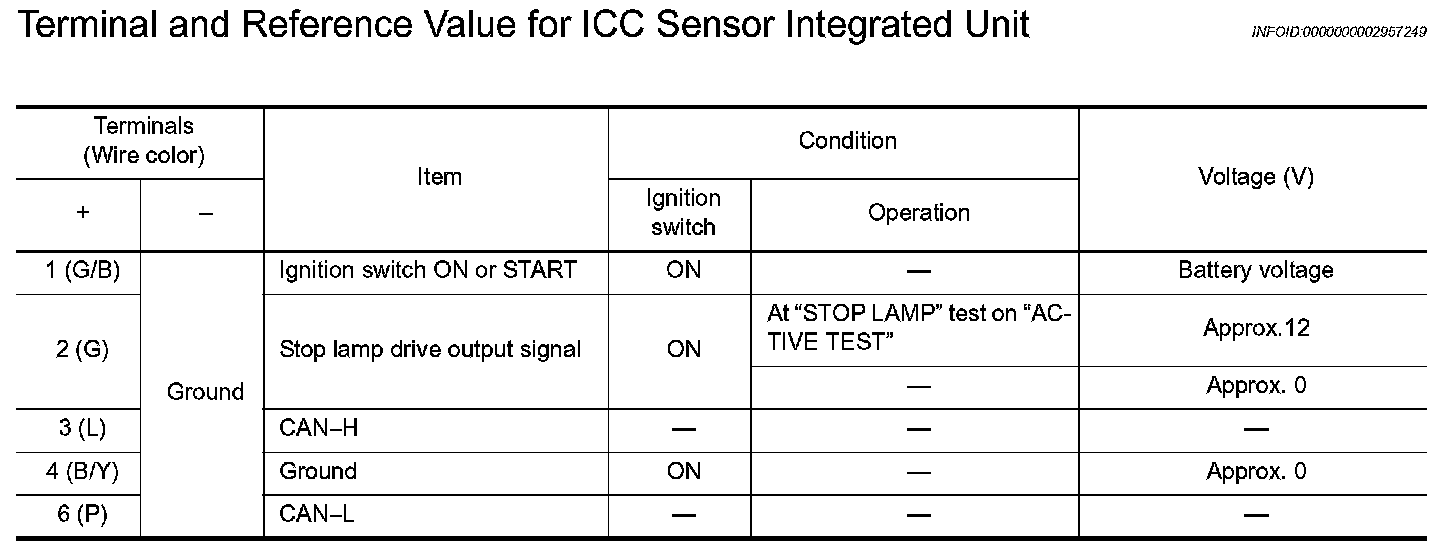

Terminal And Reference Value For ICC Sensor Integrated Unit:
